Table 4-6 Pins of the ALMI/O interface
Front View Pin Usage
18 24 3567
1
Input for the digital parameter
2 Grounding end
3 Input for the digital parameter
4 Input for the digital parameter
5 Grounding end
6 Grounding end
7 Positive output for the digital
parameter
8 Negative output for the digital
parameter
4.5 CF Card and DIP Switch
A board has a set of DIP switches and a hot-swappable CF card.
CF Card and DIP Switch Locations
Figure 4-3 shows the locations of the CF card and DIP switches on AND1CXPA/AND1CXPB.

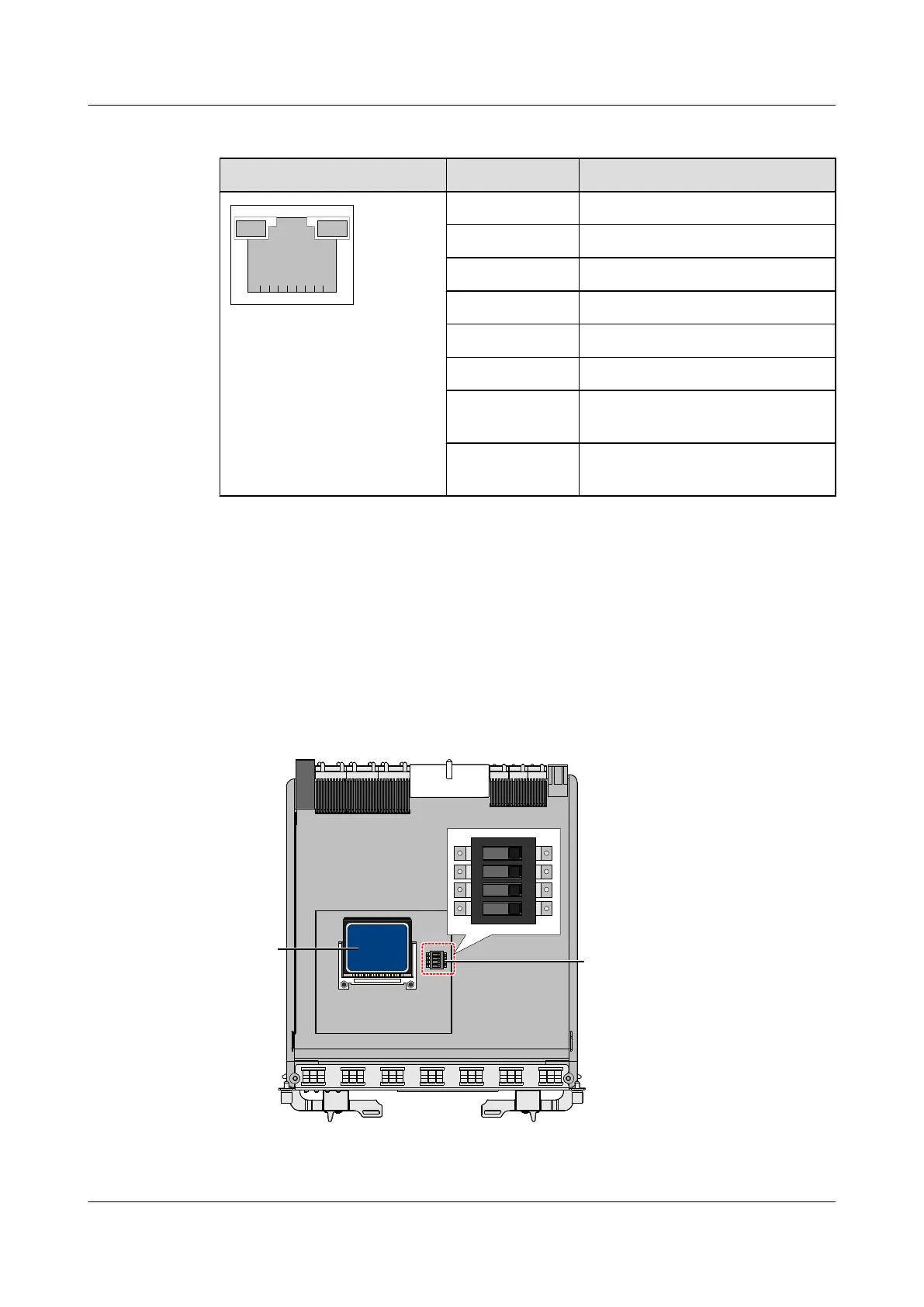

Figure 4-3 Locations of the CF card and DIP switches on AND1CXPA/AND1CXPB.
CF Card
DIP Switch
O
N
D
I
P
1
2
3
4
ATN 950B Multi-service Access Equipment
Hardware Description
4 AND1CXPA/AND1CXPB - System Control, Cross-
connect, and Multi-protocol Process Unit
