Power Supply Module
This module provides the DC power of the following specifications to each module on the EM8F.
l 3.3 V
l 3.0 V
l 2.5 V
l 1.8 V
l 1.2 V
5.4.4 Front Panel
On the front panel of the AND1EM8F, there are indicators and interfaces.
Appearance of the Front Panel
Figure 5-8 shows the appearance of the front panel of the AND1EM8F.

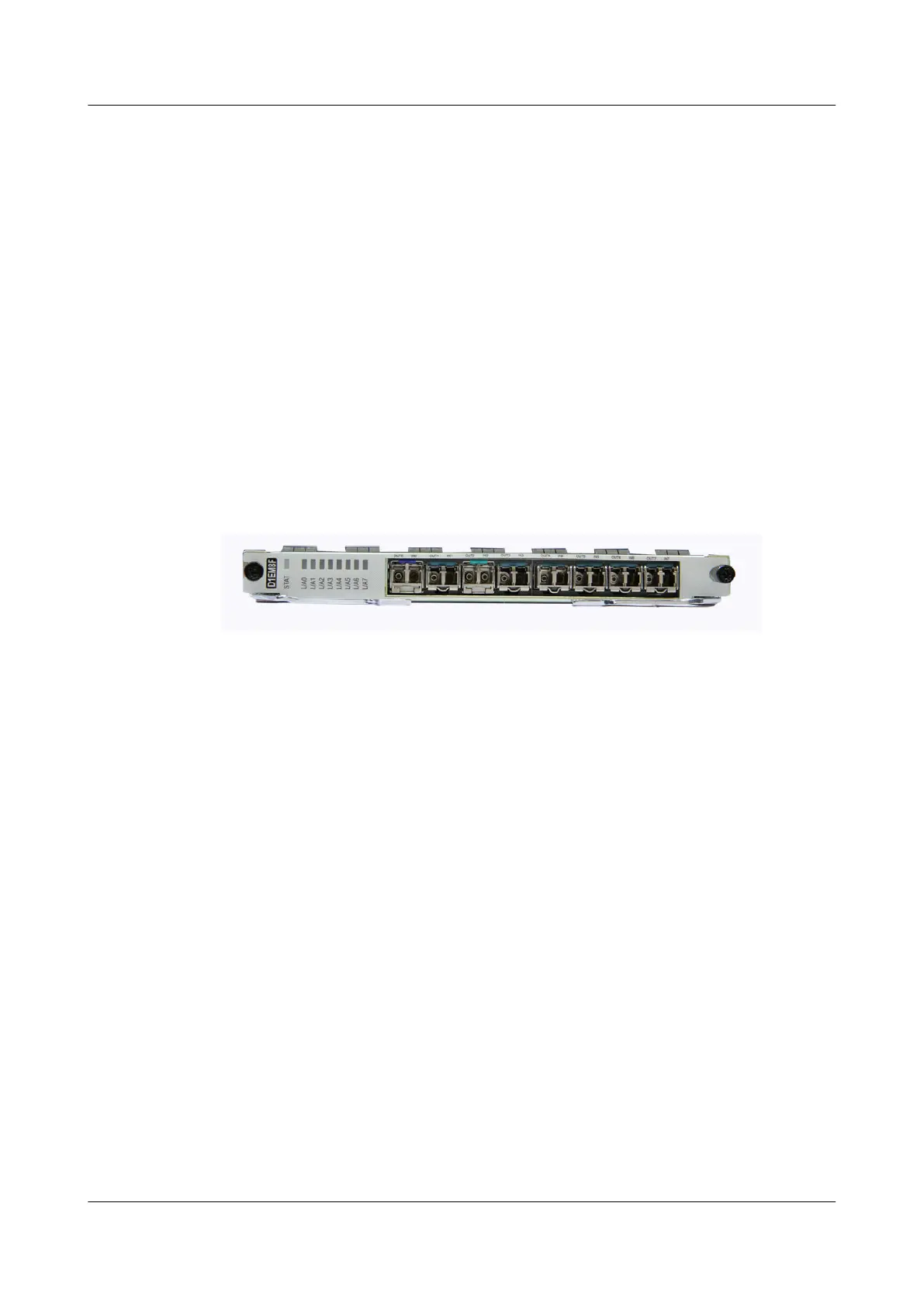

Figure 5-8 Front panel of the AND1EM8F
Indicator
The following indicators are present on the front panel of the AND1EM8F:
l STAT indicator, red, green, or orange, which indicates the working status
l L/A0 to L/A7 indicators, green or orange, which indicate the port connection status and
data transmit/receive status
For details on meanings of indicators, see 11 Indicators.
Interface
Eight SFP interfaces are present on the EM8F. Table 5-14 lists the types and usage of the
interfaces on the EM8F.
