6. Keep cables far away from heat sources such as radiators and heat vents. If
unavoidable, take heat resistant measures.
7. Keep cables far away from operating components such as fan blades and do
not bind cables to an airow path of fans.
8. Prevent rotating components such as doors from squeezing or pulling cables.
Cable Binding Requirements
Bind cables reliably along the route and ensure that the binding interval meets the
requirements in Table 4-7.
Table 4-7 Cable binding interval
Cable Diameter (mm) Binding Interval (mm)
< 10 150
10–30 200
> 30 300
1. Bind cables with a moderate force and ensure that cables are not misshapen
to prevent compromising the signal quality.
2. After binding cables, cut
o the excess parts of cable ties and trim away any
burrs, as shown in Figure 4-53.

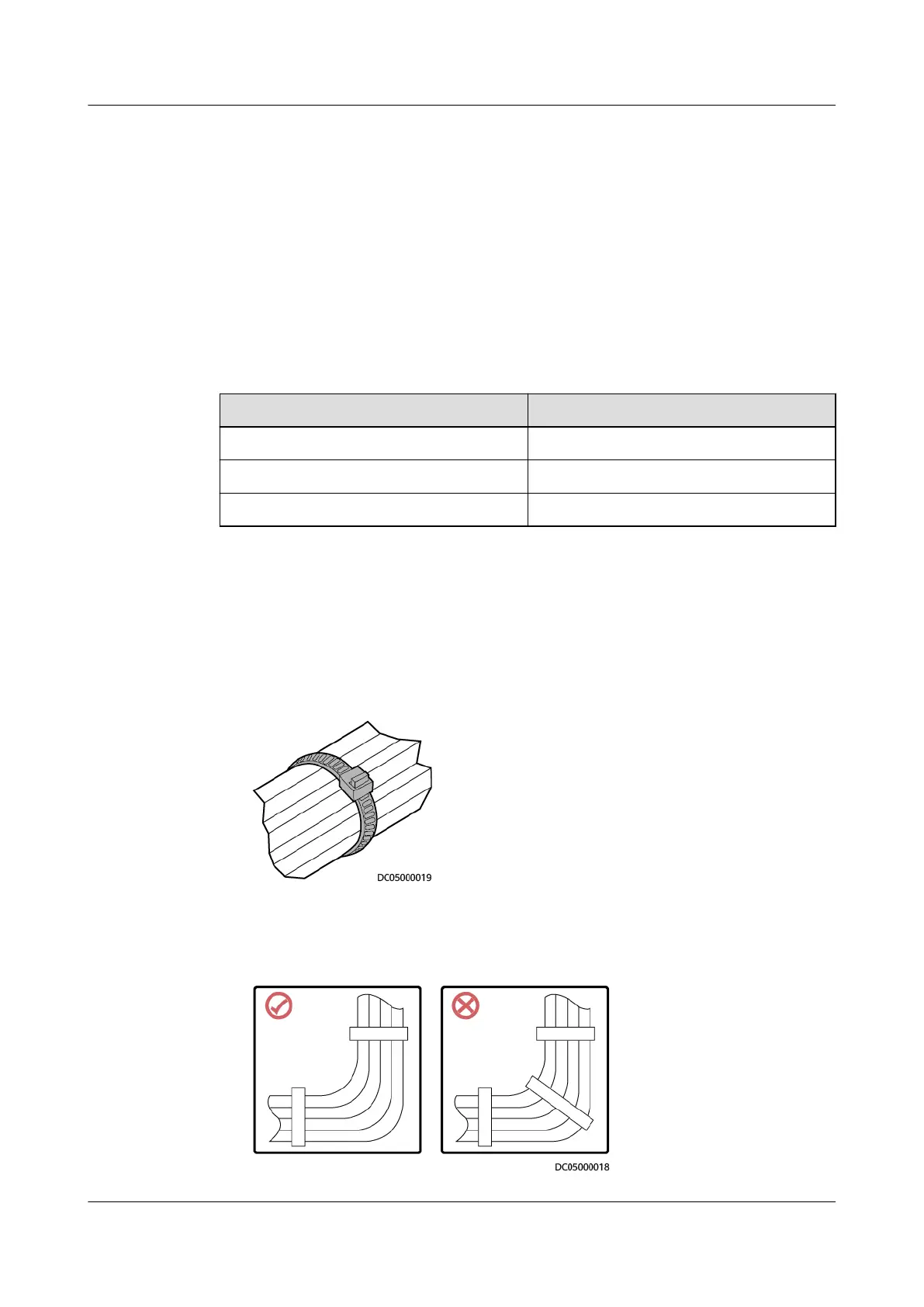

Figure 4-53 Cutting o the excess part of a cable tie
3. Do not use cable ties at a place where the cables are bent. Otherwise, the
cable cores may break due to strong stress, as shown in Figure 4-54.
Figure 4-54 Binding cables in a bending area
FusionModule500 Smart Mini Data Center
User Manual (Philippines, FusionModule500-
SU61A12S) 4 Installation Guide
Issue 02 (2021-06-30) Copyright © Huawei Technologies Co., Ltd. 92
