Step 3 Set device addresses for cabinet electronic clasp locks.
● A cabinet electronic clasp lock is installed at the front and rear doors of the
cabinet respectively. The address for the cabinet electronic clasp lock on the
front door is an odd number, and that for the cabinet electronic clasp lock on
the rear door is an even number.
● Set a device address for a cabinet electronic clasp lock by operating the toggle
switch on the cabinet electronic clasp lock. Toggle switches 1 to 6 specify the
device address in binary mode. ON indicates 1, and OFF indicates 0.

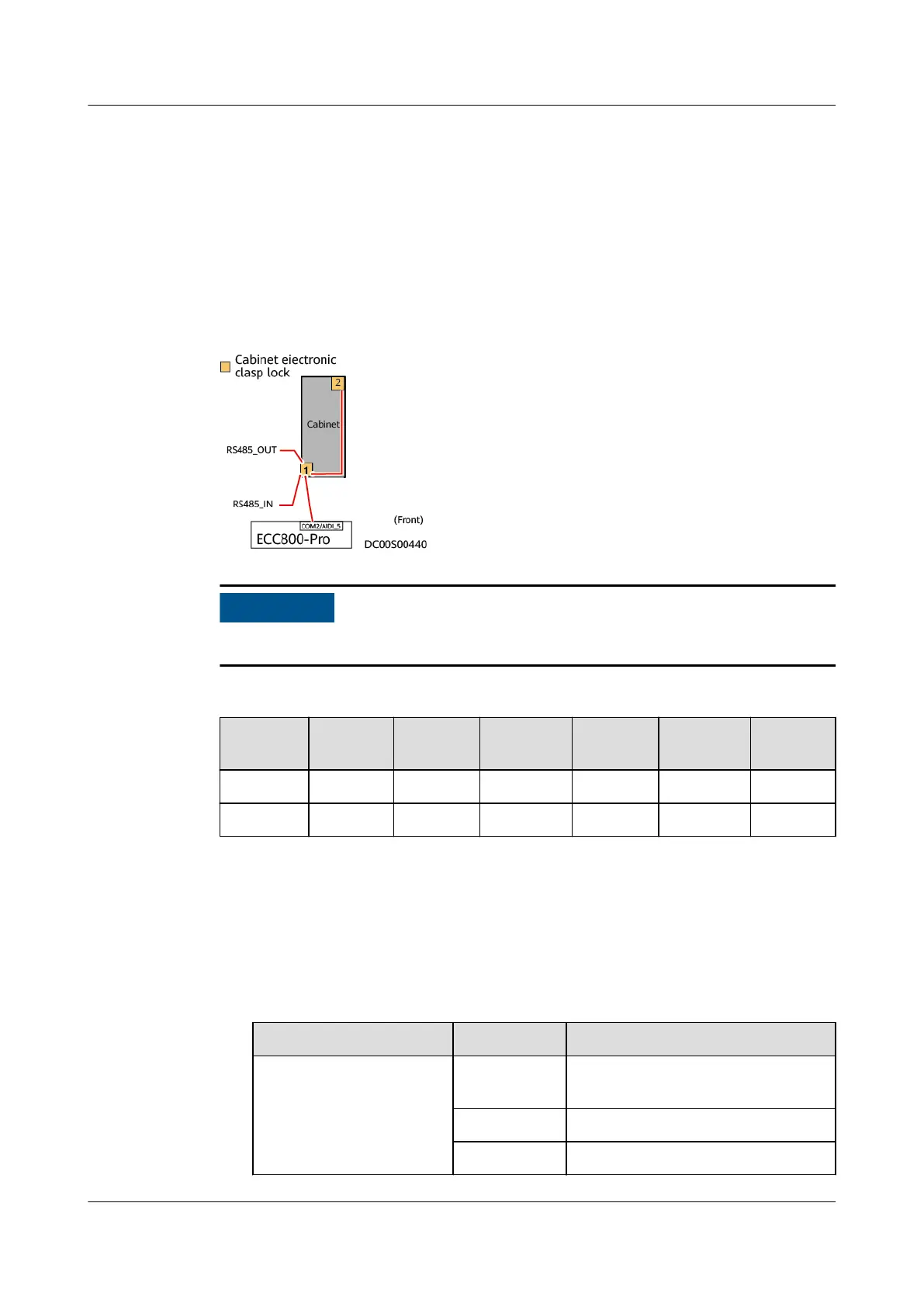

Figure 5-7 Toggle switch addresses of the cabinet electronic locks
The number indicates the DIP switch setting of the electronic clasp lock.
Table 5-12 Setting device addresses
Address
Toggle
Switch 1
Toggle
Switch 2
Toggle
Switch 3
Toggle
Switch 4
Toggle
Switch 5
Toggle
Switch 6
1 ON OFF OFF OFF OFF OFF
2 OFF ON OFF OFF OFF OFF
Step 4 Add the cabinet electronic clasp locks.
1. Log in to the ECC800-Pro WebUI as an administrator.
2. Create a cabinet view in Smart Module View on the home page.
3. Add a cabinet electronic clasp lock.
Table 5-13 Adding a cabinet electronic clasp lock
Path
Parameter Setting
Choose System Settings
> Device Management
and click Add Device.
Device
Attribute
Cabinet Electronic Clasp Lock
Device Type Cabinet Electronic Clasp Lock
Connect To ECC800-Pro
FusionModule500 Smart Mini Data Center
User Manual (Philippines, FusionModule500-
SU61A12S) 5 Power-On Commissioning
