Table 3-14 ECC800-Pro 4G parameters
Item Specications
3G/4G operation
frequency
LTE (FDD): BAND1, BAND2, BAND3, BAND4, BAND5,
BAND7, BAND8, BAND20
DC-HSPA+/HSPA+/HSPA/UMTS: 850/900/1900/2100
MHz
GSM/GPRS/EDGE: 850/900/1800/1900 MHz
3G/4G EIRP (max.) 23 dBm
Communications Port

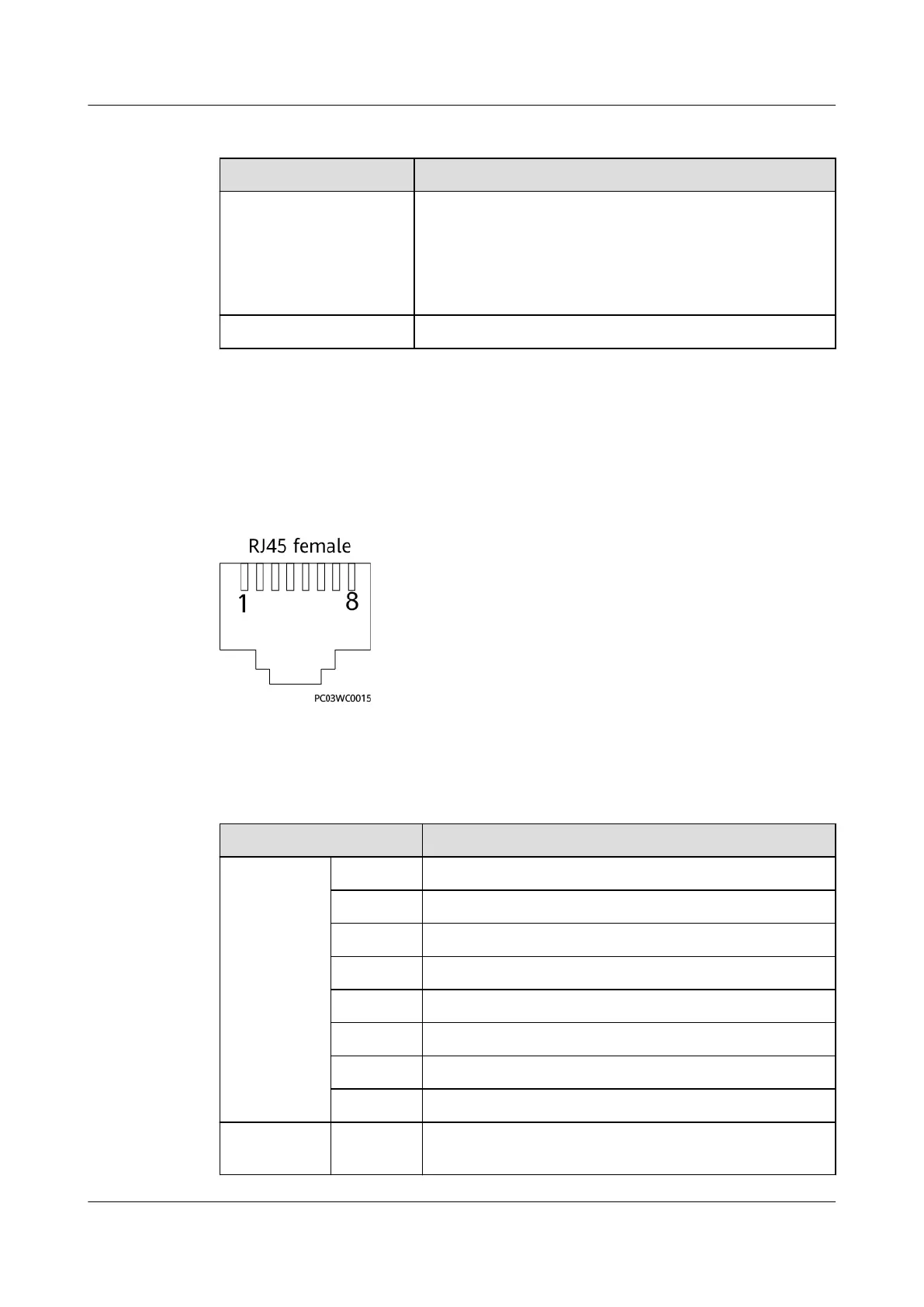

The ECC800-Pro provides the following communications ports. Figure 3-11 shows
the pins of the RJ45 port.
Figure 3-11 RJ45 port pins
There are four GE ports, that is, two WAN ports (WAN1 and WAN2) and two LAN
ports (LAN1/POE and LAN2/POE).
Table 3-15 GE port pin
denitions
Item
Description
Pin
sequence
Pin1 GE1+
Pin2 GE1-
Pin3 GE2+
Pin4 GE3+
Pin5 GE3-
Pin6 GE2-
Pin7 GE4+
Pin8 GE4-
Indicator Green
indicator
Linked, steady on
FusionModule500 Smart Mini Data Center
User Manual (Philippines, FusionModule500-
SU61A12S) 3 System Architecture
Issue 02 (2021-06-30) Copyright © Huawei Technologies Co., Ltd. 33
