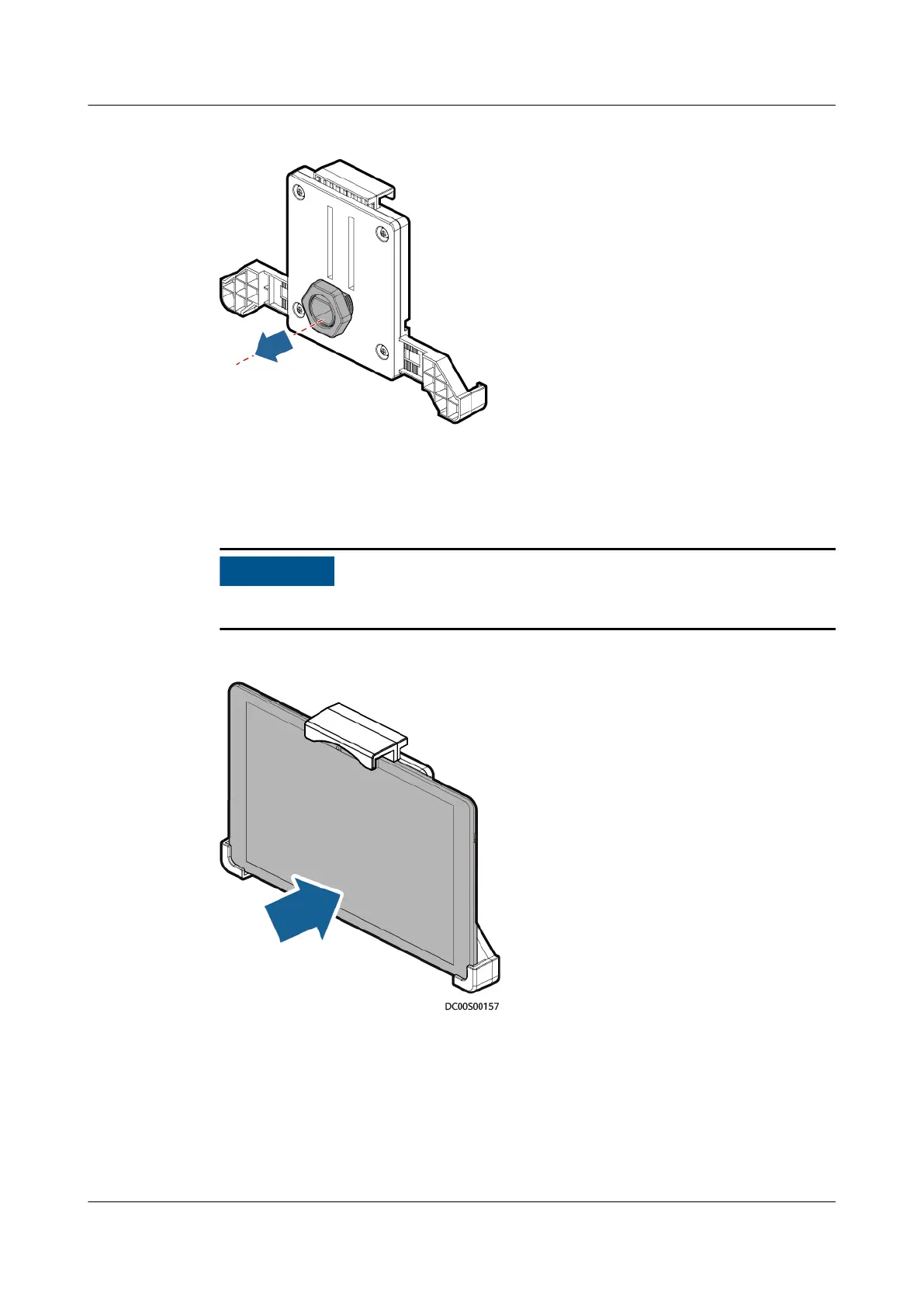

Figure 4-21 Removing the nut
Step 3 Route the PAD power cable to the cable hole in the PAD support and connect the
cable to the PAD.
Step 4 Adjust the feet above the PAD support and clamp the PAD to the PAD support.
Ensure that the PAD is installed securely and reliably.
Figure 4-22 Installing a PAD
Step 5 Connect the cable from the USB port on the ECC800-Pro to the charging port on
the PAD.
FusionModule500 Smart Mini Data Center
User Manual (Philippines, FusionModule500-
SU61A12S) 4 Installation Guide
Issue 02 (2021-06-30) Copyright © Huawei Technologies Co., Ltd. 74
