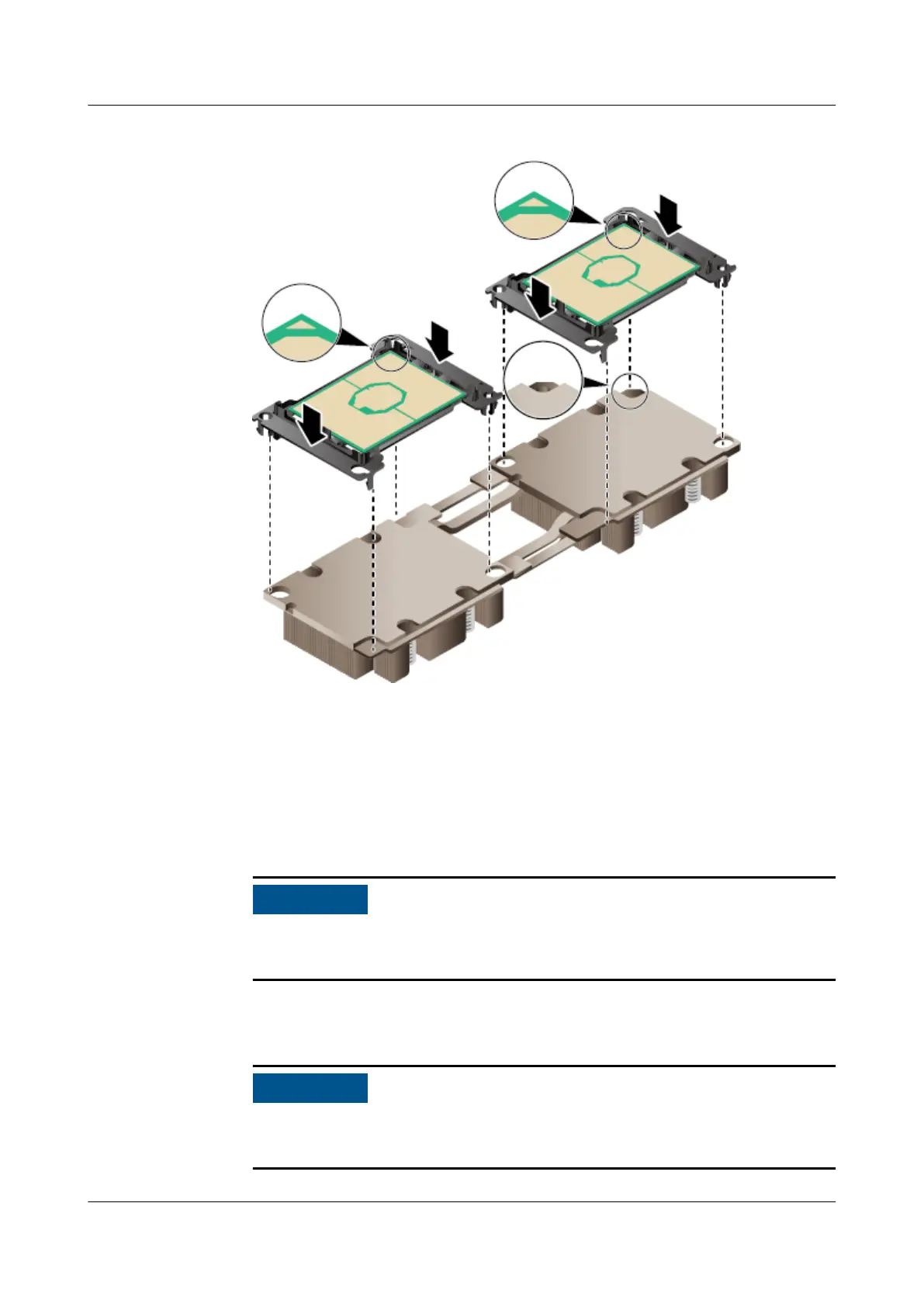

Figure 8-39 Installing the processor carrier
2. Place the assembled processor and heat sink upside down on the desk, and
check that the processor carrier and the heat sink are
rmly secured. If the
processor carrier is not rmly buckled with the heat sink, gently press the
processor carrier to secure it.
Step 10 Install the processor and conjoined heat sink.
1. Remove the processor socket cover.
When removing the protective cover, pull it out vertically to prevent damage
to the pins on the processor socket.
2. Shine a light at various angles onto the processor socket to check for twisted
pins, foreign matter, and pad damage.
If bent pins or foreign matters are found or the bonding pad is damaged, stop
the operation and contact technical support.
FusionServer Pro XH321 V5 Server Node
Maintenance and Service Guide 8 Parts Replacement
Issue 17 (2021-03-09) Copyright © Huawei Technologies Co., Ltd. 73
