Huawei OceanStor V5 Series User Manual

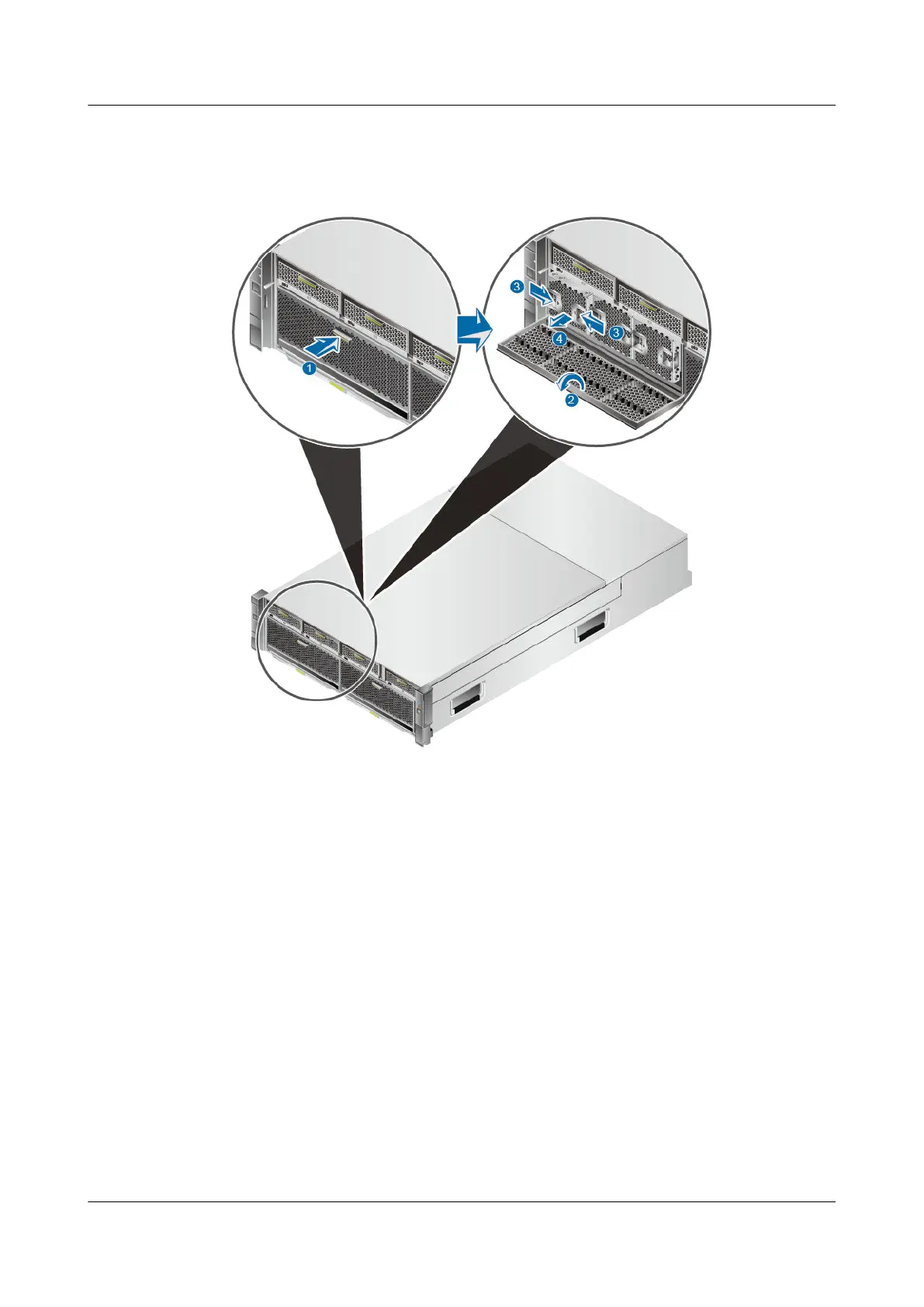

Figure 6-78 Removing a fan module
Step 4 Put the removed fan module into an ESD bag.
Step 5 Take the spare part out of its ESD bag.
Step 6 Insert the spare part into the empty slot until it clicks into place, as shown in
Figure 6-79.
OceanStor V5 Series
Parts Replacement 6 Replacing CRUs
Issue 15 (2019-12-30) Copyright © Huawei Technologies Co., Ltd. 82

Huawei OceanStor V5 Series Specifications

General

Drive Types	SSD, SAS, NL-SAS
Data Reduction	Deduplication, Compression
Series	OceanStor V5
Category	Storage
Supported Protocols	FC, iSCSI, NFS, CIFS, HTTP
RAID Levels	0, 1, 3, 5, 6, 10, 50
Data Protection	remote replication
Operating System Compatibility	Windows, Linux, VMware, AIX, HP-UX
High Availability	Redundant components, controller failover
Power Supply	Redundant power supplies
Cooling	Redundant fans
