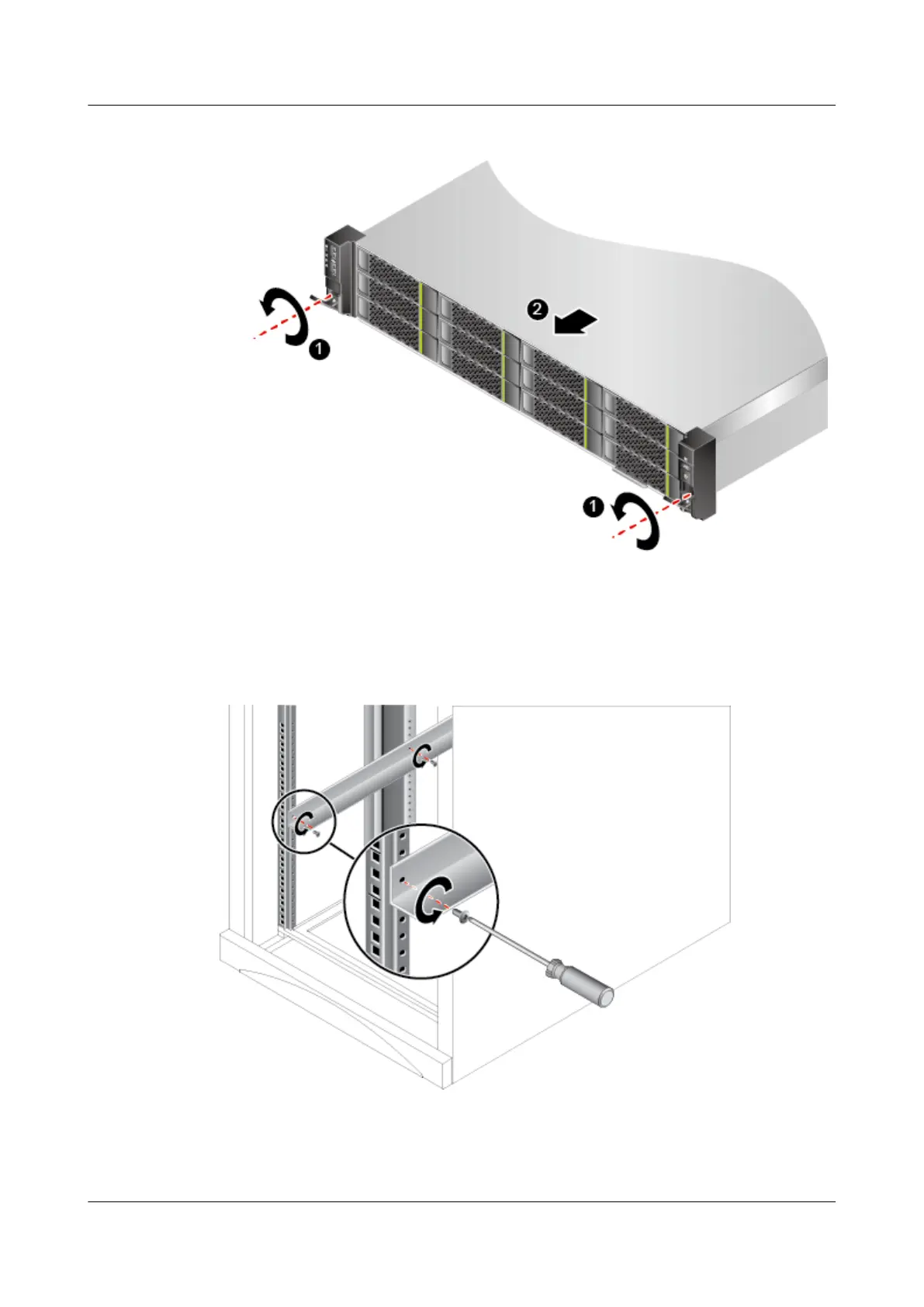

Figure 3-27 Removing the server
2. Pull out the server along the guide rails away from the cabinet. See (2) in Figure 3-27.
3. Place the removed server on an ESD platform.
Step 5 Loosen the screws that secure a guide rail. See Figure 3-28.
Figure 3-28 Removing an L-shaped guide rail
Step 6 Remove the other guide rail on the opposite side in the same way.
----End
