Huawei RH2288 V3 - Page 153

Step 3 Hold down the spring below the power cable using a flat-head screwdriver to eject the power
cable. See Figure 7-13.

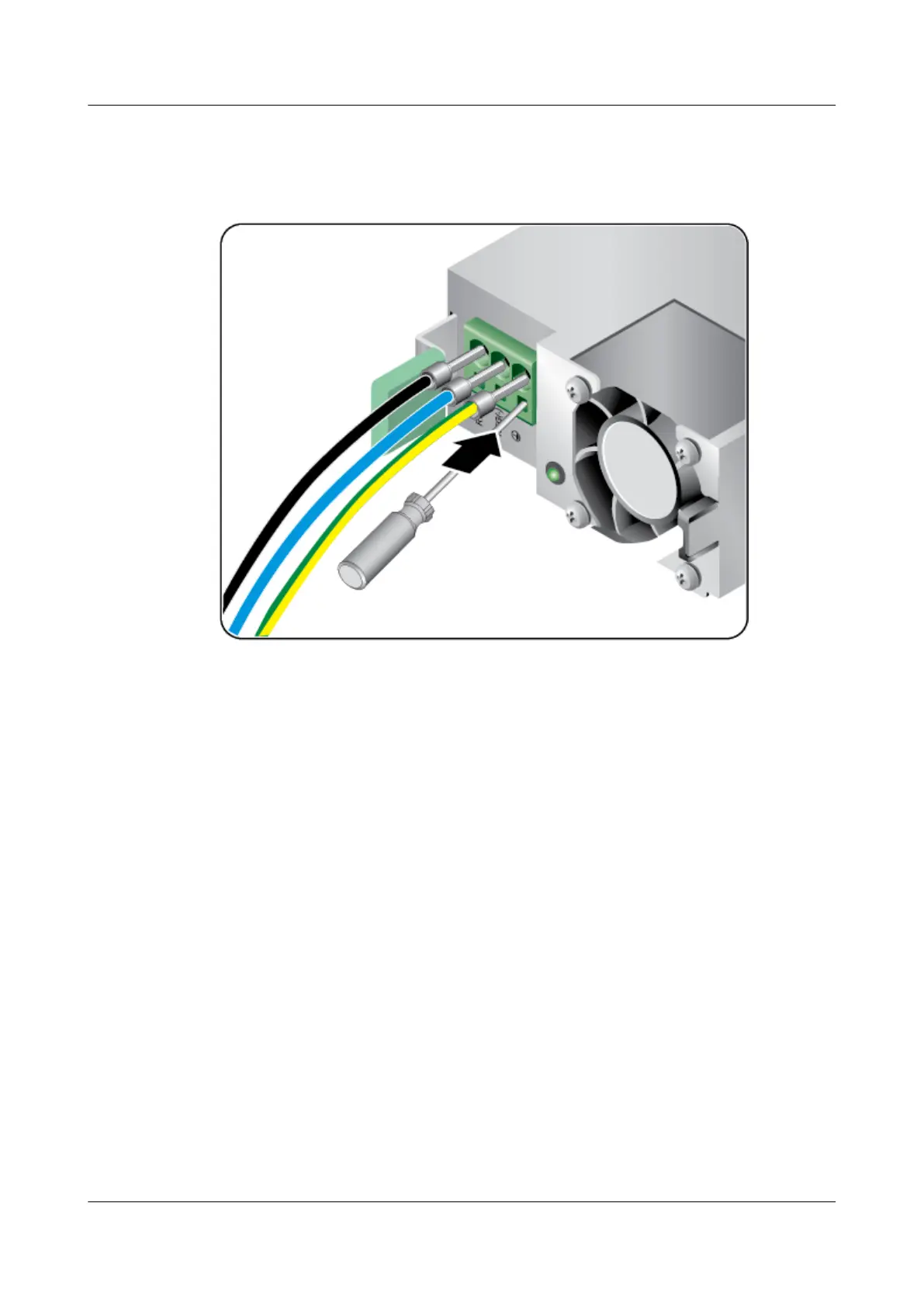

Figure 7-13 Removing power cables
Step 4 Hold down the latch on the PSU, and pull out part of the PSU by holding the handle. See step
(1) in Figure 7-14.
