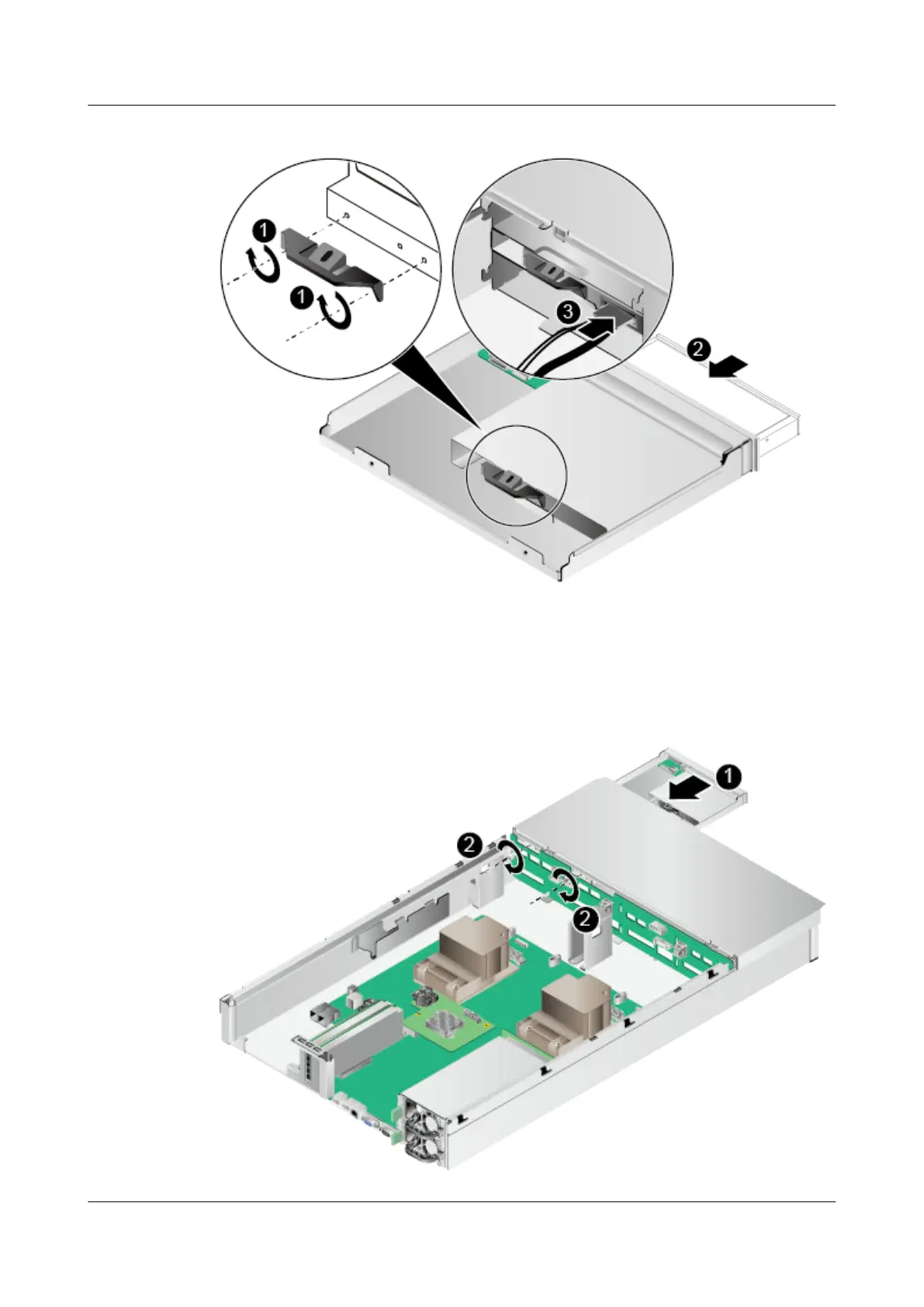

Figure 7-51 Installing the DVD drive on a server with eight 3.5-inch hard disks
Step 5 Insert the DVD drive into its tray. See step (2) in Figure 7-51.
Step 6 Connect cables to the DVD drive. See step (3) in Figure 7-51.
Step 7 Push the DVD drive tray into the chassis. See step (1) in Figure 7-52.
Figure 7-52 Installing the DVD drive tray
RH2288 V3 Server
User Guide
7 Replacing Parts
Issue 32 (2019-03-28) Copyright © Huawei Technologies Co., Ltd. 174
