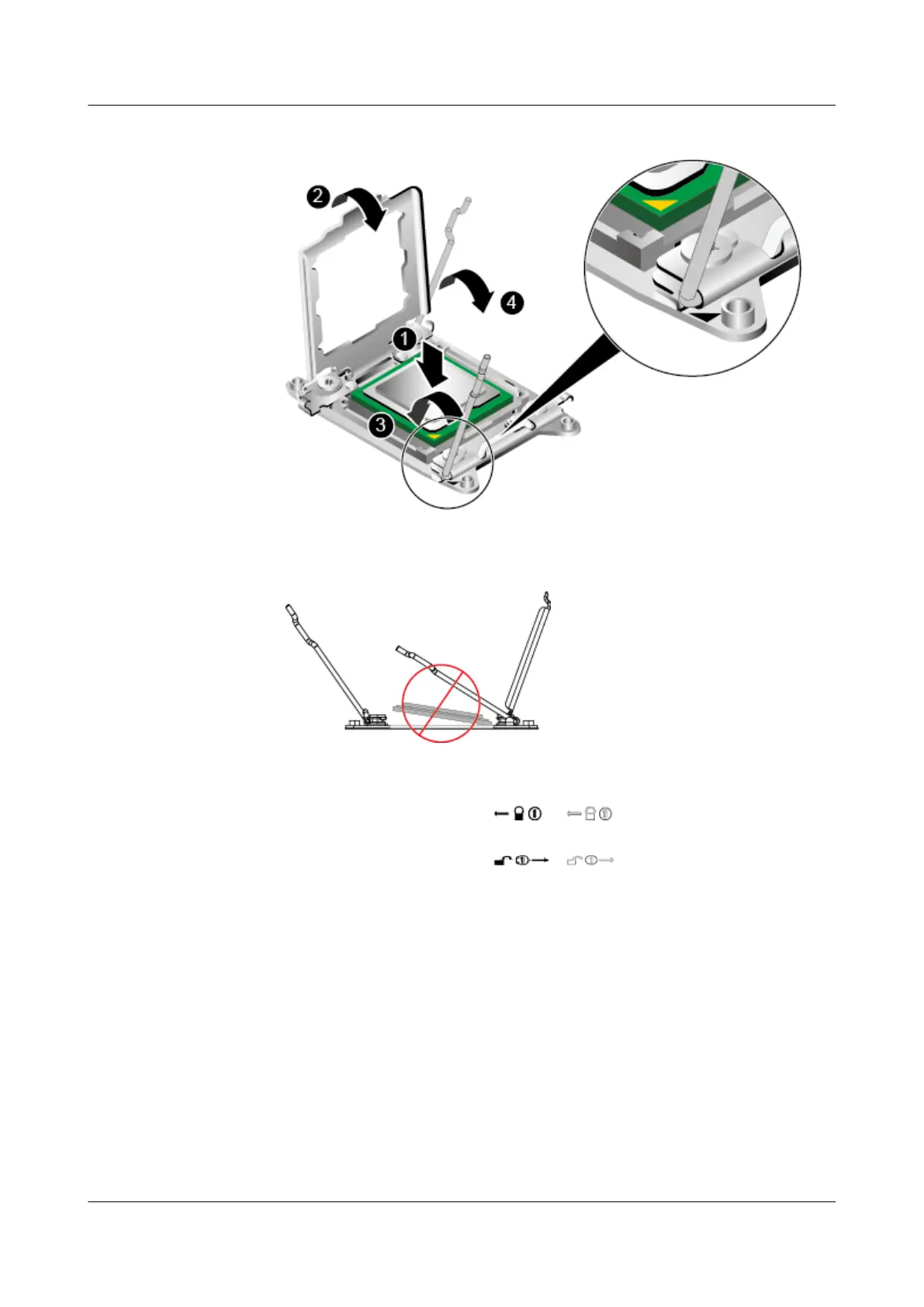

Figure 7-83 Installing a v4 series CPU
Figure 7-84 Wrong way to place a CPU
b. Close the cover that secures the CPU. See step (2) in Figure 7-83.
c. Lower the securing rod near the or label. See step (3) in Figure
7-83.
d. Lower the securing rod near the
or label. See step (4) in Figure
7-83.
Step 10 Align the screws on the heat sink with the fastening studs on the CPU base, and place the heat
sink on the CPU. See step (1) in Figure 7-85.
RH2288 V3 Server
User Guide
7 Replacing Parts
Issue 32 (2019-03-28) Copyright © Huawei Technologies Co., Ltd. 203
