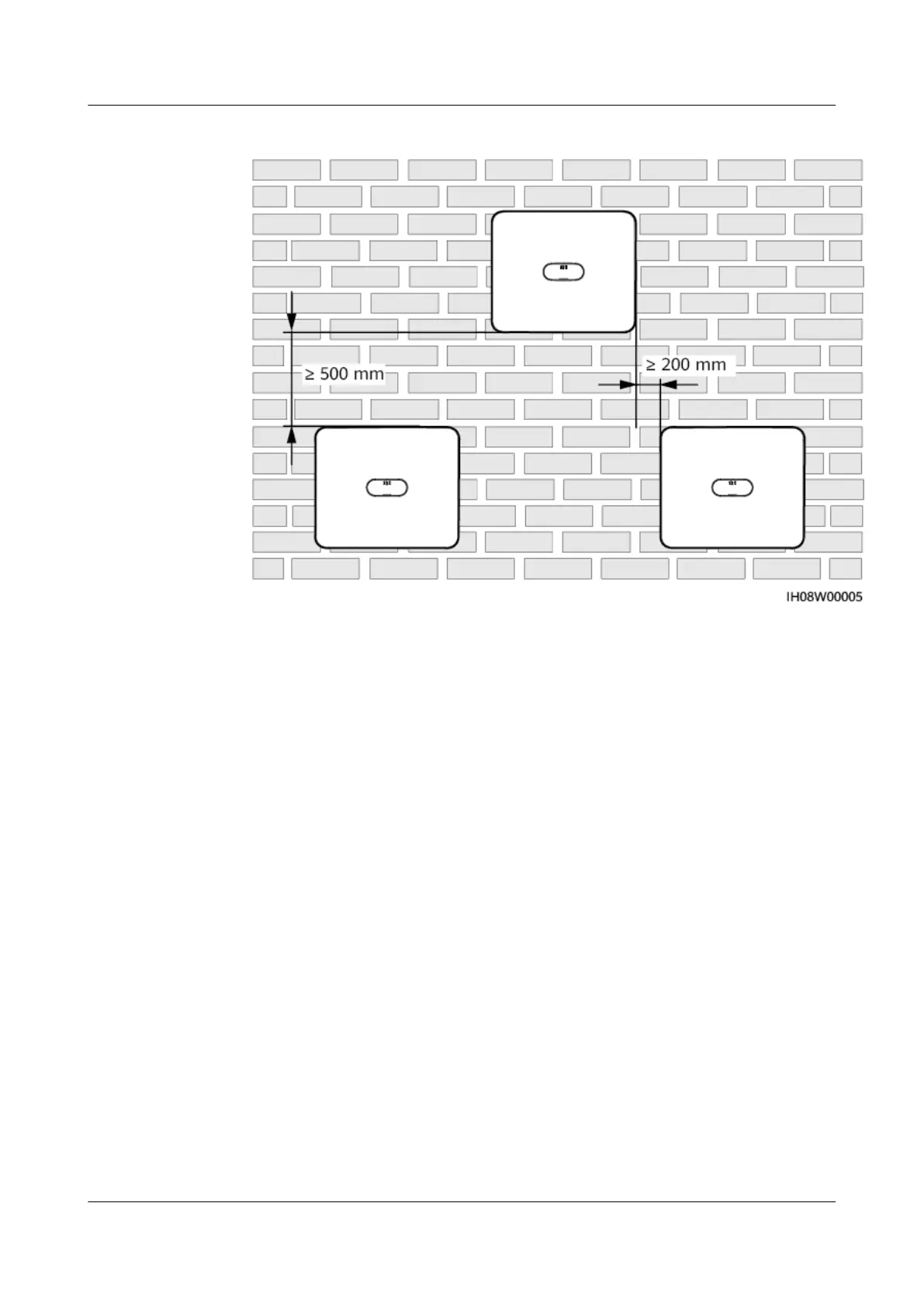

Figure 4-4 Triangle installation mode (recommended)
4.2.3 Angle Requirements
The inverter can be wall-mounted or support-mounted. The installation angle
requirements are as follows:
● Install the inverter vertically or at a maximum back tilt of 15 degrees to
facilitate heat dissipation.
● Do not install the inverter at forward tilted, excessive backward tilted, side
tilted, horizontal, or upside down positions.
SUN2000-(5K-12K)-MAP0 Series
User Manual 4 Installation
