Huawei SUN2000 MAP0 Series - Connecting the Rapid Shutdown Signal Cable

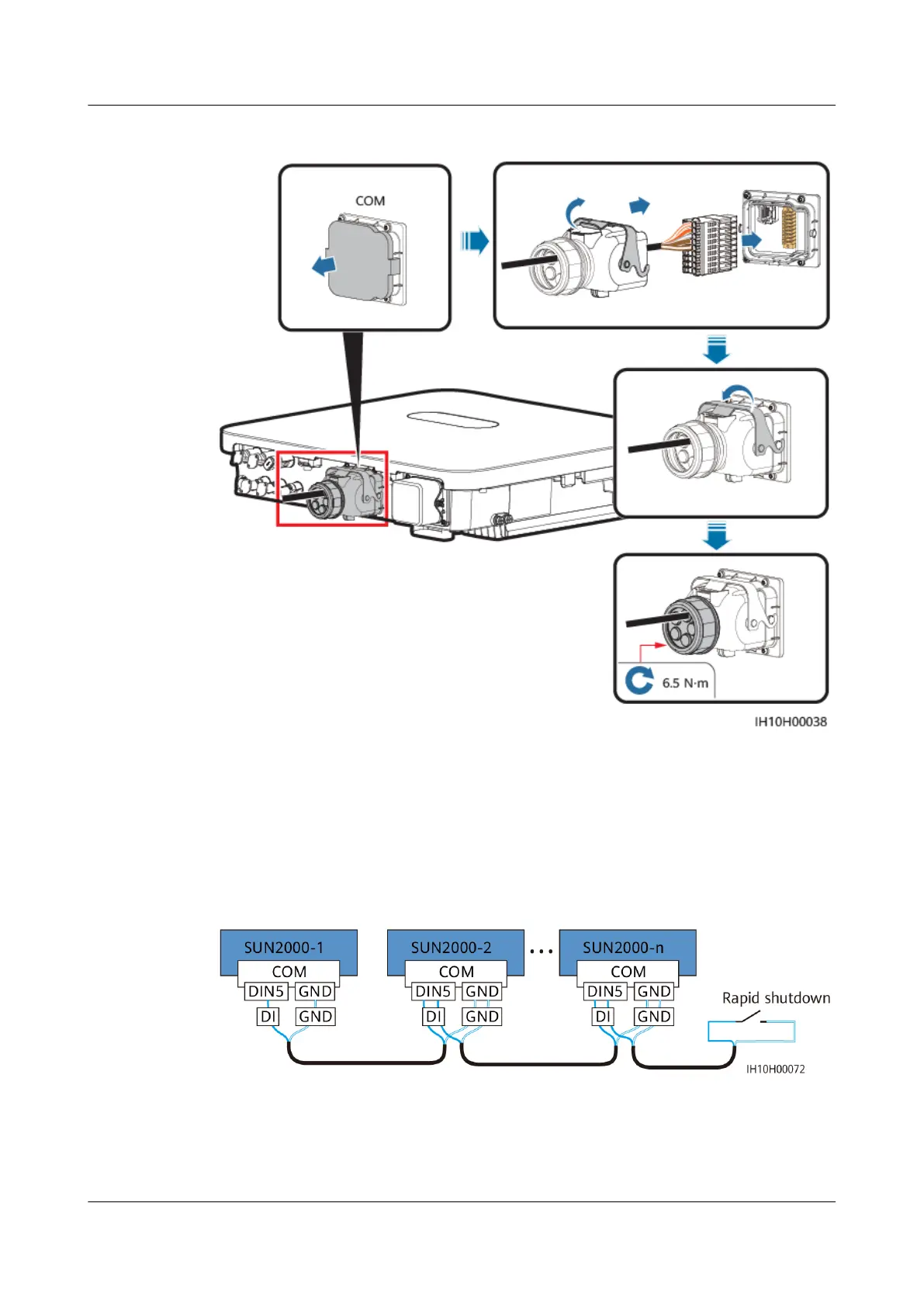

Figure 5-31 Securing the signal cable connector
----End
5.7.5 Connecting the Rapid Shutdown Signal Cable
Cable Connection
Figure 5-32 Connecting cascaded inverters to the rapid shutdown switch
Procedure
Step 1 Connect the signal cable to the signal cable connector.
SUN2000-(5K-12K)-MAP0 Series
User Manual 5 Electrical Connections
Issue 01 (2024-05-13) Copyright © Huawei Digital Power Technologies Co., Ltd. 74
