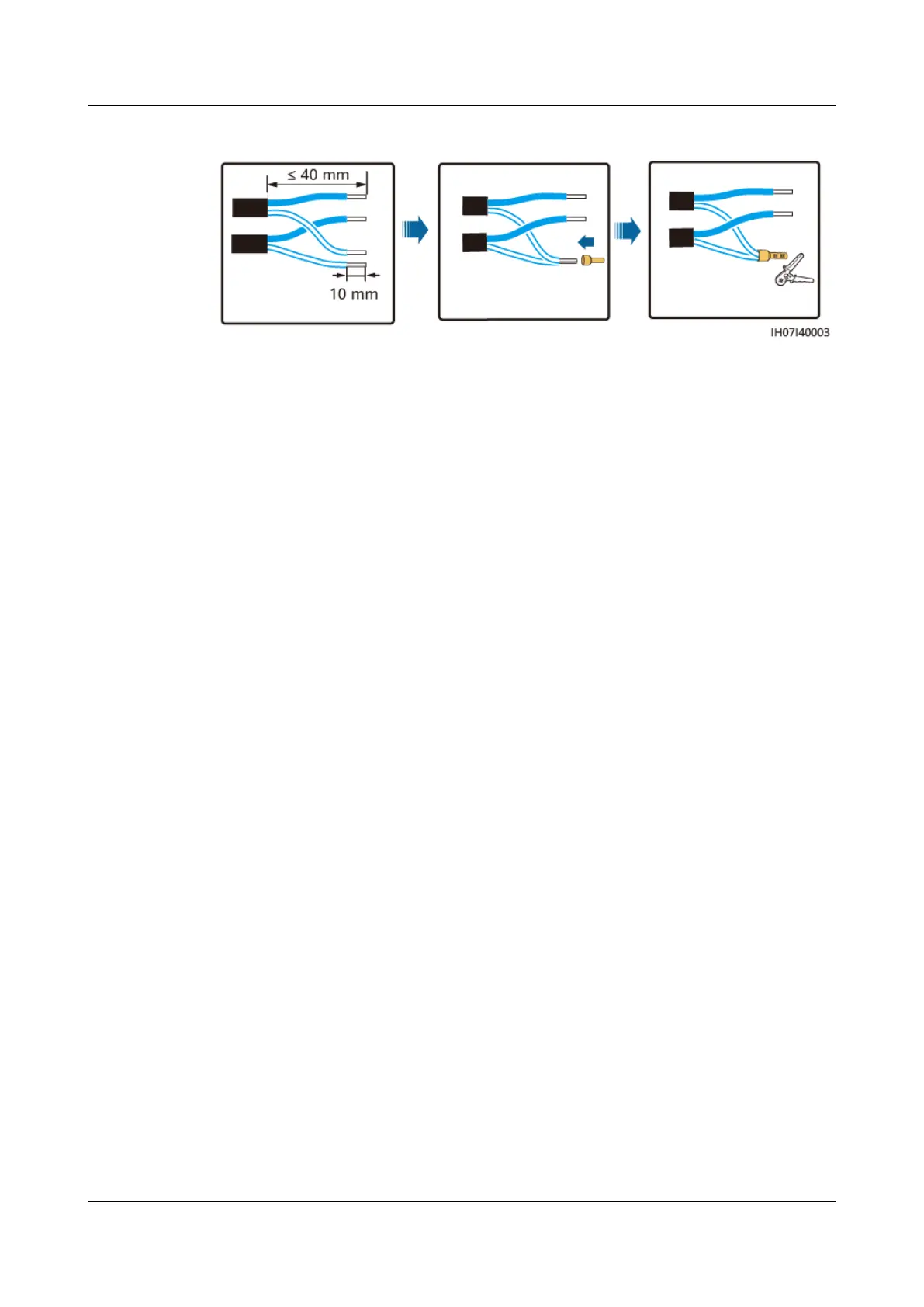

Figure 5-18 Crimping two signal cables
5.7.1 Connecting RS485 Communications Cables (Inverter
Cascading)
Procedure
Step 1 Connect the signal cable to the signal cable terminal.
SUN2000-(5K-12K)-MAP0 Series
User Manual 5 Electrical Connections
Issue 01 (2024-05-13) Copyright © Huawei Digital Power Technologies Co., Ltd. 61
