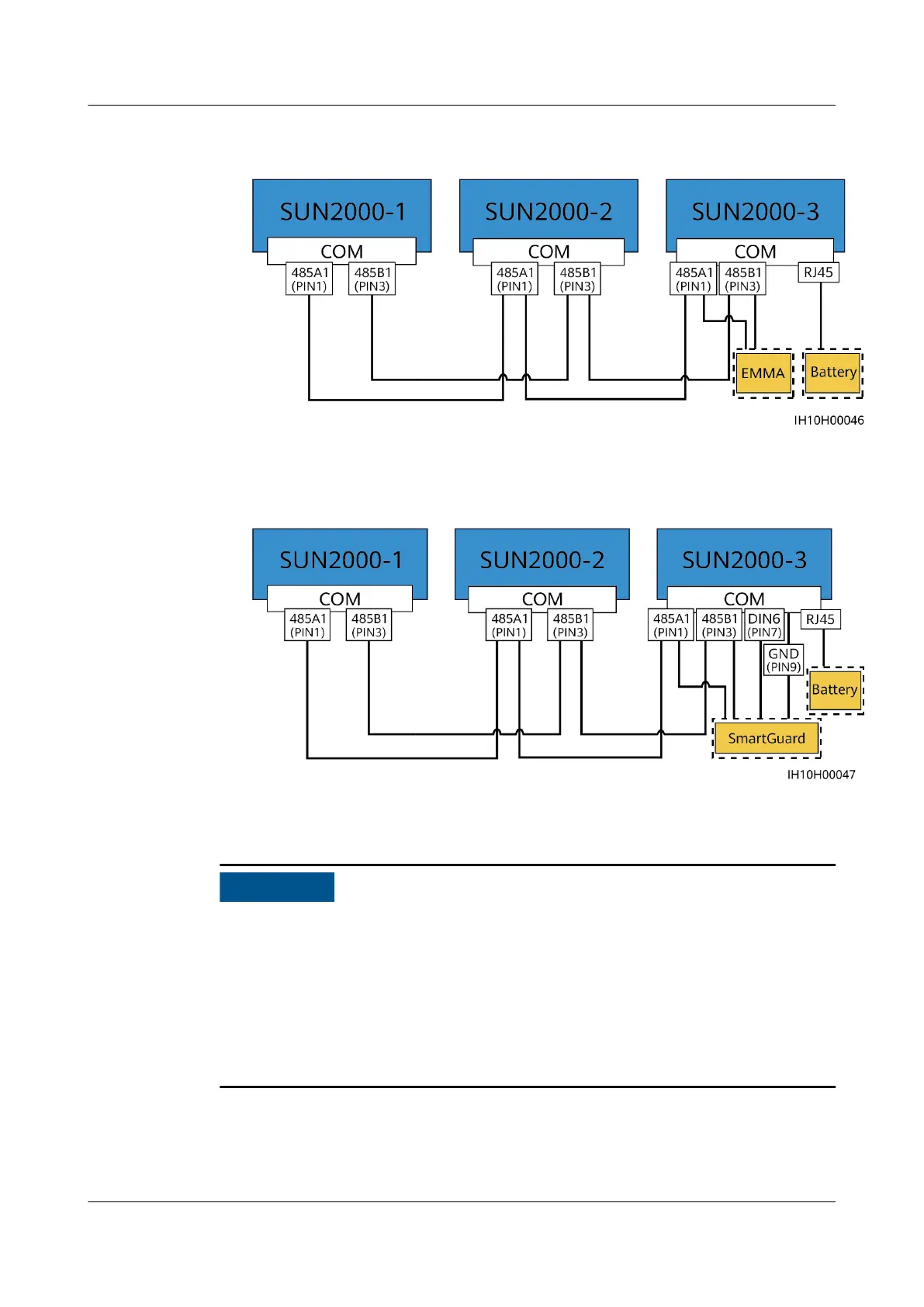

Figure 5-16 EMMA networking (the components in dashed boxes are
optional)
● SmartGuard networking
Figure 5-17 SmartGuard networking (the components in dashed boxes are
optional)
Requirements for Signal Cables
NO TICE
● Ensure that the protection layer of the cable is in the connector. The surplus
core should be cut o from the protection layer.
● Ensure that the exposed core is totally inserted into the cable hole.
● Ensure that the signal cables are connected securely.
● Ensure that the cables are not twisted.
● If multiple signal cables need to be connected to a single connector, ensure
that the outer diameters of the signal cables are the same.
