● In a TT power grid, the N-PE voltage should be lower than 30 V.
● In an IT power grid, you need to set isolation settings to input not grounded, with a
transformer.
2.3 Appearance
Appearance and Ports

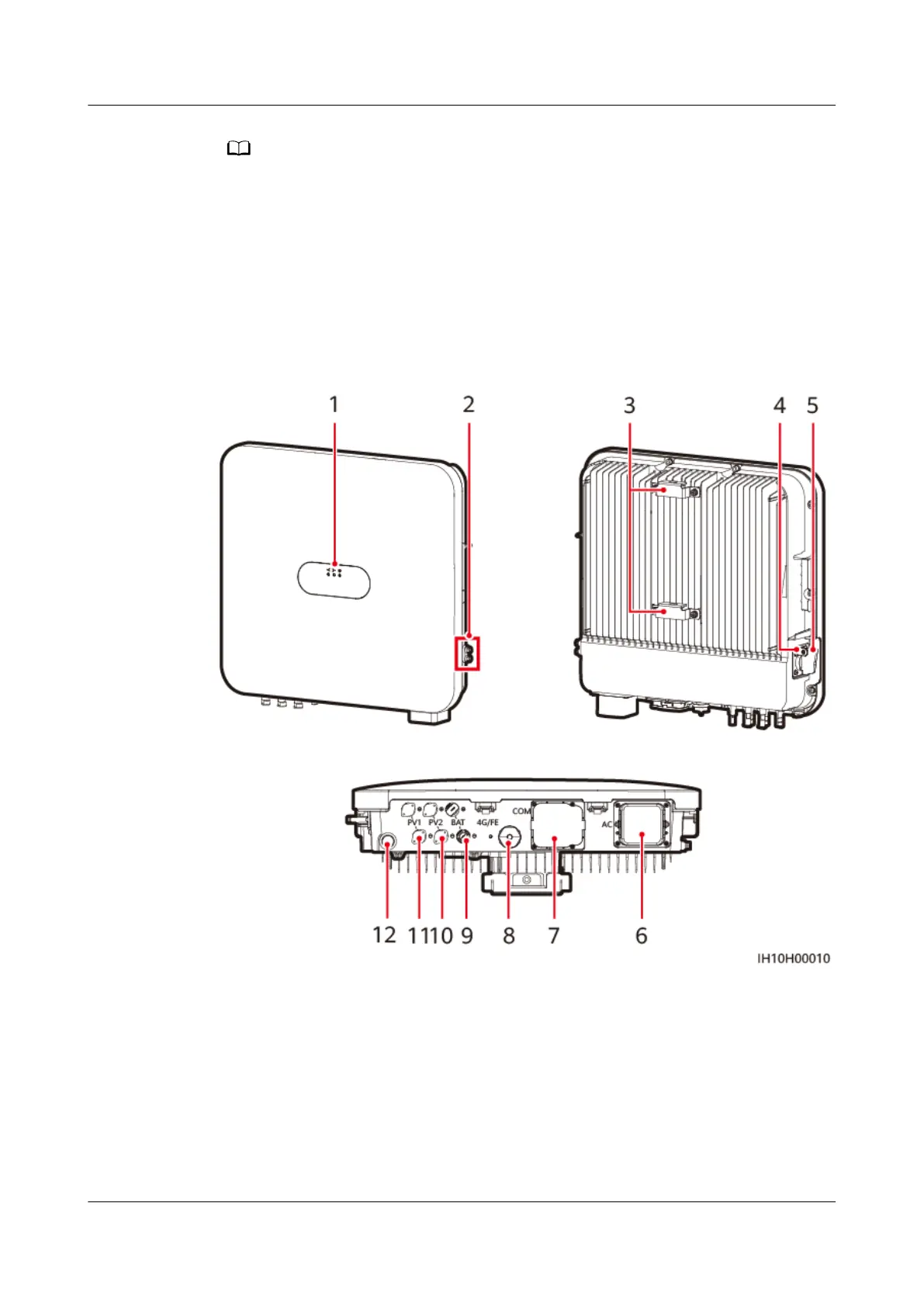

Figure 2-7 Appearance
(1) LED indicators (2) Ground screws
(3) Mounting bracket
(4) Hole for the DC switch padlock
[1]
(5) DC switch (DC SWITCH) (6) AC output port (AC)
(7) Communications port (COM) (8) Smart Dongle port (4G/FE)
SUN2000-(5K-12K)-MAP0 Series
User Manual 2 Overview
Issue 01 (2024-05-13) Copyright © Huawei Digital Power Technologies Co., Ltd. 19
