Huawei SUN2000 MAP0 Series - Connecting the Grid Scheduling Signal Cable

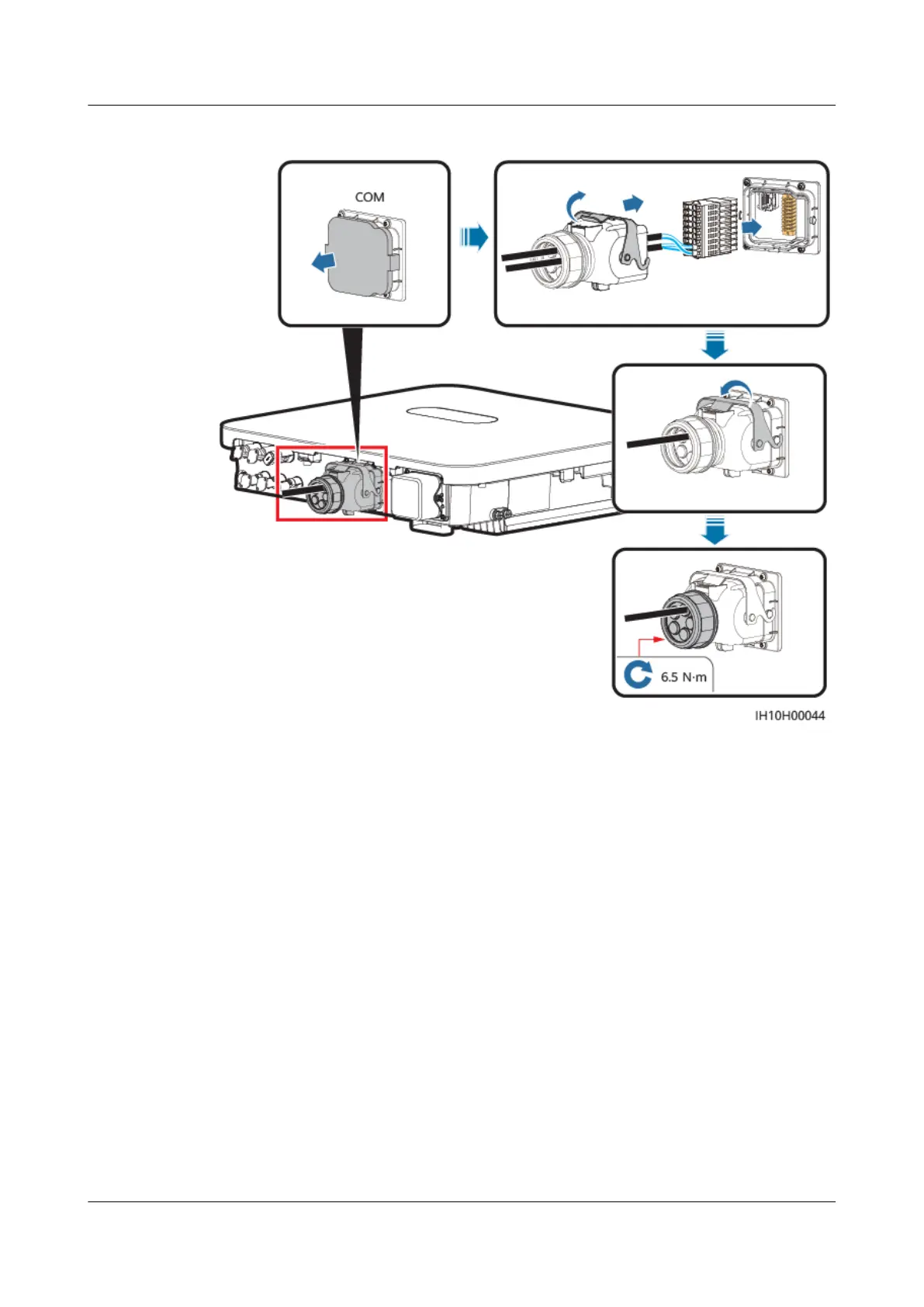

Figure 5-34 Securing the signal cable connector
----End
5.7.6 Connecting the Grid Scheduling Signal Cable
Cable Connection
The following gure shows the cable connection between the inverter and the
ripple control device.
SUN2000-(5K-12K)-MAP0 Series
User Manual 5 Electrical Connections
Issue 01 (2024-05-13) Copyright © Huawei Digital Power Technologies Co., Ltd. 76
