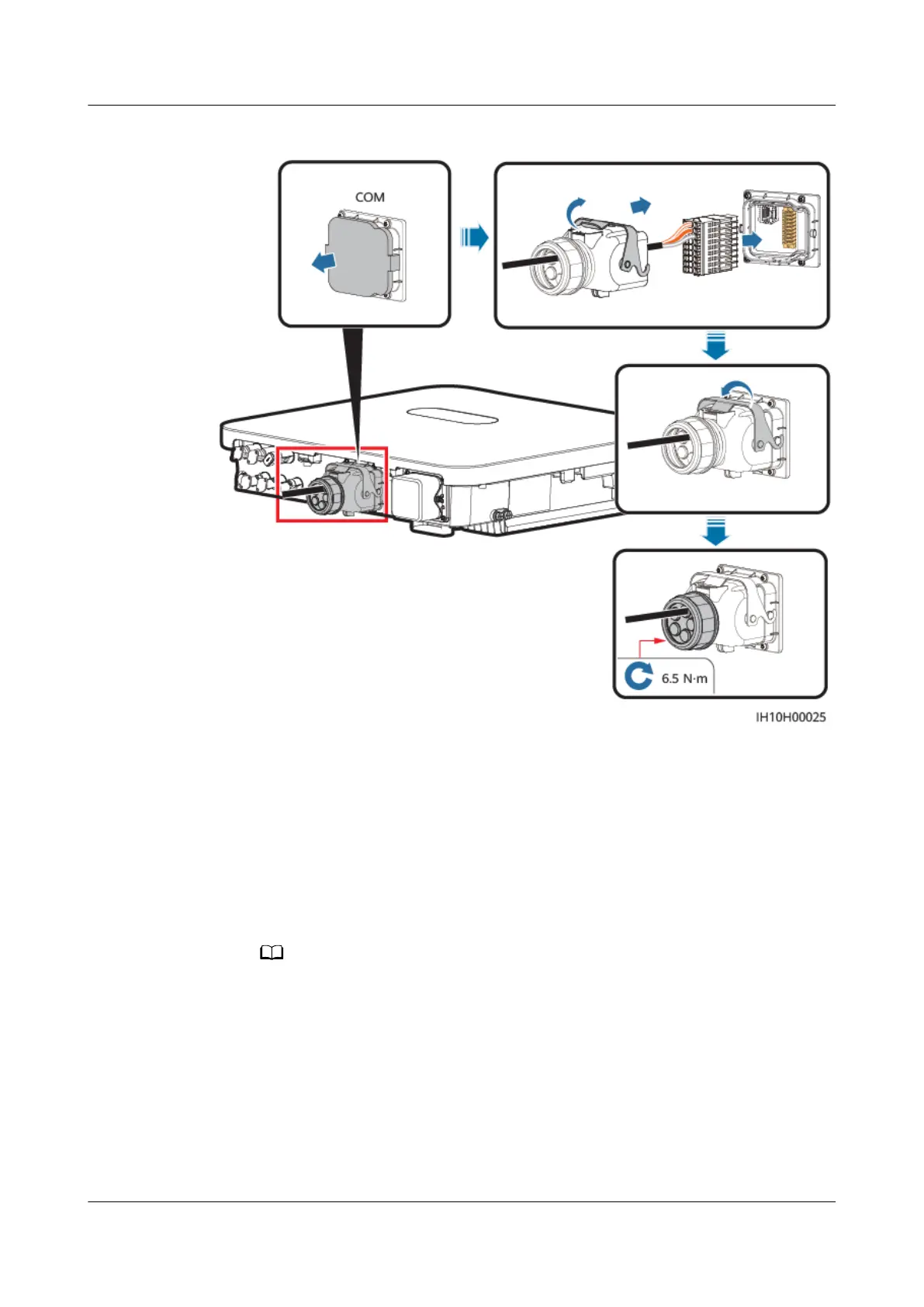

Figure 5-20 Securing the signal cable connector
----End
5.7.2 Connecting RS485 Communications Cables (Power
Meter)
Cable Connection
● The following gures show the cable connections between the inverter and
DTSU666-H (250 A/100 A) and YDS60-C24 power meters.
NO TE
The cable connections between the DTSU71 or DHSU1079-CT power meter and the
inverter are the same as those between the DTSU666-H (250 A/100 A) and the
inverter.
