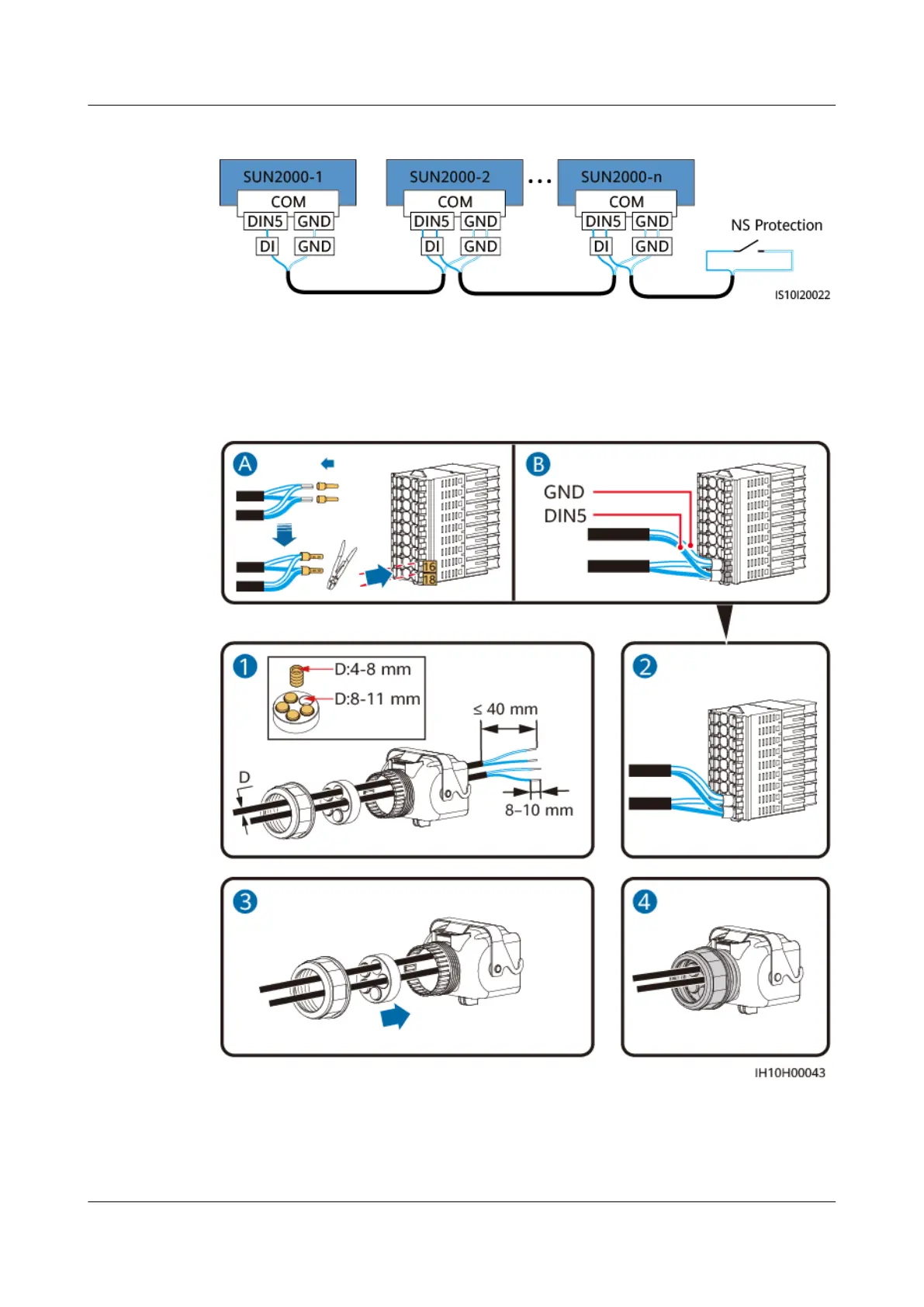

Figure 5-38 Connecting cascaded inverters to the NS protection switch
Procedure
Step 1 Connect signal cables to the signal cable connector (for inverter cascading).
Figure 5-39 Installing cables
Step 2 Connect the signal cable connector to the COM port.
