Huawei SUN2000 MB0 Series User Manual

Hoisting
● Only trained and qualied personnel are allowed to perform hoisting
operations.
● Install temporary warning signs or fences to isolate the hoisting area.
● Ensure that the foundation where hoisting is performed on meets the load-
bearing requirements.
● Before hoisting objects, ensure that hoisting tools are
rmly secured onto a
xed object or wall that meets the load-bearing requirements.
● During hoisting, do not stand or walk under the crane or the hoisted objects.
● Do not drag steel ropes and hoisting tools or bump the hoisted objects
against hard objects during hoisting.

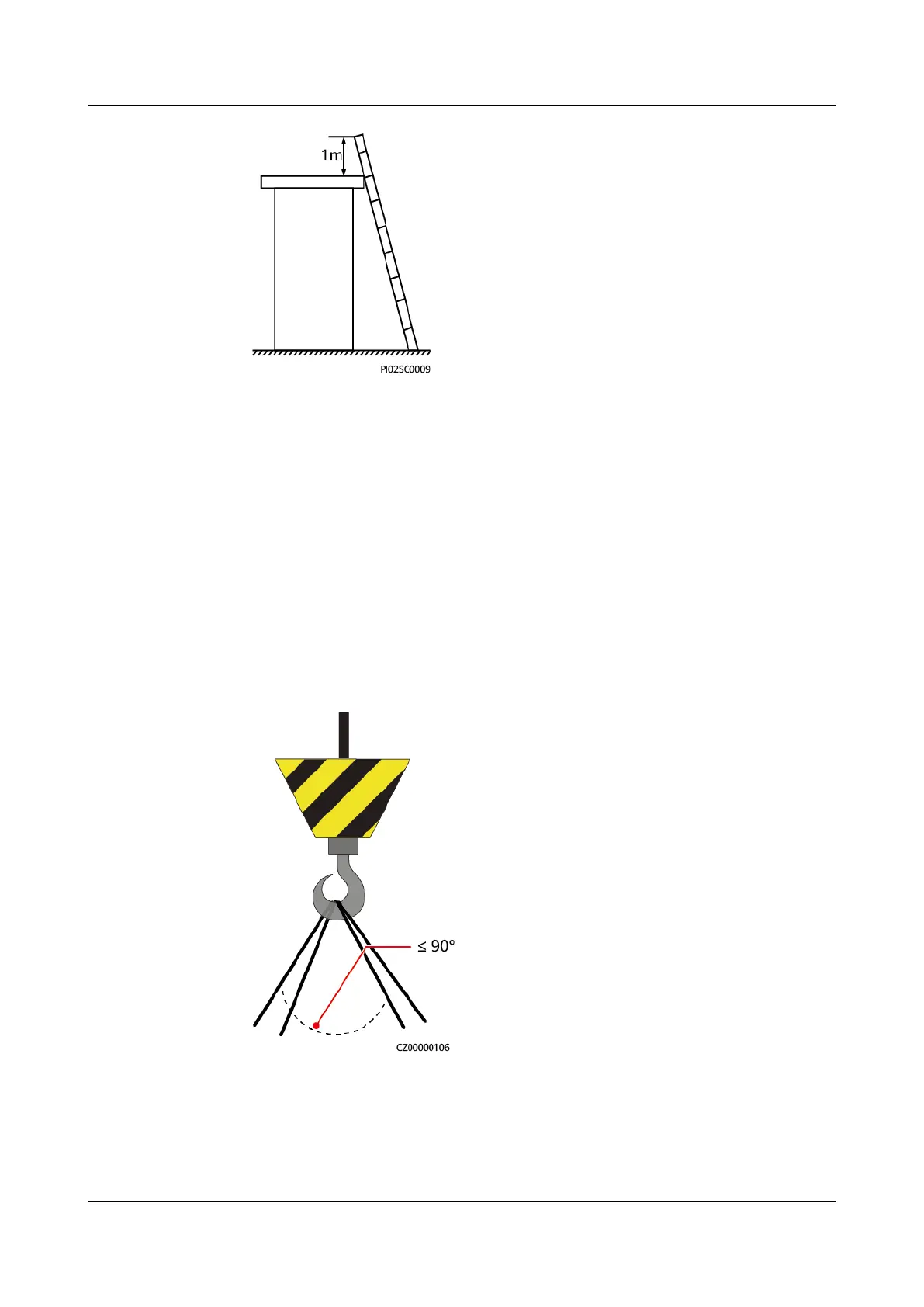

● Ensure that the angle between two hoisting ropes is no more than 90
degrees, as shown in the following gure.
Drilling Holes
● Obtain consent from the customer and contractor before drilling holes.
● Wear protective equipment such as safety goggles and protective gloves when
drilling holes.
SUN2000-(12K-25K)-MB0 Series
User Manual 1 Safety Information
Issue 01 (2023-04-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 11

Huawei SUN2000 MB0 Series Specifications

General

Type	String Inverter
Max Input Voltage	1100 V
MPPT Voltage Range	200 V - 1000 V
Number of MPPTs	2
Max Input Current per MPPT	26 A
Rated Output Frequency	50 Hz / 60 Hz
Max Efficiency	98.6%
Operating Temperature Range	-25°C to +60°C
Protection Degree	IP65
Cooling	Natural Convection
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Cooling Method	Natural Convection
Protection Level	IP65
Model	SUN2000
Rated Output Voltage	230 V / 400 V
Humidity	0% - 100%
Communication	RS485
