2.3 Appearance
Appearance and Ports

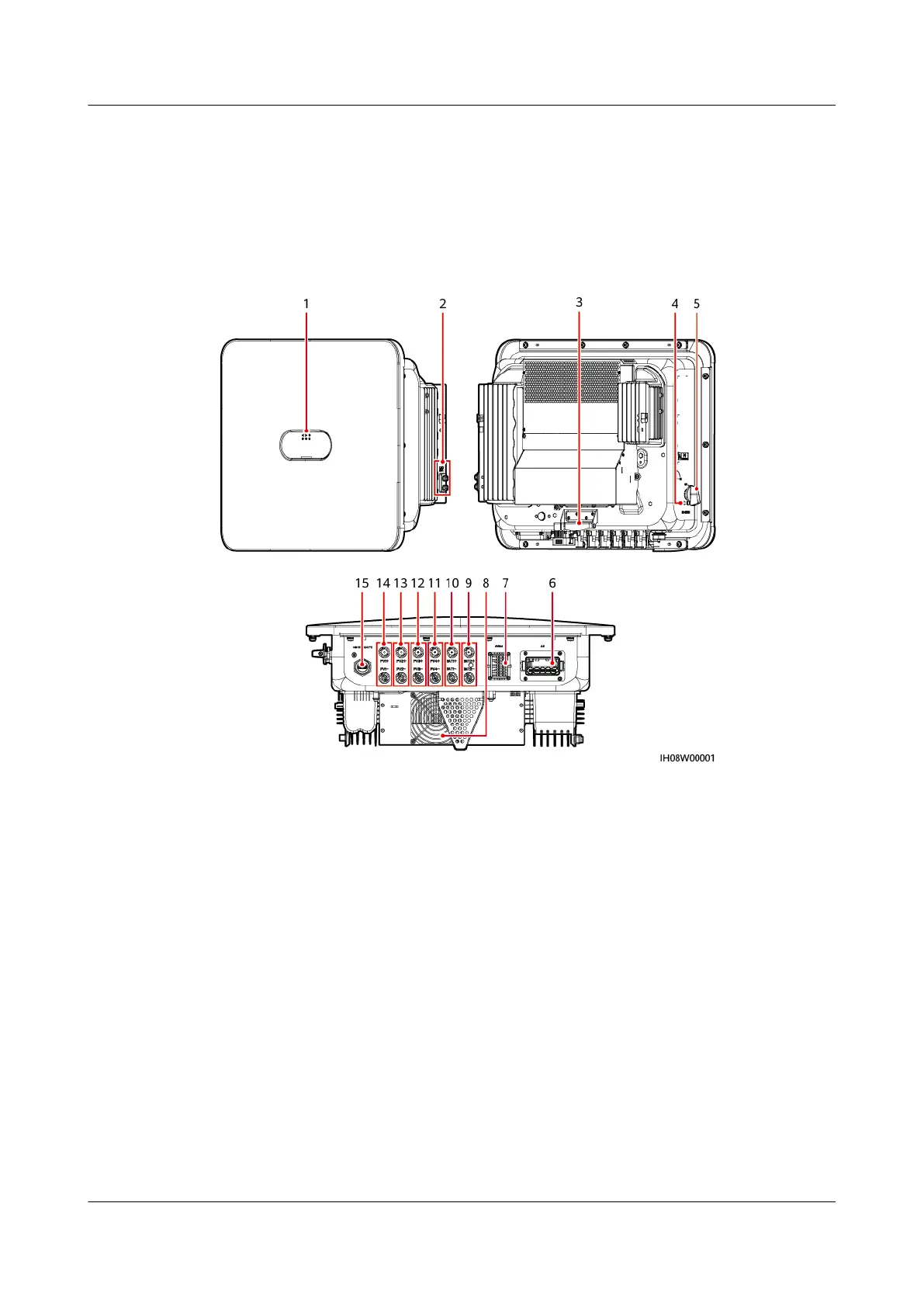

Figure 2-4 Appearance
(1) LED indicators (2) Ground screws
(3) Mounting bracket
(4) DC switch locking screw hole
[1]
(5) DC switch (DC SWITCH) (6) AC output port (AC)
(7) Communications port (COM) (8) Fan
(9) Battery terminals (BAT2+ and
BAT2–)
(10) Battery terminals (BAT1+ and
BAT1–)
(11) DC input terminals (PV4+ and
PV4–)
(12) DC input terminals (PV3+ and
PV3–)
(13) DC input terminals (PV2+ and
PV2–)
(14) DC input terminals (PV1+ and
PV1–)
(15) Smart Dongle port (4G/WLAN-FE)
