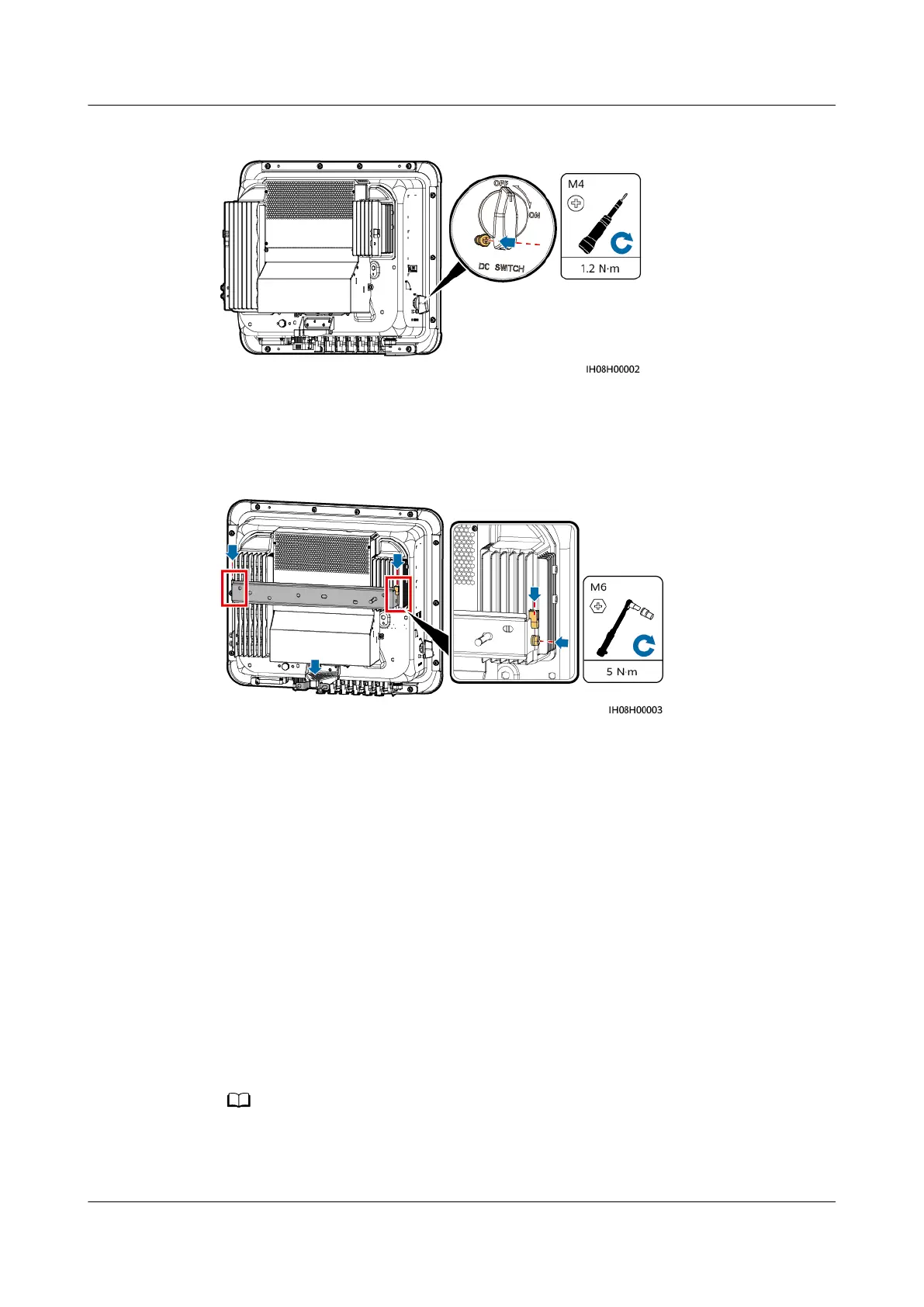

Figure 4-8 Installing the DC switch locking screw
Step 4 Install the inverter on the mounting bracket.
Step 5 Tighten the nuts.
Figure 4-9 Installing the inverter
----End
4.7 Installing an Inverter (Support Mounting)
Prerequisites
Prepare M6 stainless steel bolt assemblies (including at washers, spring washers,
and M6 bolts) with appropriate lengths as well as matched
at washers and nuts
based on the support specications.
Procedure
Step 1 Determine the positions for drilling holes using the marking-o template, and
then mark the positions with a marker.
Step 2 Drill holes using a hammer drill.
NO TE
You are advised to apply anti-rust paint on the hole positions for protection.
Step 3 Secure the mounting bracket.
SUN2000-(12K-25K)-MB0 Series
User Manual 4 Installation
Issue 01 (2023-04-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 32

Huawei SUN2000 MB0 Series Specifications

General

Type	String Inverter
Max Input Voltage	1100 V
MPPT Voltage Range	200 V - 1000 V
Number of MPPTs	2
Max Input Current per MPPT	26 A
Rated Output Frequency	50 Hz / 60 Hz
Max Efficiency	98.6%
Operating Temperature Range	-25°C to +60°C
Protection Degree	IP65
Cooling	Natural Convection
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Cooling Method	Natural Convection
Protection Level	IP65
Model	SUN2000
Rated Output Voltage	230 V / 400 V
Humidity	0% - 100%
Communication	RS485
