5.5.2 Connecting an RS485 Communications Cable (Power
Meter)
Cable Connections
● The following gures show the cable connections between the inverter and
DTSU666-H and YDS60-C24 power meters.

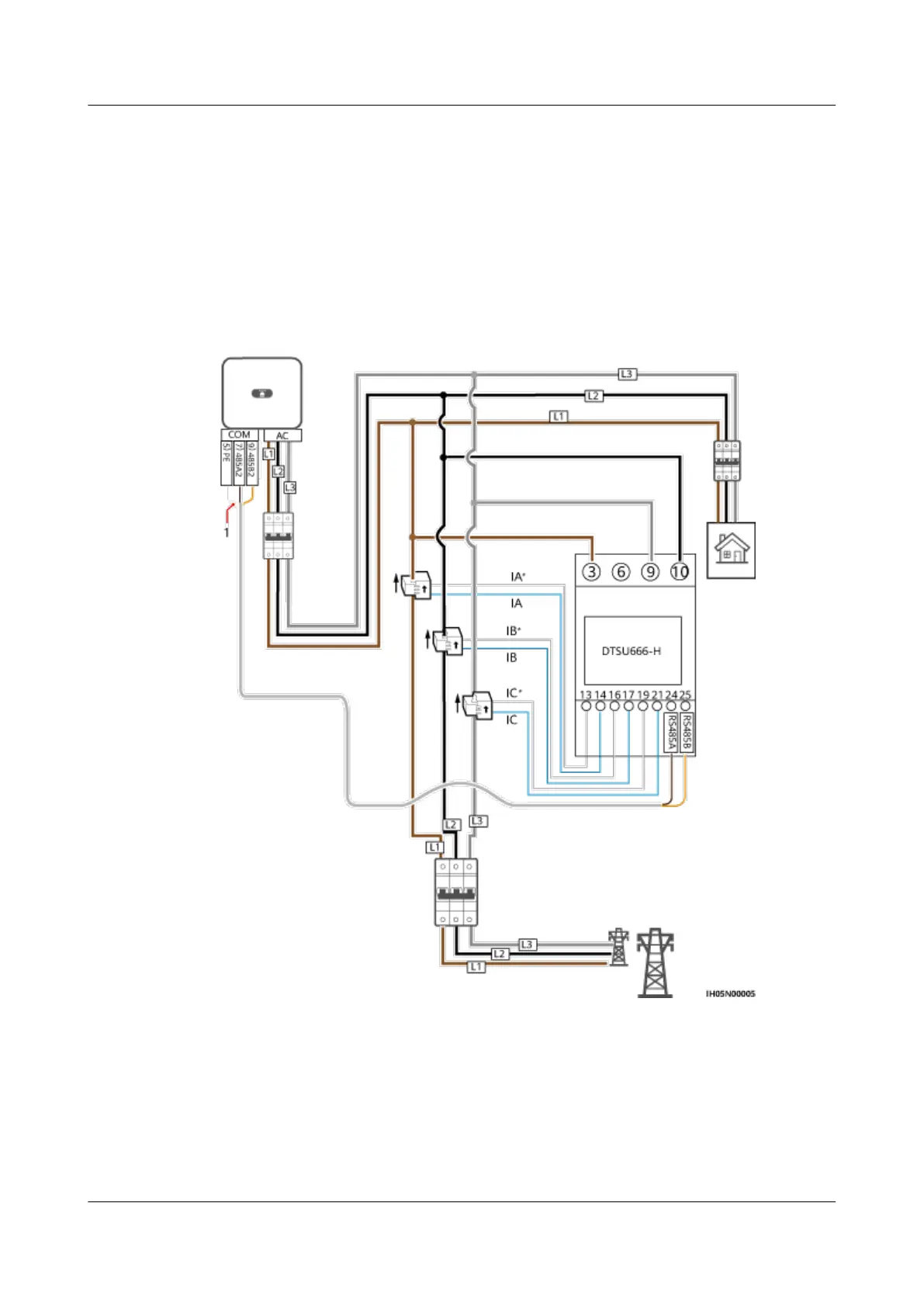

Figure 5-19 DTSU666-H three-phase, three-wire cable connection (Smart Dongle
networking)
SUN2000-(12K-25K)-MB0 Series
User Manual 5 Electrical Connections
Issue 01 (2023-04-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 53
