Huawei SUN2000 MB0 Series User Manual

No. Check Item Acceptance Criteria
9 Installation environment The installation space is proper, and
the installation environment is clean
and tidy, without foreign matter.
6.1 Powering On the Inverter
Precautions
NO TICE
● Before the equipment is put into operation for the rst time, ensure that the
parameters are set correctly by professional personnel. Incorrect parameter
settings may result in noncompliance with local grid connection requirements
and
aect the normal operations of the equipment.
● If the DC power supply is connected but the AC power supply is disconnected,
the inverter will report a Grid Failure alarm. The inverter can start properly
only after the power grid recovers.
Procedure
Step 1 At the AC switch between the inverter and the power grid, use a multimeter to
measure the grid voltage and ensure that the voltage is within the allowed
operating voltage range of the inverter. If the voltage is not in the allowed range,
check the circuits.
Step 2 Turn on the AC switch between the inverter and the power grid.
Step 3 Turn on the DC switch (if any) between the PV strings and the inverter.
Step 4 (Optional) Remove the knob locking screw next to the DC SWITCH on the inverter.
Step 5 Set the DC SWITCH on the inverter to ON.
Step 6 Observe the LED indicators to check the status of the inverter.

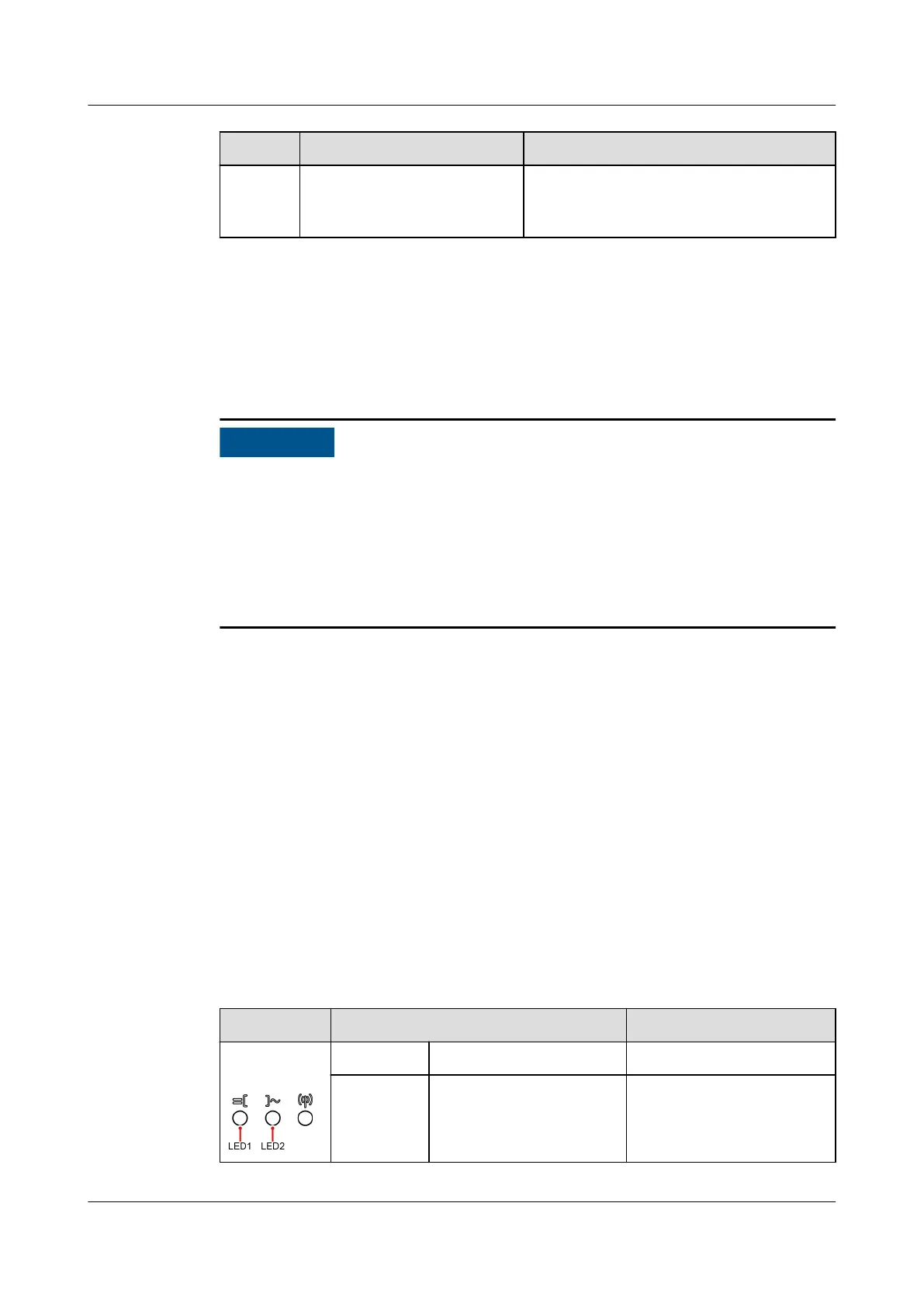

Table 6-2 LED indicator description
Category
Status Description
Running
indication
LED1 LED2 -
Steady
green
Steady green The inverter is operating
in grid-tied mode.
SUN2000-(12K-25K)-MB0 Series
User Manual 6 Power-On and Commissioning
Issue 01 (2023-04-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 67

Huawei SUN2000 MB0 Series Specifications

General

Type	String Inverter
Max Input Voltage	1100 V
MPPT Voltage Range	200 V - 1000 V
Number of MPPTs	2
Max Input Current per MPPT	26 A
Rated Output Frequency	50 Hz / 60 Hz
Max Efficiency	98.6%
Operating Temperature Range	-25°C to +60°C
Protection Degree	IP65
Cooling	Natural Convection
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Cooling Method	Natural Convection
Protection Level	IP65
Model	SUN2000
Rated Output Voltage	230 V / 400 V
Humidity	0% - 100%
Communication	RS485
