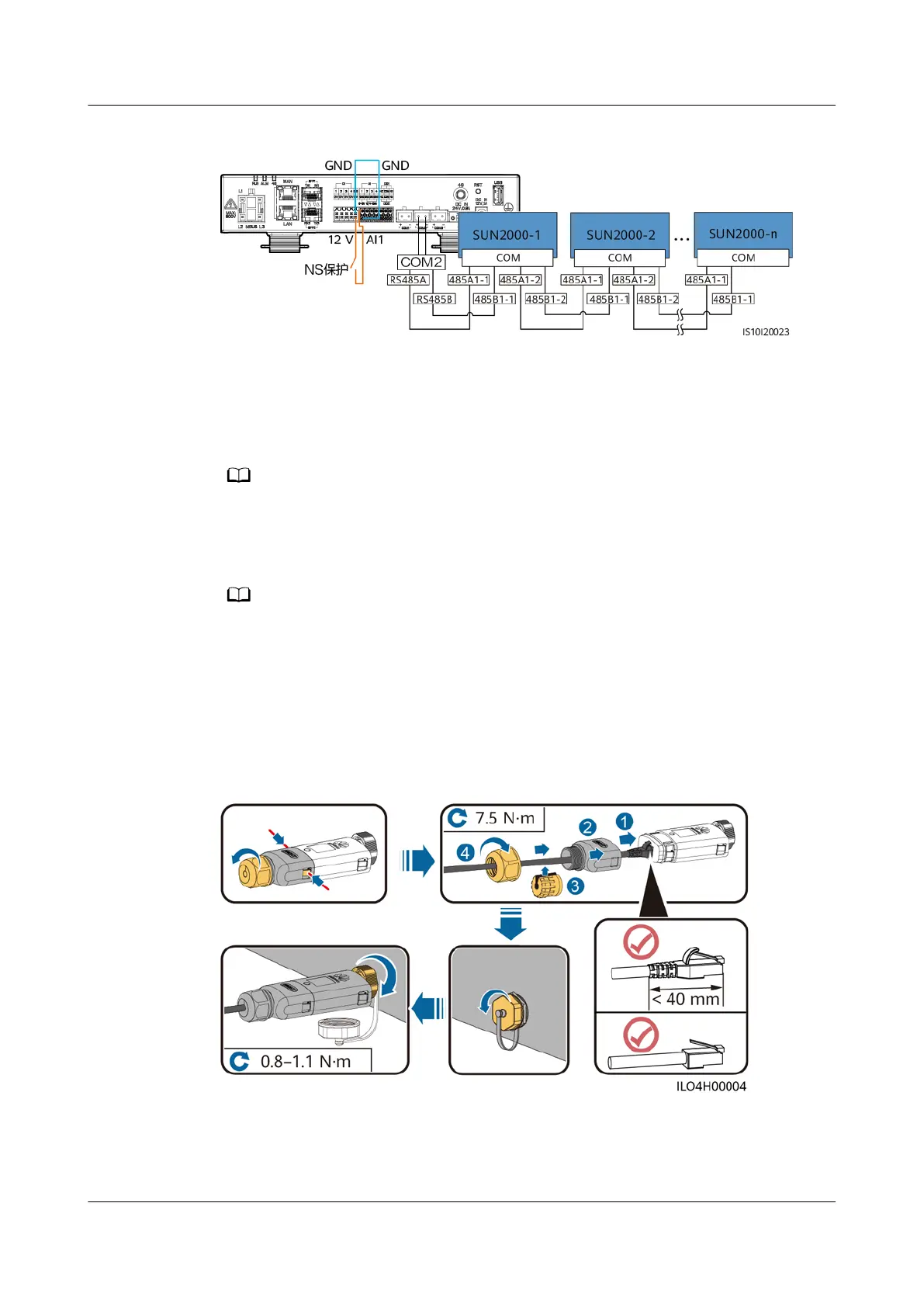

Figure 5-36 Connecting the SmartLogger to the NS protection switch
5.6 (Optional) Installing the Smart Dongle and Anti-
theft Components
NO TE
● If WLAN-FE communication is used, install the WLAN-FE Smart Dongle (SDongleA-05).
For details, see SDongleA-05 Smart Dongle Quick Guide (WLAN-FE).
● If 4G communication is used, install the 4G Smart Dongle (SDongleB-06). For details,
see SDongleB-06 Smart Dongle Quick Guide (4G).
NO TE
If the Smart Dongle is used, you need to install anti-theft components after installing the
Smart Dongle.
WLAN-FE Smart Dongle (FE Communication)
You are advised to use a CAT 5E outdoor shielded network cable (outer diameter
< 9 mm; internal resistance ≤ 1.5 ohms/10 m) and shielded RJ45 connectors.
Figure 5-37 Installing a WLAN-FE Smart Dongle (FE communication)
SUN2000-(12K-25K)-MB0 Series
User Manual 5 Electrical Connections
Issue 01 (2023-04-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 64
