5.5.1 Connecting the RS485 Communications Cable (Inverter
Cascading)
Procedure
Step 1 Connect the signal cable to the signal cable connector.

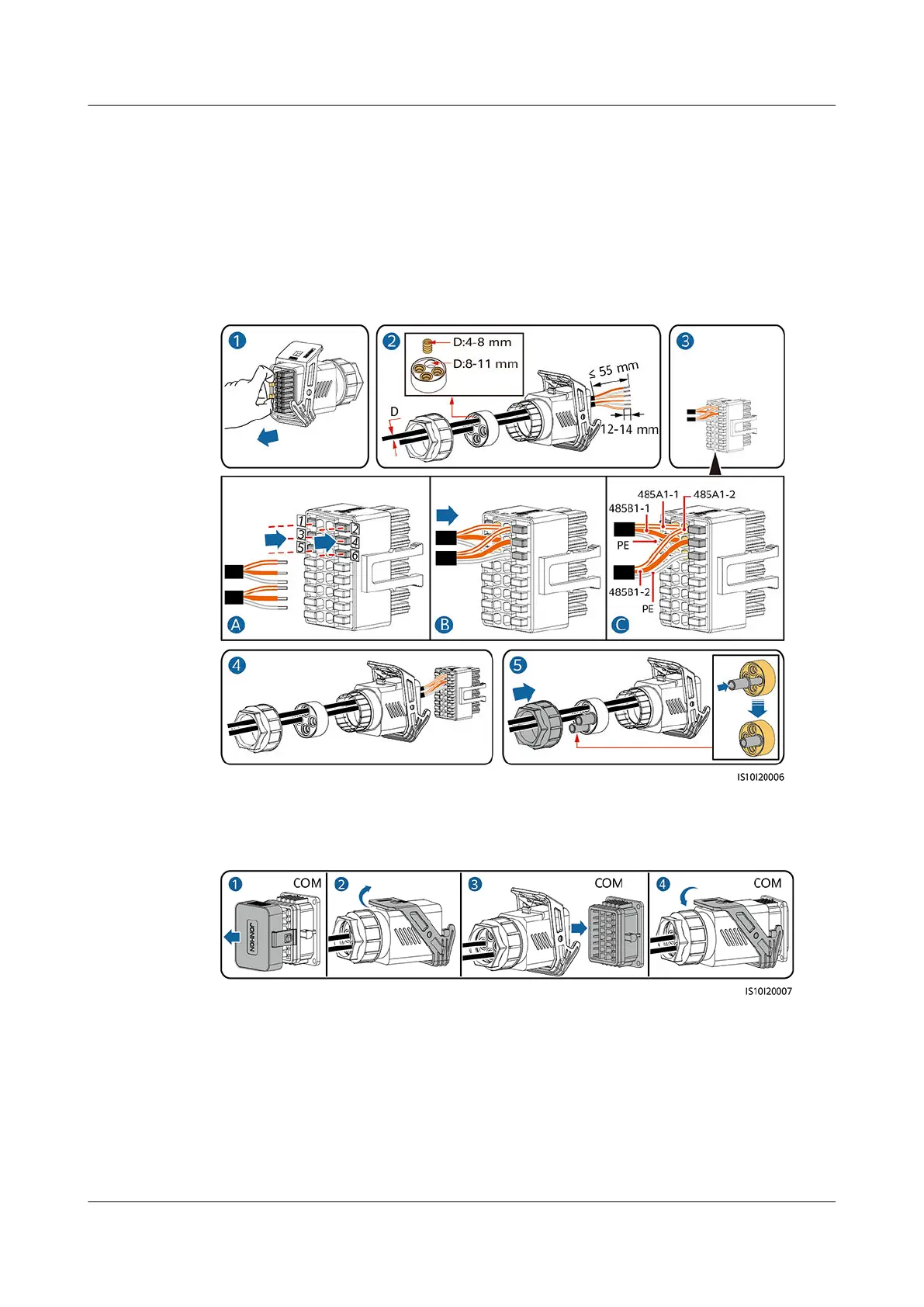

Figure 5-17 Installing the cable
Step 2 Connect the signal cable connector to the COM port.
Figure 5-18 Securing the signal cable connector
----End
