Huawei SUN2000 MB0 Series User Manual

CA UTION
● Stay away from the equipment when preparing cables to prevent cable scraps
from entering the equipment. Cable scraps may cause sparks and result in
personal injury and equipment damage.
● When routing PV cables, the positive and negative PV string cables should be
routed in
dierent pipes to prevent cable damage and short circuits caused by
improper operations during construction.
NO TE
The cable colors shown in the electrical connection diagrams provided in this section are for
reference only. Select cables in accordance with local cable specications (green-and-yellow
cables are only used for protective earthing).
5.1 Preparing Cables

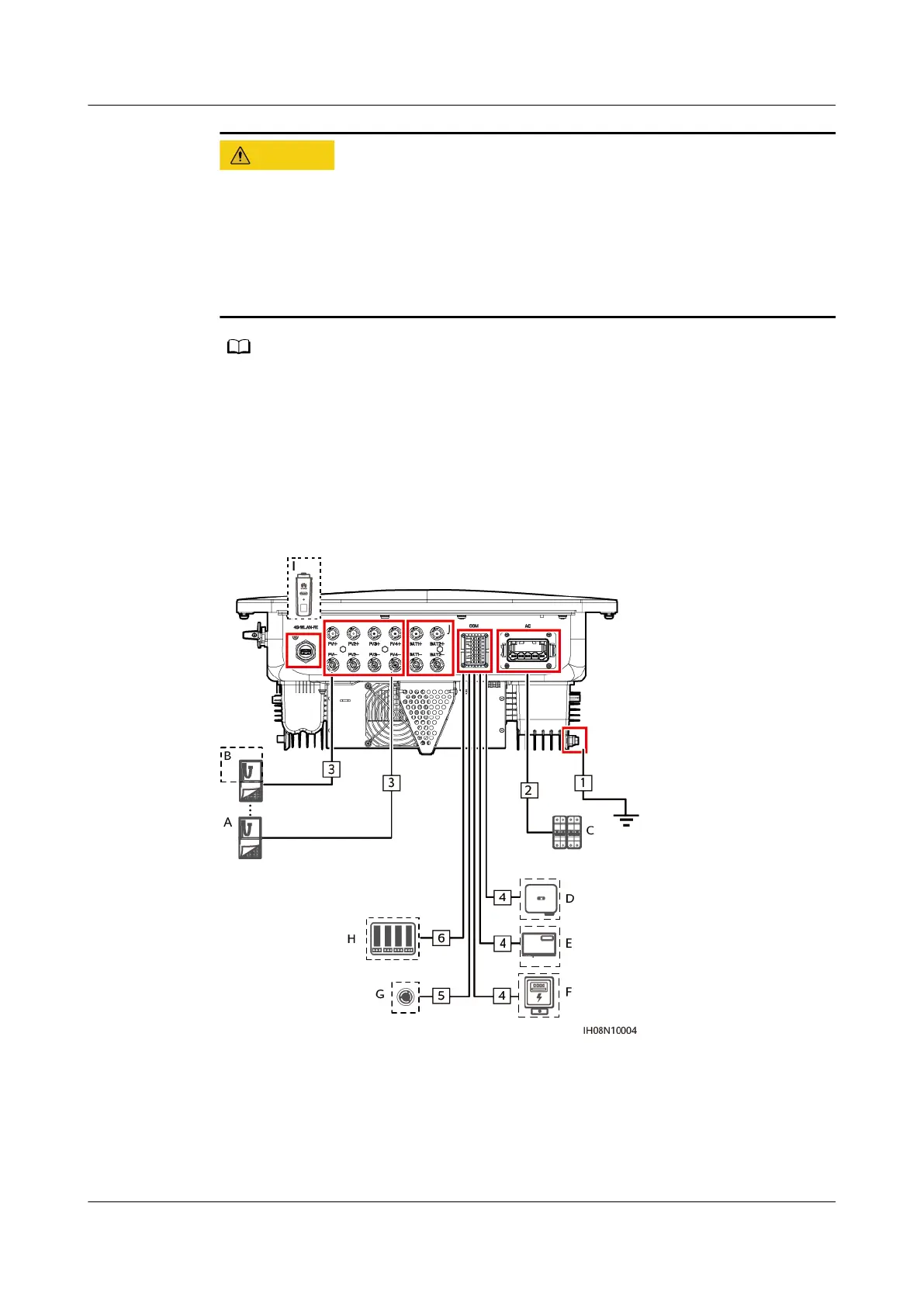

Figure 5-1 SUN2000 cable connections (the components in dashed boxes are
optional)
SUN2000-(12K-25K)-MB0 Series
User Manual 5 Electrical Connections
Issue 01 (2023-04-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 36

Huawei SUN2000 MB0 Series Specifications

General

Type	String Inverter
Max Input Voltage	1100 V
MPPT Voltage Range	200 V - 1000 V
Number of MPPTs	2
Max Input Current per MPPT	26 A
Rated Output Frequency	50 Hz / 60 Hz
Max Efficiency	98.6%
Operating Temperature Range	-25°C to +60°C
Protection Degree	IP65
Cooling	Natural Convection
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Cooling Method	Natural Convection
Protection Level	IP65
Model	SUN2000
Rated Output Voltage	230 V / 400 V
Humidity	0% - 100%
Communication	RS485
