Huawei SUN2000 MB0 Series User Manual

Step 2 Connect the signal cable connector to the COM port.
Figure 5-29 Securing the signal cable connector
----End
5.5.4 Connecting the Power Grid Scheduling Signal Cable
Cable Connection
The following
gure shows the cable connections between the inverter and the
Ripple Control Device.

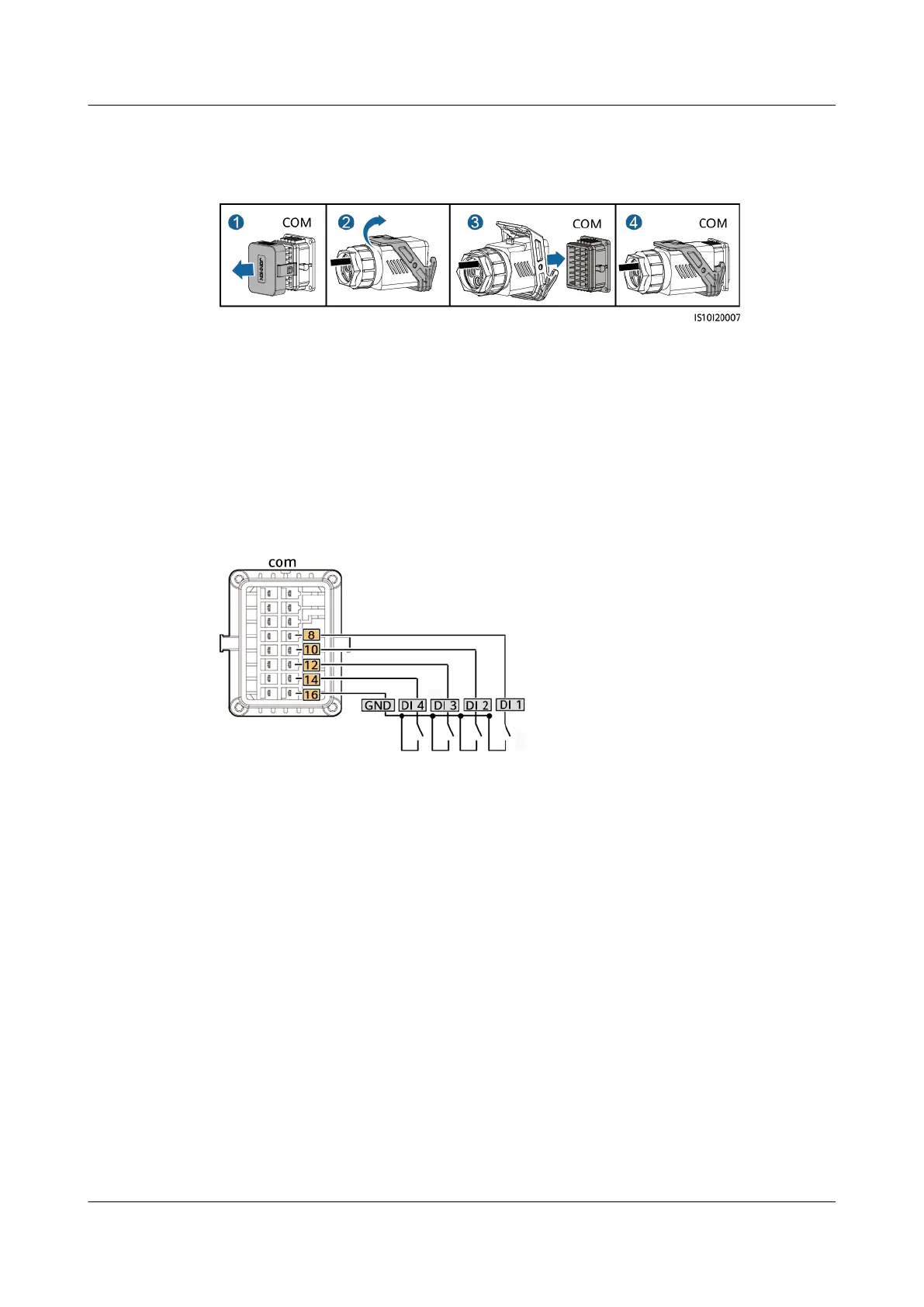

Figure 5-30 Cable connection
Procedure
Step 1 Connect the signal cable to the signal cable connector.
SUN2000-(12K-25K)-MB0 Series
User Manual 5 Electrical Connections
Issue 01 (2023-04-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 60

Huawei SUN2000 MB0 Series Specifications

General

Type	String Inverter
Max Input Voltage	1100 V
MPPT Voltage Range	200 V - 1000 V
Number of MPPTs	2
Max Input Current per MPPT	26 A
Rated Output Frequency	50 Hz / 60 Hz
Max Efficiency	98.6%
Operating Temperature Range	-25°C to +60°C
Protection Degree	IP65
Cooling	Natural Convection
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Cooling Method	Natural Convection
Protection Level	IP65
Model	SUN2000
Rated Output Voltage	230 V / 400 V
Humidity	0% - 100%
Communication	RS485
