conditions (such as typhoons and monsoons) or terrains (such as dams and
hills).
● The inverter should be installed in a well-ventilated environment to ensure
good heat dissipation.
● You are advised to install the inverter in a sheltered area, or with an awning
over it.
Mounting Structure Requirements
● The mounting structure where the inverter is installed must be
reproof.
● Do not install the inverter on ammable building materials.
● The inverter is heavy. Ensure that the installation surface is solid enough to
bear the weight.
● In residential areas, do not install the inverter on drywalls or walls made of
similar materials which have a weak sound insulation performance because
the noise generated by the inverter is noticeable.
4.2.2 Space Requirements
Installation Angle
The inverter can be wall-mounted or support-mounted. The installation angle
requirements are as follows:
● Install the inverter vertically or at a maximum back tilt of 15 degrees to
facilitate heat dissipation.
● Do not install the inverter at forward tilted, excessive backward tilted, side
tilted, horizontal, or upside down positions.

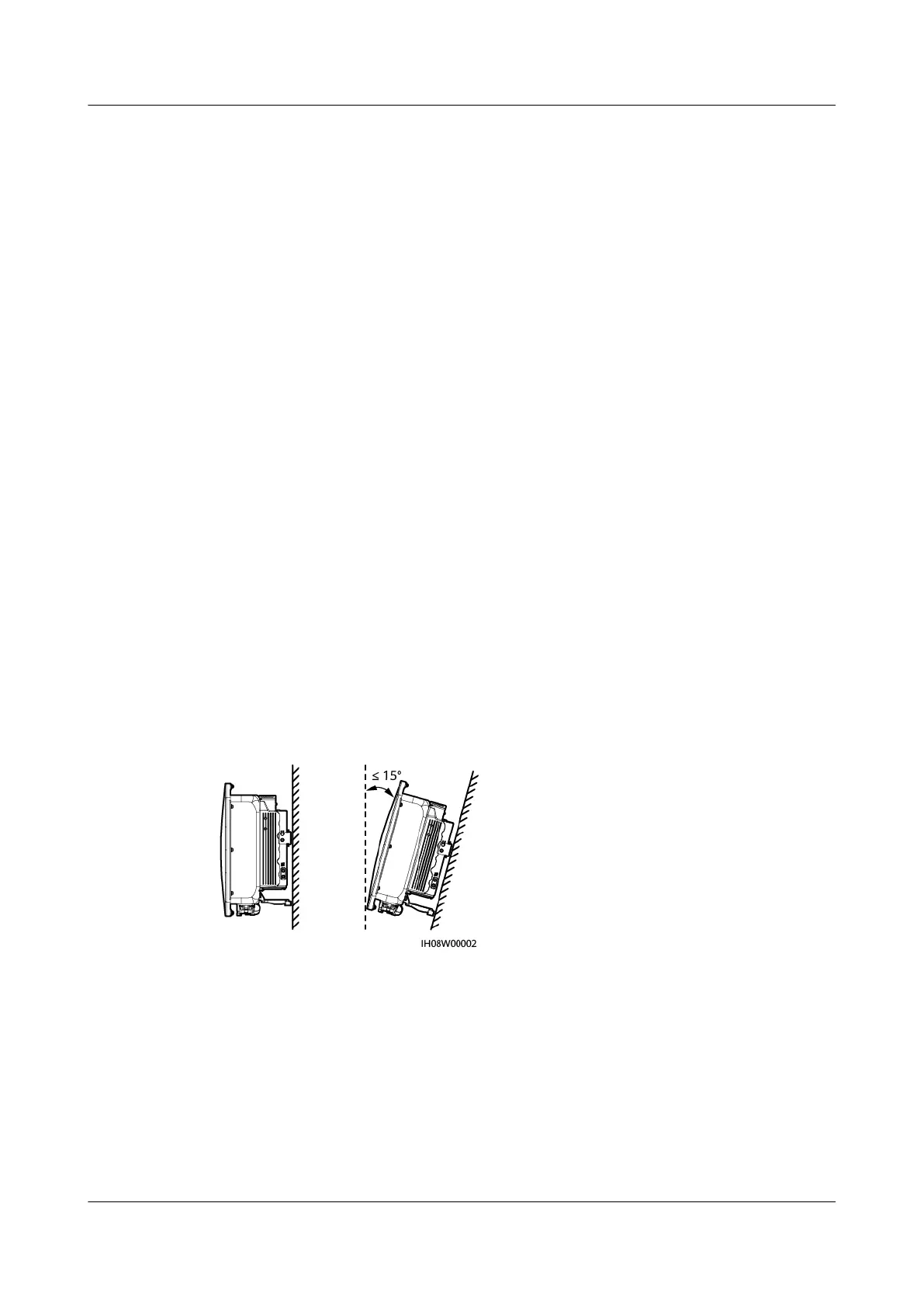

Figure 4-1 Installation angle
Installation Clearances
● Reserve enough clearances around the inverter to ensure
sucient space for
installation and heat dissipation.
