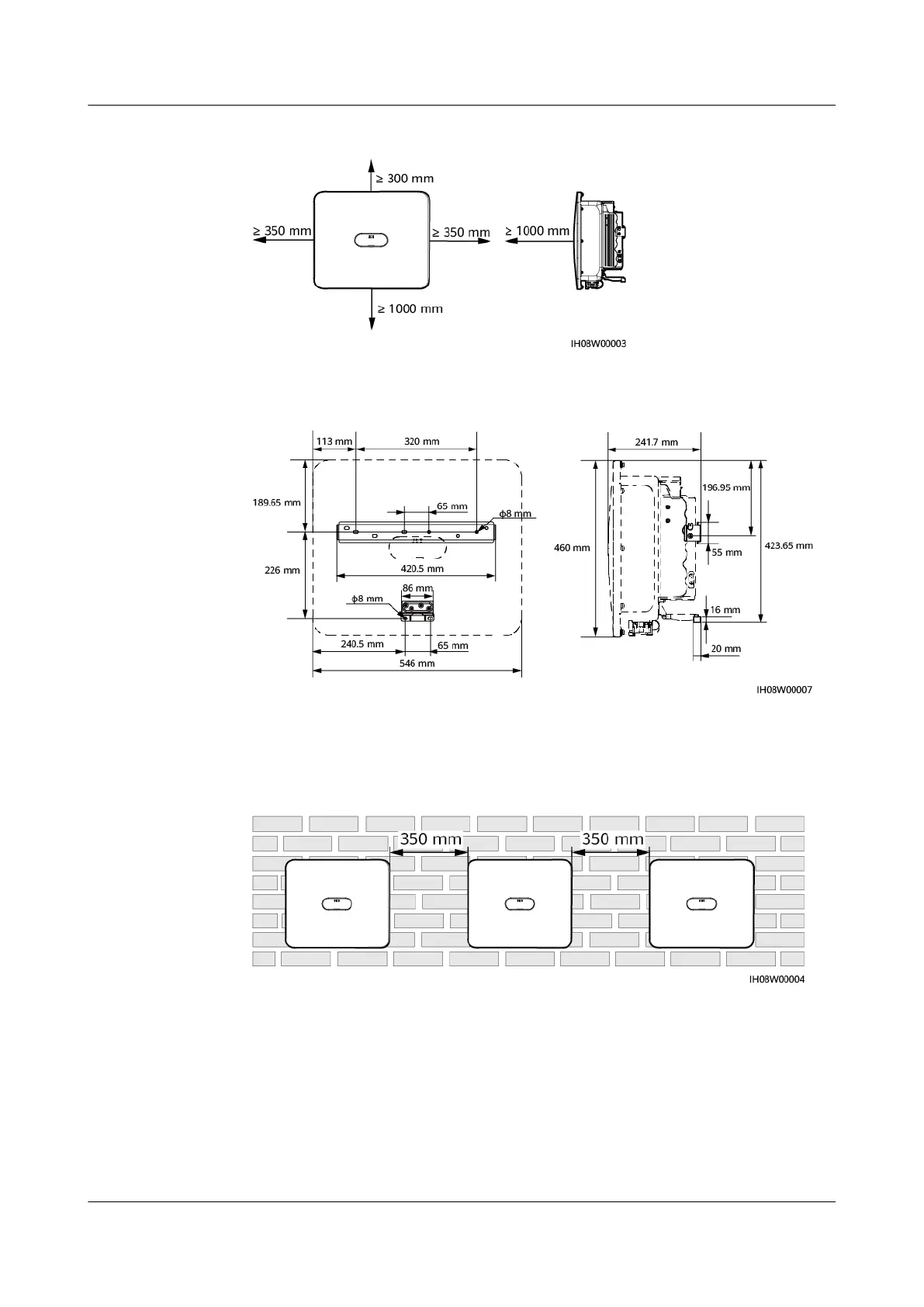

Figure 4-2 Clearances
● Figure 4-3 shows the dimensions of mounting holes for the inverter.
Figure 4-3 Dimensions of the inverter and mounting bracket
● When installing multiple inverters, install them in horizontal mode if sucient
space is available and install them in triangle mode if no sucient space is
available. Stacked installation is not recommended.
Figure 4-4 Horizontal installation mode (recommended)
SUN2000-(12K-25K)-MB0 Series
User Manual 4 Installation
Issue 01 (2023-04-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 26

Huawei SUN2000 MB0 Series Specifications

General

Type	String Inverter
Max Input Voltage	1100 V
MPPT Voltage Range	200 V - 1000 V
Number of MPPTs	2
Max Input Current per MPPT	26 A
Rated Output Frequency	50 Hz / 60 Hz
Max Efficiency	98.6%
Operating Temperature Range	-25°C to +60°C
Protection Degree	IP65
Cooling	Natural Convection
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Cooling Method	Natural Convection
Protection Level	IP65
Model	SUN2000
Rated Output Voltage	230 V / 400 V
Humidity	0% - 100%
Communication	RS485
