Huawei SUN2000 MB0 Series User Manual

NO TE
For details about operations on related products in the network, see the following
documents:
SUN2000-(600W-P, 450W-P2) Smart PV Optimizer Quick Guide
SUN2000 Smart PV Optimizer User Manual
MERC-(1300W, 1100W)-P Smart PV Optimizer Quick Guide
MERC Smart PV Optimizer User Manual
NO TE
● For two PV strings connected in parallel to the same MPPT circuit, the model, quantity,
orientation, and tilt angle of PV modules in the PV strings must be the same.
● The voltage of dierent MPPT circuits must be the same.
● The MPPT voltage must be greater than the lower threshold of the full-load MPPT
range
specied in the inverter technical data sheet. Otherwise, the inverter will be
derated, causing the system yield loss.
Power Grid Types
Power grid types supported by the SUN2000 include TN-S, TN-C, TN-C-S, TT, and
IT.

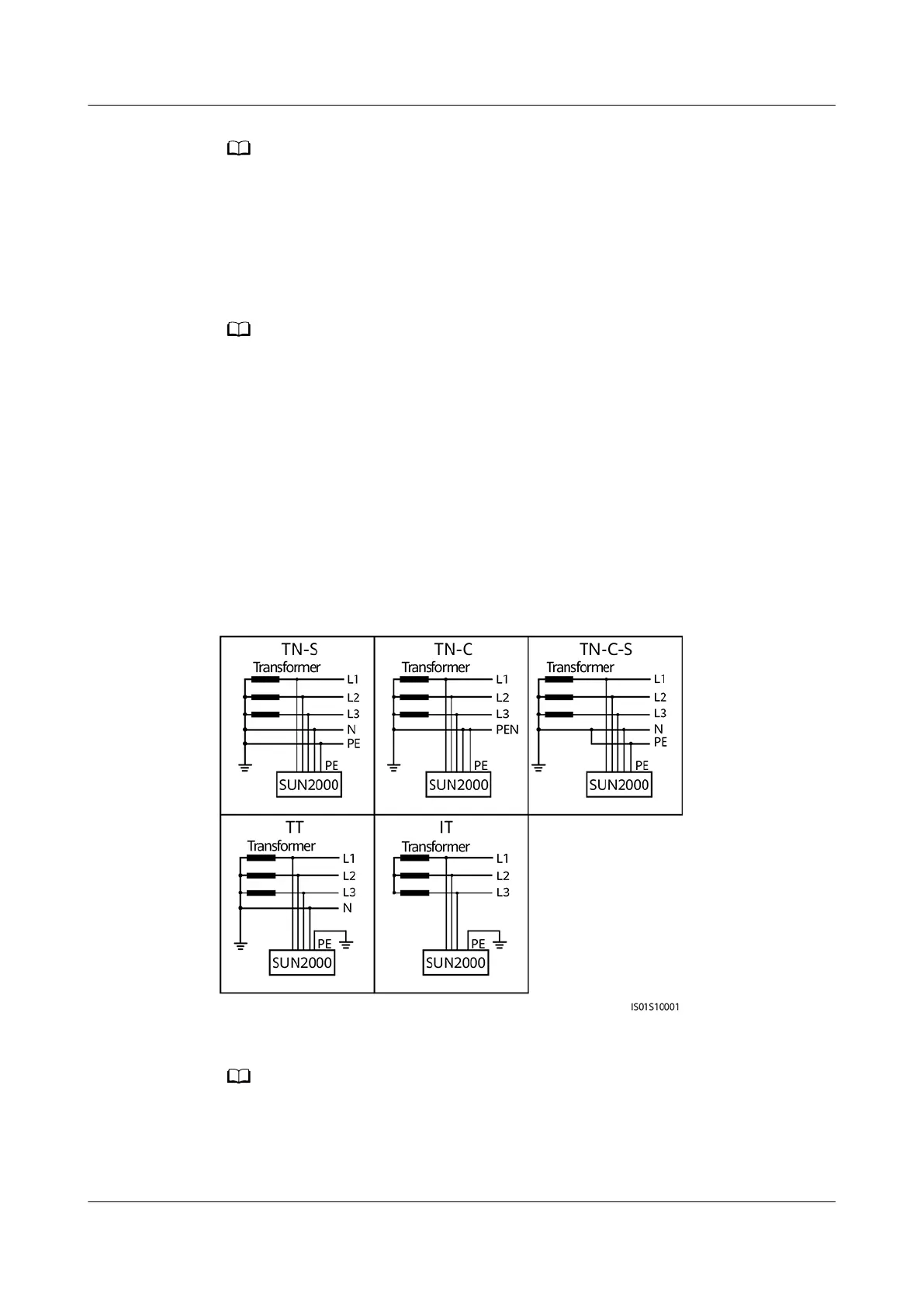

Figure 2-3 Supported power grids
NO TE
● In a TT power grid, the N-PE voltage should be lower than 30 V.
● In an IT power grid, you need to set isolation settings to input not grounded, with a
transformer.
SUN2000-(12K-25K)-MB0 Series
User Manual 2 Overview
Issue 01 (2023-04-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 16

Huawei SUN2000 MB0 Series Specifications

General

Type	String Inverter
Max Input Voltage	1100 V
MPPT Voltage Range	200 V - 1000 V
Number of MPPTs	2
Max Input Current per MPPT	26 A
Rated Output Frequency	50 Hz / 60 Hz
Max Efficiency	98.6%
Operating Temperature Range	-25°C to +60°C
Protection Degree	IP65
Cooling	Natural Convection
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Cooling Method	Natural Convection
Protection Level	IP65
Model	SUN2000
Rated Output Voltage	230 V / 400 V
Humidity	0% - 100%
Communication	RS485
