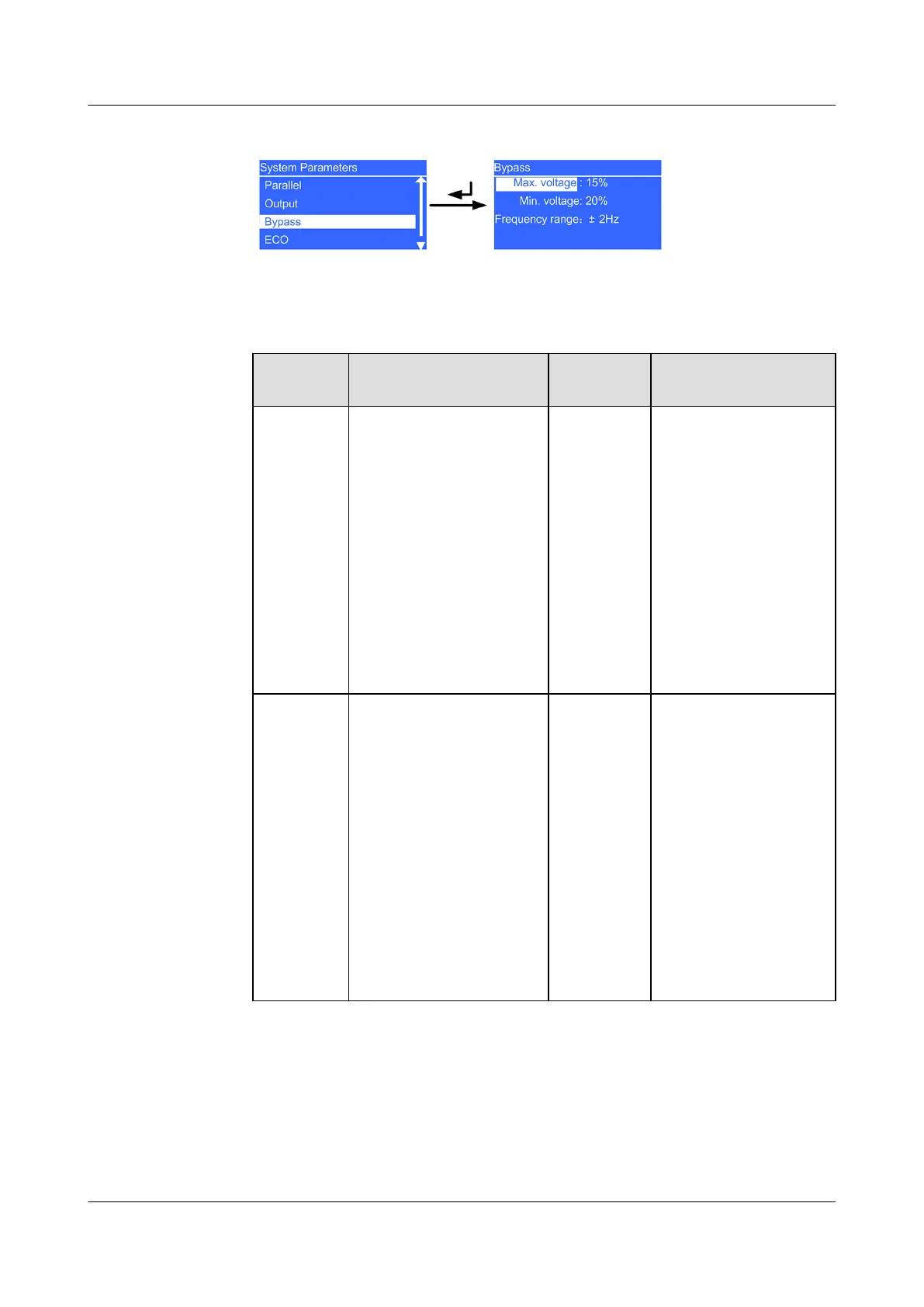

Figure 4-30 Bypass screen
Table 4-20 Bypass settings
Item Description Default
Value
Value Range
Max.
voltage
Upper threshold for the
bypass voltage. When
the dierence between
the bypass voltage and
the rated output voltage
exceeds this value, the
system determines that
the bypass voltage is
abnormal and that the
bypass is unavailable.
This parameter is
congurable only after
the inverter is shut
down.
15% 208 V: 10%, 15%,
20%, 25%, 30%
220 V (380 V in the
case of three-phase
output): 10%, 15%,
20%, 25%
230 V (400 V in the
case of three-phase
output): 10%, 15%,
20%
240 V (415 V in the
case of three-phase
output): 10%, 15%
Min.
voltage
Lower threshold for the
bypass voltage. When
the dierence between
the bypass voltage and
the rated output voltage
is greater than this
value, the system
determines that the
bypass voltage is
abnormal and that the
bypass is unavailable.
This parameter is
congurable only after
the inverter is shut
down.
20% 10%, 20%, 30%, 40%,
50%, 60%
UPS2000-G-(6 kVA-20 kVA)
