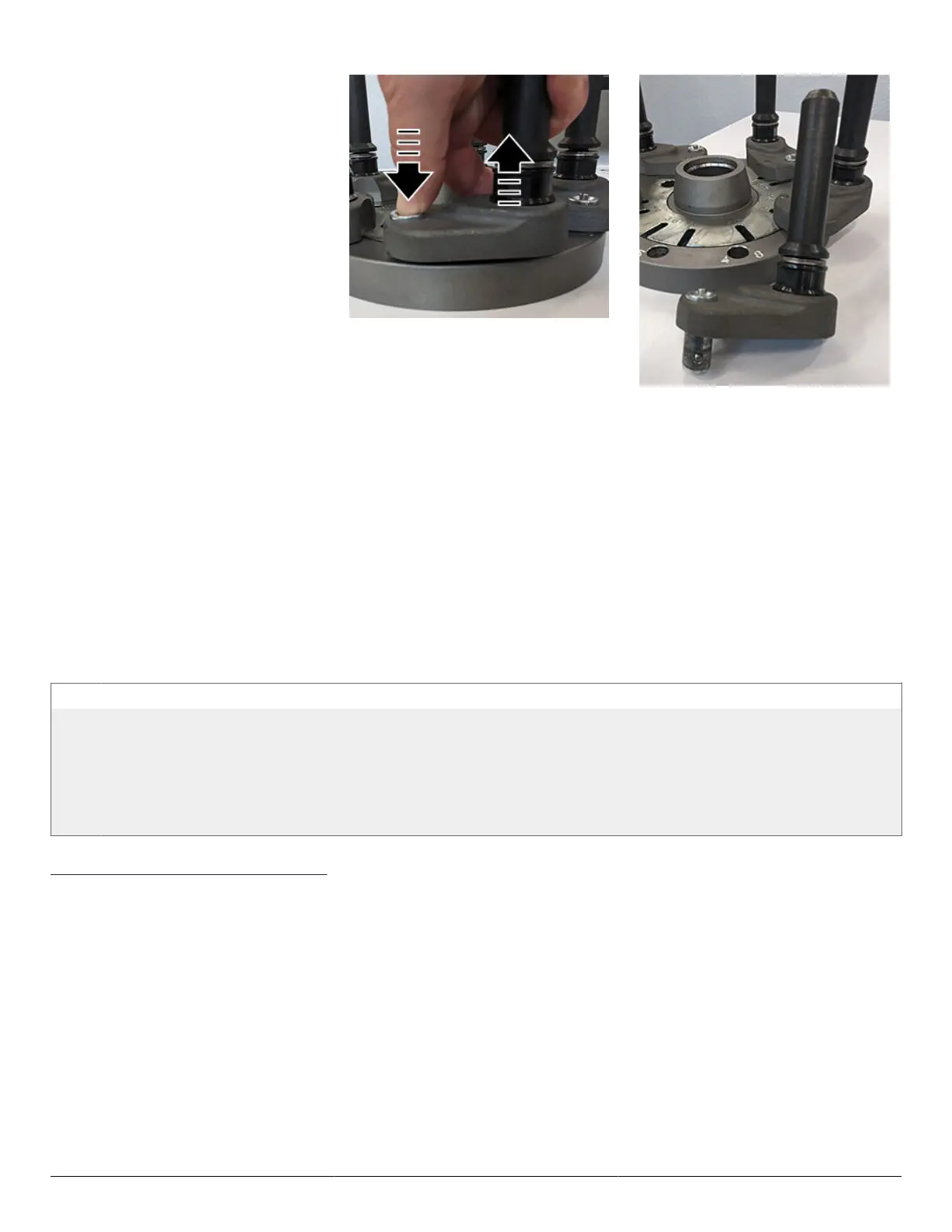

To remove, push down on silver
latch button and pull up on the pin
at the same time.
If more than one intersecting slot is
present, use the one located in the
center of the slot.
Push down on the pin and rotate a
quarter turn to lock in place. Repeat
pin installation to ll each of the
correctly numbered slots.
1. Align the index slot in the hub with the index slot in the guide.On the hub, the one slot NOT numbered (located
between the two 1-inch holes) is the index slot. On the guide, the one slot NOT grouped with the other slots is the
index slot.
The thumbscrew through the side of the ange plate limits the movement of the guide plate to keep the two index
slots crossing each other.
2. Hold the adjustable ange plate with the hub (numbered slots) on facing you.
3. Insert a pin assembly, 20-3689-1, into the index slots as follows:
Turn the guide to center the intersection of the two index slots. Align the tab at the end of pin to the index slot in
hub.
Insert the end of pin through the intersecting index slot in the guide. Push down on the pin and rotate the pin a
quarter turn to lock in place.
4. A pin is inserted in the index slot for every wheel, regardless of the number of lugs.
5. Along with the index pin, insert additional pin assemblies, 20-3689-1, into each of the correctly numbered slots
as follows:
• Turn the guide to locate the index pin near the center of index slot.
• Align the tab of the pin assembly to the numbered slot. Insert the end of pin assembly through the slot and
into the intersecting slot of the guide.
Set Flange Plate for a Wheel as follows:
HD Elite Wheel Balancer
Page 17 of 51
