S.6
Part. N. 8000 H0368 (09-2008)
FUEL INJECTION SYSTEM

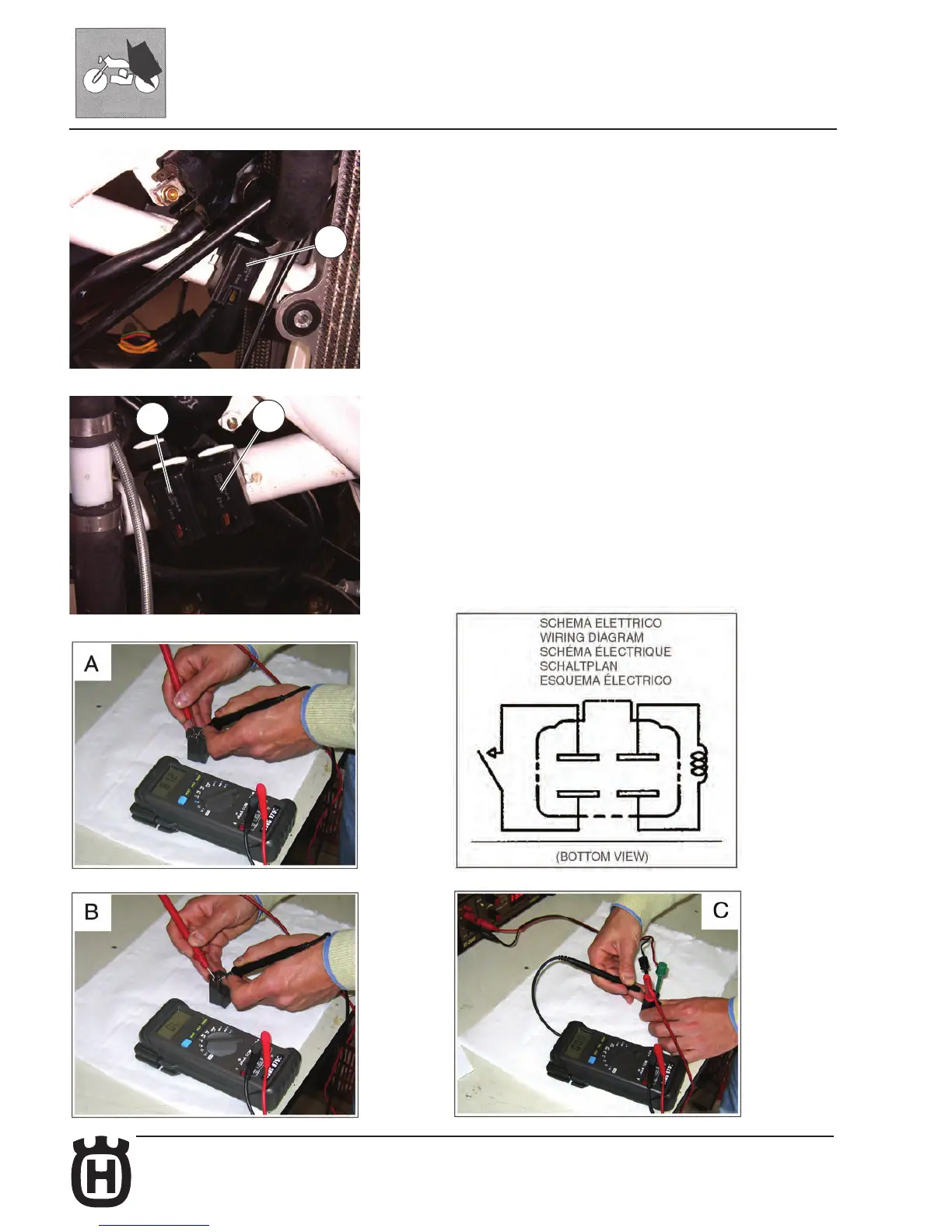

Relay check
Remove the saddle and the the fuel tank as shown on pages E.15-E.23. Re-
move the relays (1) located on the frame, R.H. side (no. 1) and L.H. side (no. 2).
A: set the meter on "Impedance" position and check that the exciter coil func-
tions properly; the value will have to be: 80 Ohm (+/- 10%) at 20°C.
B: set then the meter on "Continuity" position and check that the circuit is open.
C: using a 12V stabilized feeler for the coil and check that the circuit is closed.
1
1
1
