Husqvarna 2009 TE 310 - Page 76

E.8 Part. N. 8000 H0364 (09-2008)
GENERAL OPERATIONS

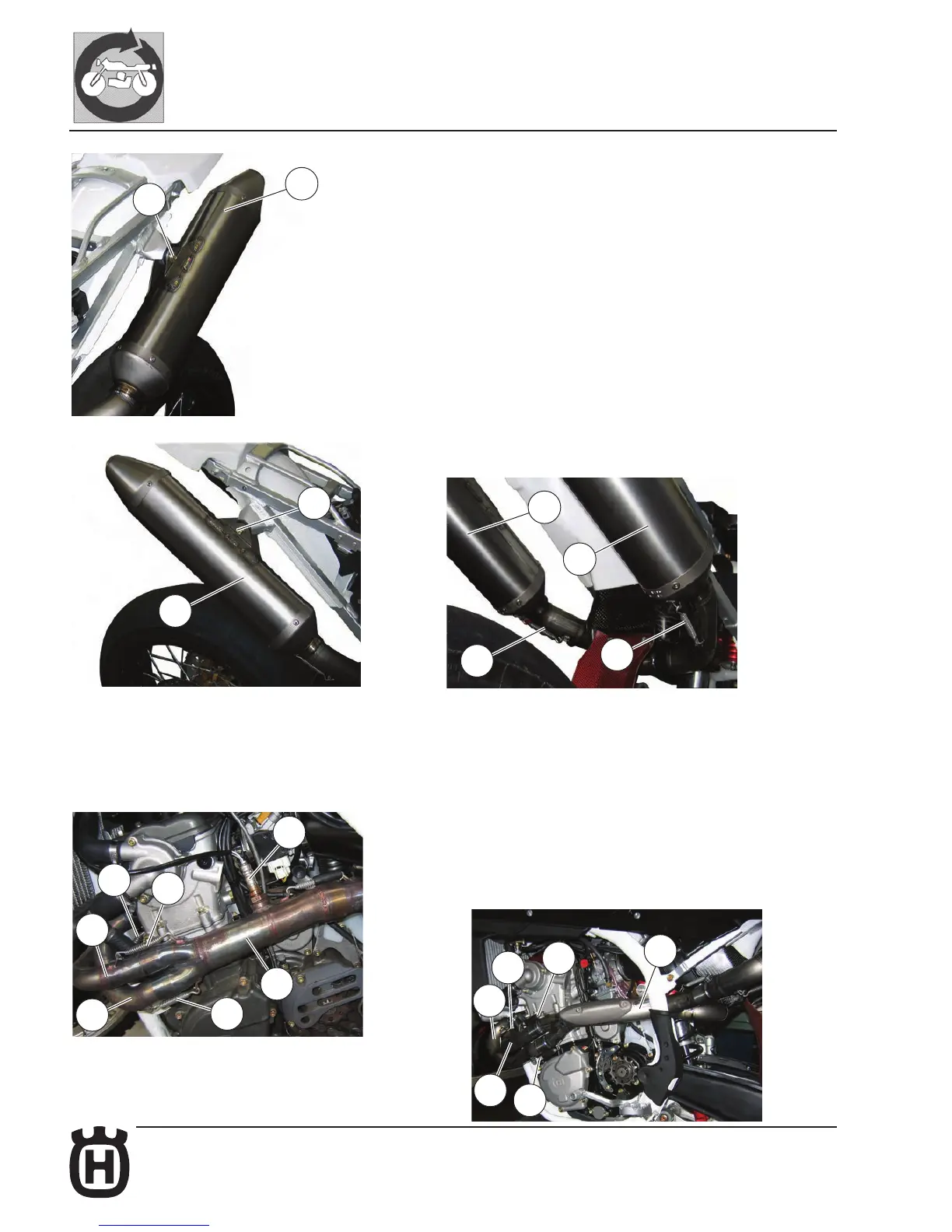

3) TE-SMR: remove the LAMBDA probe (A). Remove the intermediate pipe (8).
Remove the springs (9) and remove pipes (6) and (7) from the cylinder head by
gently hitting outward.
A
5
5
8
9
6
7
8
5
9
7
5
6
3) SMR: use an 8 mm T-wrench outside and a 10 mm T-wrench inside to remove
the fastening screw (1) of silencers (3) and (4). Remove the spring (2) and extract
silencers (3) and (4). Remove the springs (5) that retain front pipes (6) and (7) to
intermediate pipe (8).
1
3
1
4
3
2
4
2
