E.9Part. N. 8000 H0364 (09-2008)
GENERAL OPERATIONS

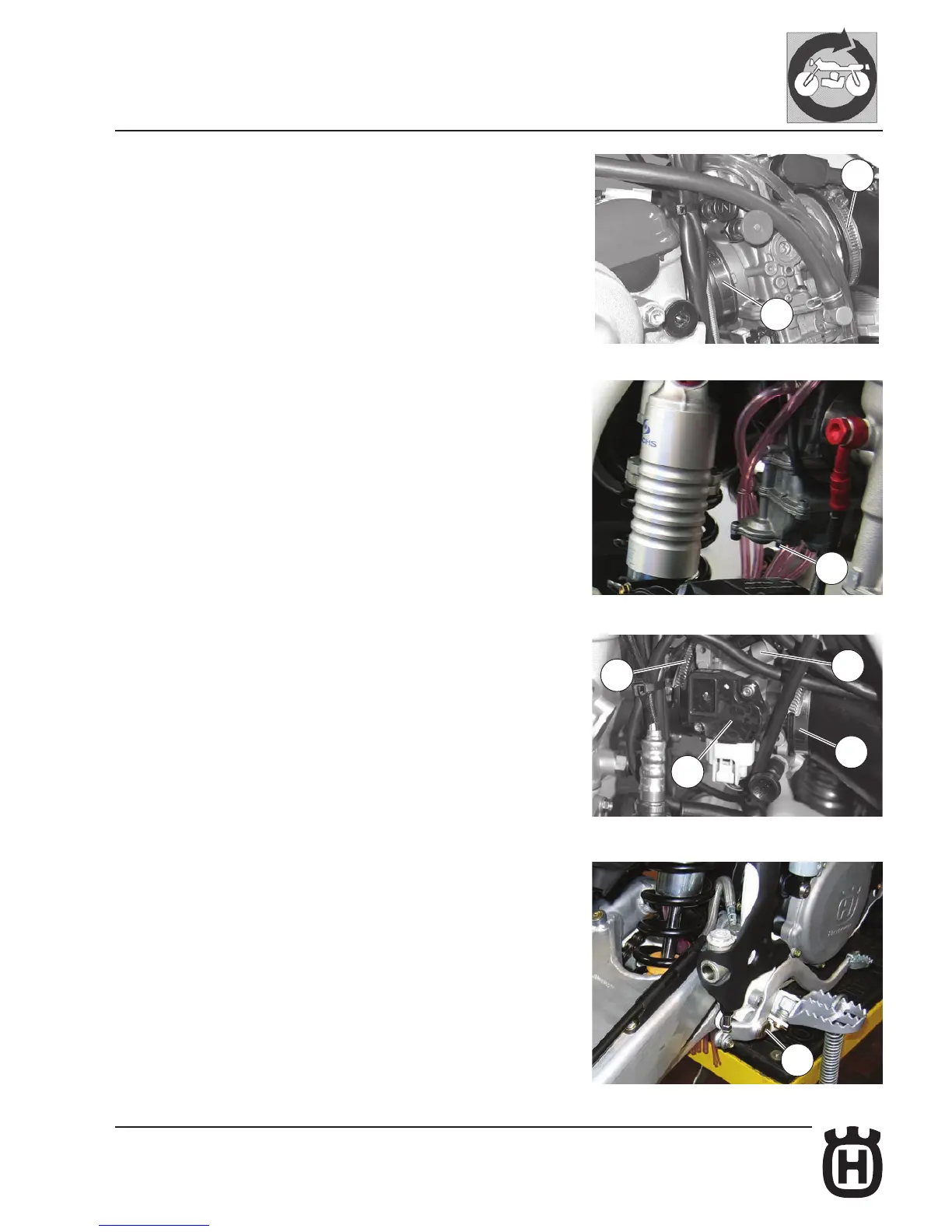

4) TC-TXC: Loosen the clamps (3) and (4) that fasten the carburetor to the
intake manifold and air filter box manifold. Pull back the carburetor to free it from
the intake manifold and extract the carburetor from the right side of the motorcy-
cle. Remove the carburetor floater chamber lower screw (5), the floater cham-
ber then eliminate the remaining gasoline.
4
Remove the fastening pin (8) and the rear brake pedal.
4) TE-SMR: loosen the left clamp (1) of the sleeve on the throttle body and the
front clamp (2) on the cylinder head. Disconnect the connector from the M.A.Q.S.
(6) on the throttle body of the main cable. Remove the throttle body (7); when
reassembly the throttle body, adjust the T.P.S. again (see chapter S).
1
2
3
7
6
5
8
