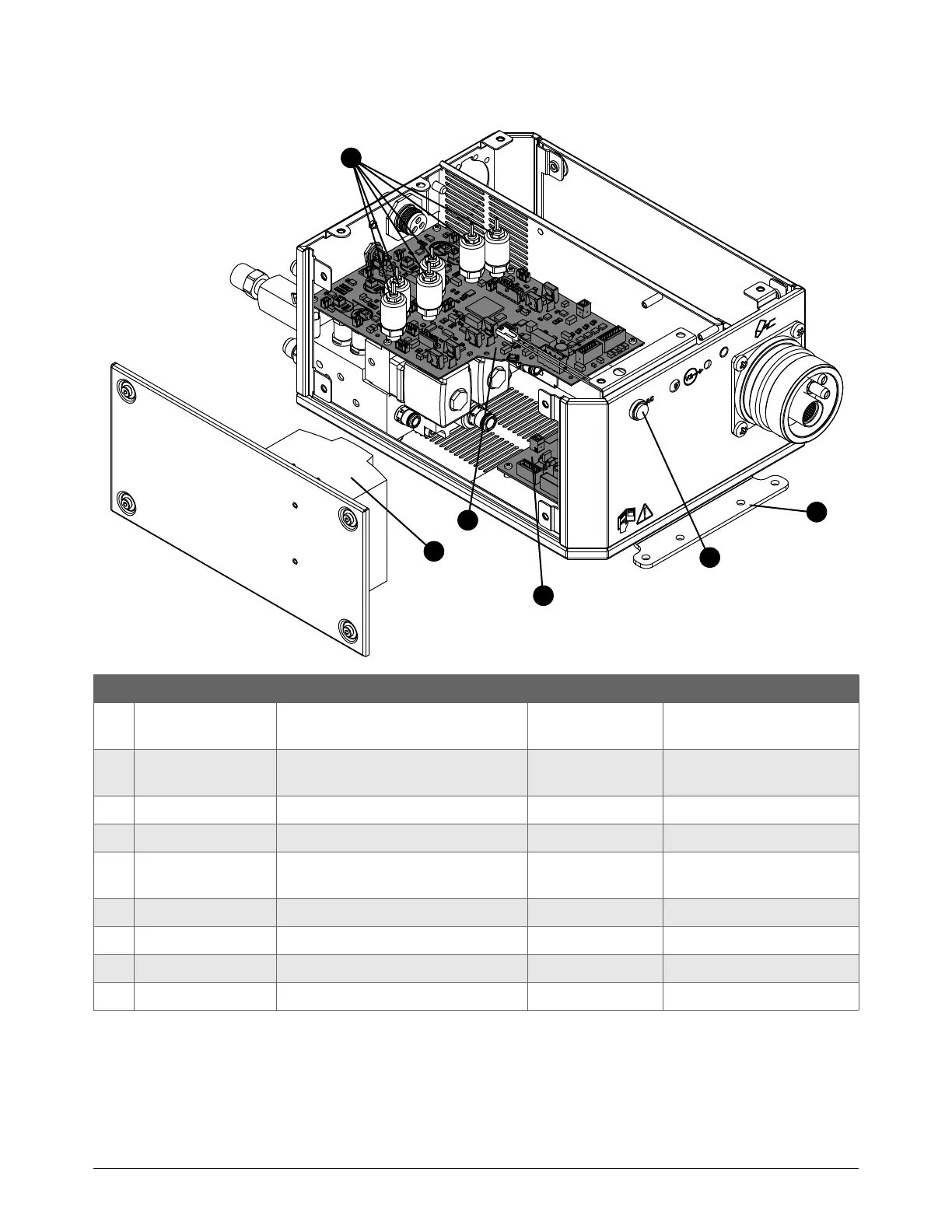

Parts List
9
XPR170 Instruction Manual 810060 383
Plasma power supply to gas connect console connections
Pilot arc lead with strain relief
Negative lead with strain relief
* Leads labeled with CCC mark only. CCC is defined in Symbols and marks on page 36.
Part number Length Part number Length
223529 3 m (9.8 feet) 223535 25 m (82 feet)
223530 4.5 m (14.8 feet) 223536 35 m (114.8 feet)
223531 7.5 m (24.6 feet) 223537 45 m (147.6 feet)
223532 10 m (32.8 feet) 223538 60 m (196.9 feet)
223533 15 m (49.2 feet) 223539 75 m (246.1 feet)
223534 20 m (65.6 feet) – –
Part number Type Length Part number Type Length
223584 1/0 3 m (9.8 feet) 223745* 1/0 3 m (9.8 feet)
223585 1/0 4.5 m (14.8 feet) 223746* 1/0 4.5m (14.8feet)
223586 1/0 7.5 m (24.6 feet) 223747* 1/0 7.5 m (24.6 feet)
223587 1/0 10 m (32.8 feet) 223748* 1/0 10 m (32.8 feet)
223588 1/0 15 m (49.2 feet) 223749* 1/0 15 m (49.2 feet)
223589 1/0 20 m (65.6 feet) 223750* 1/0 20 m (65.6 feet)
223590 1/0 25 m (82 feet) 223751* 1/0 25 m (82 feet)
223580 2/0 35 m (114.8 feet) 223558* 2/0 35 m (114.8 feet)
223581 2/0 45 m (147.6 feet) 223559* 2/0 45 m (147.6 feet)
223582 2/0 60 m (196.9 feet) 223560* 2/0 60 m (196.9 feet)
223583 2/0 75 m (246.1 feet) 223561* 2/0 75 m (246.1 feet)
