Parts List
9
XPR170 Instruction Manual 810060 387

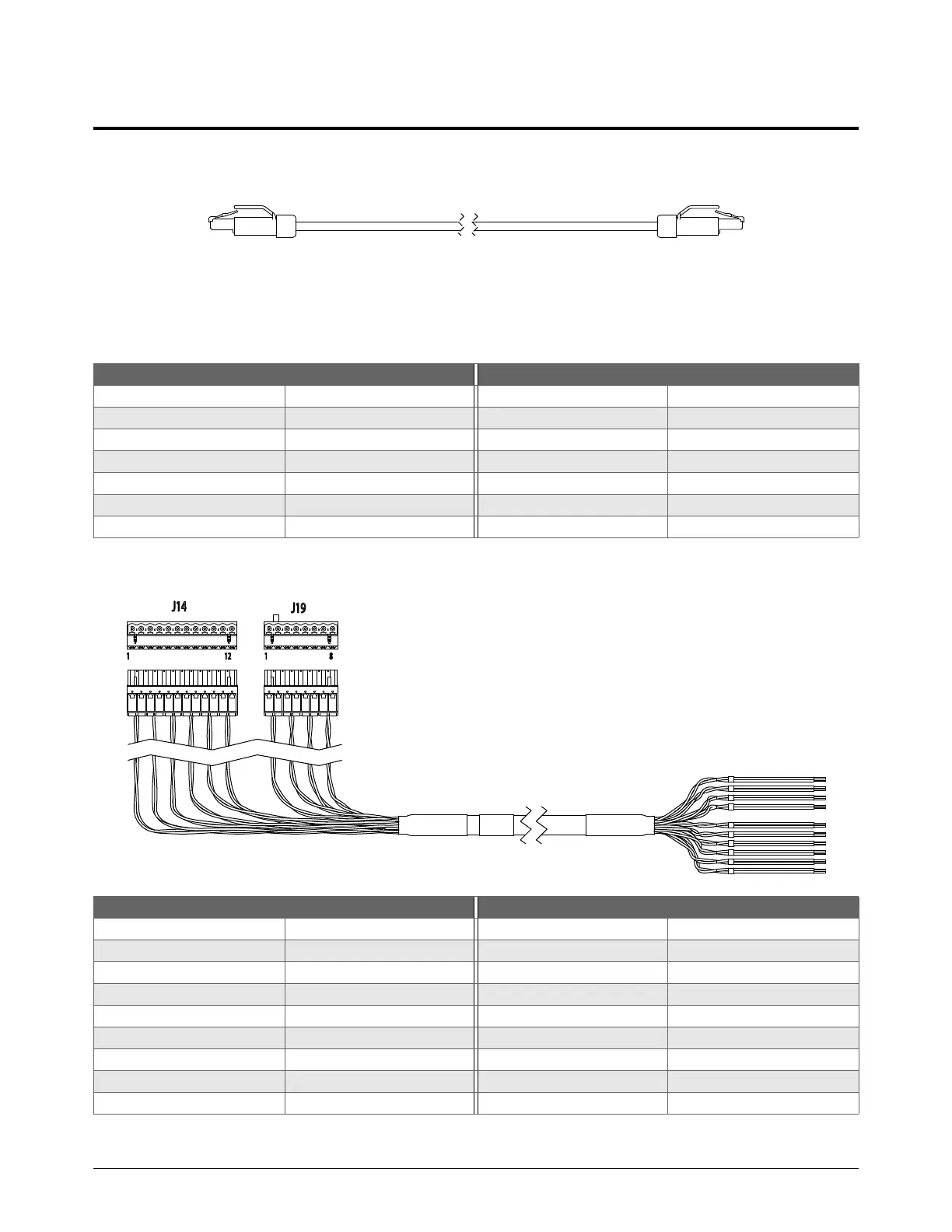

Plasma power supply to CNC connections
EtherCAT CNC interface cable
Description: RJ-45 connector, male-male, SF/UTP shield, 2 twisted pairs, 22 AWG
For more information on EtherCAT cable specifications, refer to How to connect to the plasma
power supply with EtherCAT on page 147.
Discrete CNC interface cable
Part number Length Part number Length
223506 0.3 m (1 foot) 223512 10 m (32.8 feet)
223507 0.6 m (2 feet) 223513 15 m (49.2 feet)
223508 1.5 m (4.9 feet) 223514 22.5 m (73.8 feet)
223672 2.5 m (8.2 feet) 223515 30 m (98.4 feet)
223509 3 m (9.8 feet) 223516 45 m (147.6 feet)
223510 6m (19.7feet) 223517 60 m (196.9 feet)
223511 7.5 m (24.6 feet) 223714 75 m (246.1 feet)
1 12 1 8
J14
J19
Part number Length Part number Length
223691 3 m (9.8 feet) 223700 20 m (65.6 feet)
223692 4.5 m (14.8 feet) 223701 22.5 m (73.8 feet)
223693 6 m (19.7 feet) 223702 25 m (82 feet)
223694 7.5m (24.6feet) 223703 30 m (98.4 feet)
223695 10 m (32.8 feet) 223704 35 m (114.8 feet)
223696 12 m (39.4 feet) 223705 37.5 m (123 feet)
223697 13.5 m (44.3 feet) 223706 45 m (147.6 feet)
223698 15 m (49.2 feet) 223707 60 m (196.9 feet)
223699 16.5 m (54.1 feet) 223708 75 m (246.1 feet)
