Parts List

398 809480 Instruction Manual XPR300

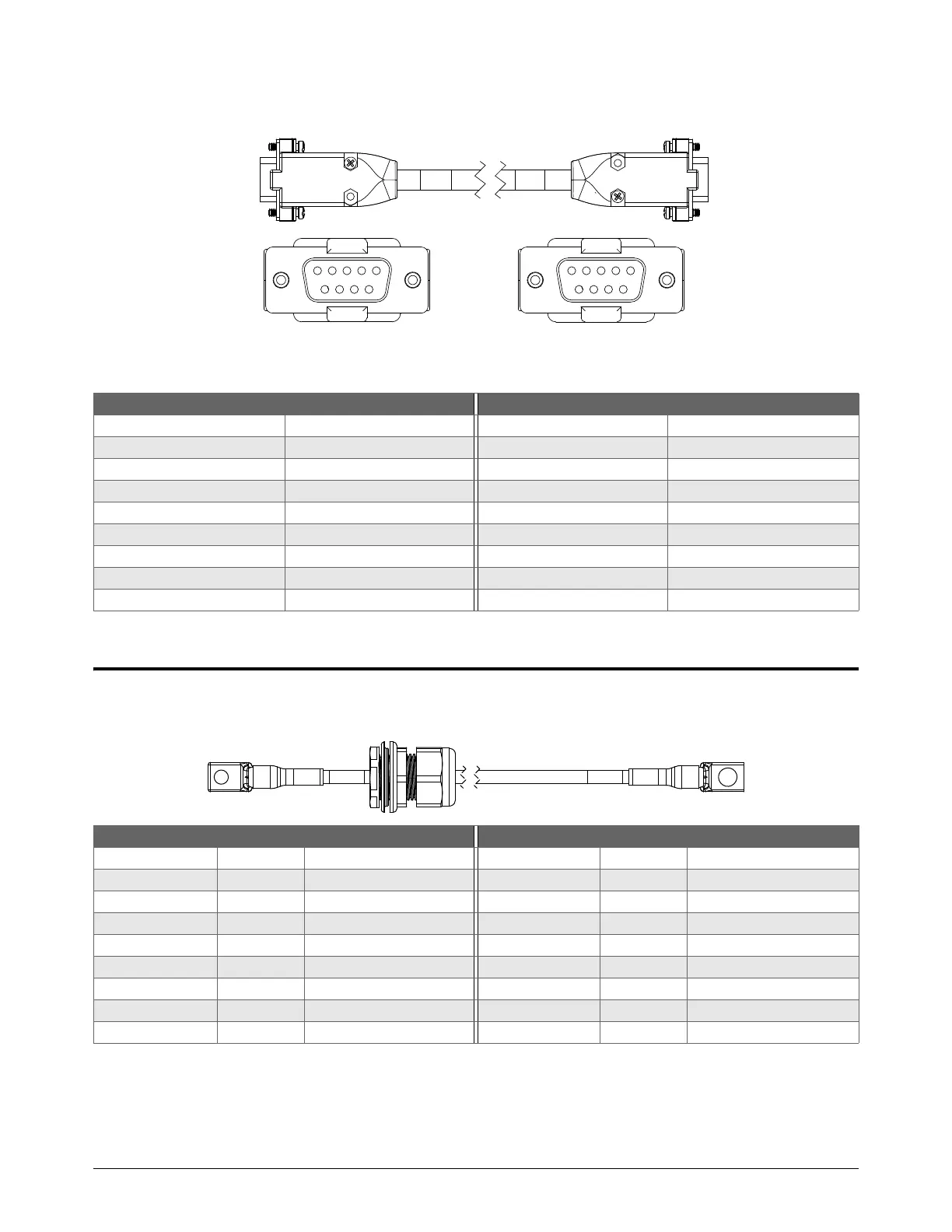

Serial CNC interface cable

Description: 9-position, D-subminiature (D-sub) connector, male-male, RS-422

Plasma power supply to cutting table connection

Work lead

* Leads labeled with CCC mark only. CCC is defined in Symbols and marks on page 36.

Part number Length Part number Length

223673 3 m (9.8 feet) 223682 20 m (65.6 feet)

223674 4.5 m (14.8 feet) 223683 22.5 m (73.8 feet)

223675 6 m (19.7 feet) 223684 25 m (82.0 feet)

223676 7.5m (24.6feet) 223685 30 m (98.4 feet)

223677 10 m (32.8 feet) 223686 35 m (114.8 feet)

223678 12 m (39.4 feet) 223687 37.5 m (123 feet)

223679 13.5 m (44.3 feet) 223688 45 m (147.6 feet)

223680 15 m (49.2 feet) 223689 60 m (196.9 feet)

223681 16.5 m (54.1 feet) 223690 75 m (246.1 feet)

Part number Type Length Part number Type Length

223628 2/0 3 m (9.8 feet) 223648 4/0 60 m (196.9 feet)

223629 2/0 4.5 m (14.8 feet) 223649 4/0 75 m (246.1 feet)

223630 2/0 7.5 m (24.6 feet) 223661* 2/0 3 m (9.8 feet)

223631 2/0 10 m (32.8 feet) 223662* 2/0 4.5 m (14.8 feet)

223632 2/0 15 m (49.2 feet) 223663* 2/0 7.5 m (24.6 feet)

223633 2/0 20 m (65.6 feet) 223664* 2/0 10 m (32.8 feet)

223634 2/0 25 m (82 feet) 223665* 2/0 15 m (49.2 feet)

223646 4/0 35 m (114.8 feet) 223666* 2/0 20 m (65.6 feet)

223647 4/0 45 m (147.6 feet) 223667* 2/0 25 m (82 feet)
