2.6 Installation of radial cylinder type
2-40
2. Installation

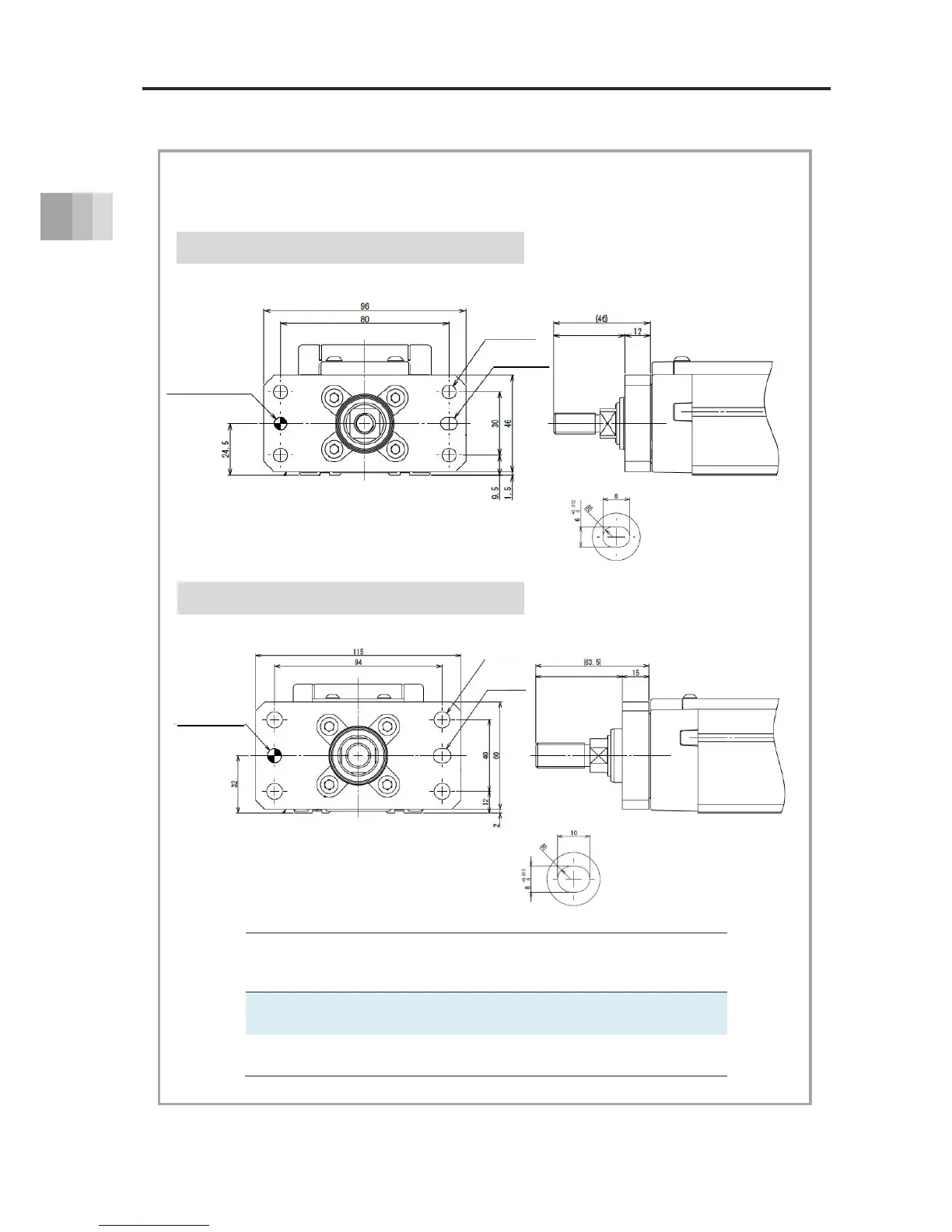

[When using flanges]
ELECYLINDERs can be mounted with flanges (option: model FL).
→ For precautions for mounting, refer to pages 2-41 to 42.
For EC-RR6 (Part model number EC-FL-RR6)
For EC-RR7 (Part model number EC-FL-RR7)
Type Material
Tightening torque when mounting
ELECYLINDER
EC-RR6
Iron
(unichrome)
3.42N･m
EC-RR7
Iron
(unichrome)
5.36N･m
φ8 H7 reamed
through
φ
6 H7 reamed throu
g
h
4-φ9 through
4-φ6 through
Oblong hole
through
34 (home position)
Oblong
hole through
48.5 (home position)
Details of oblong hole
Details of oblong hole
