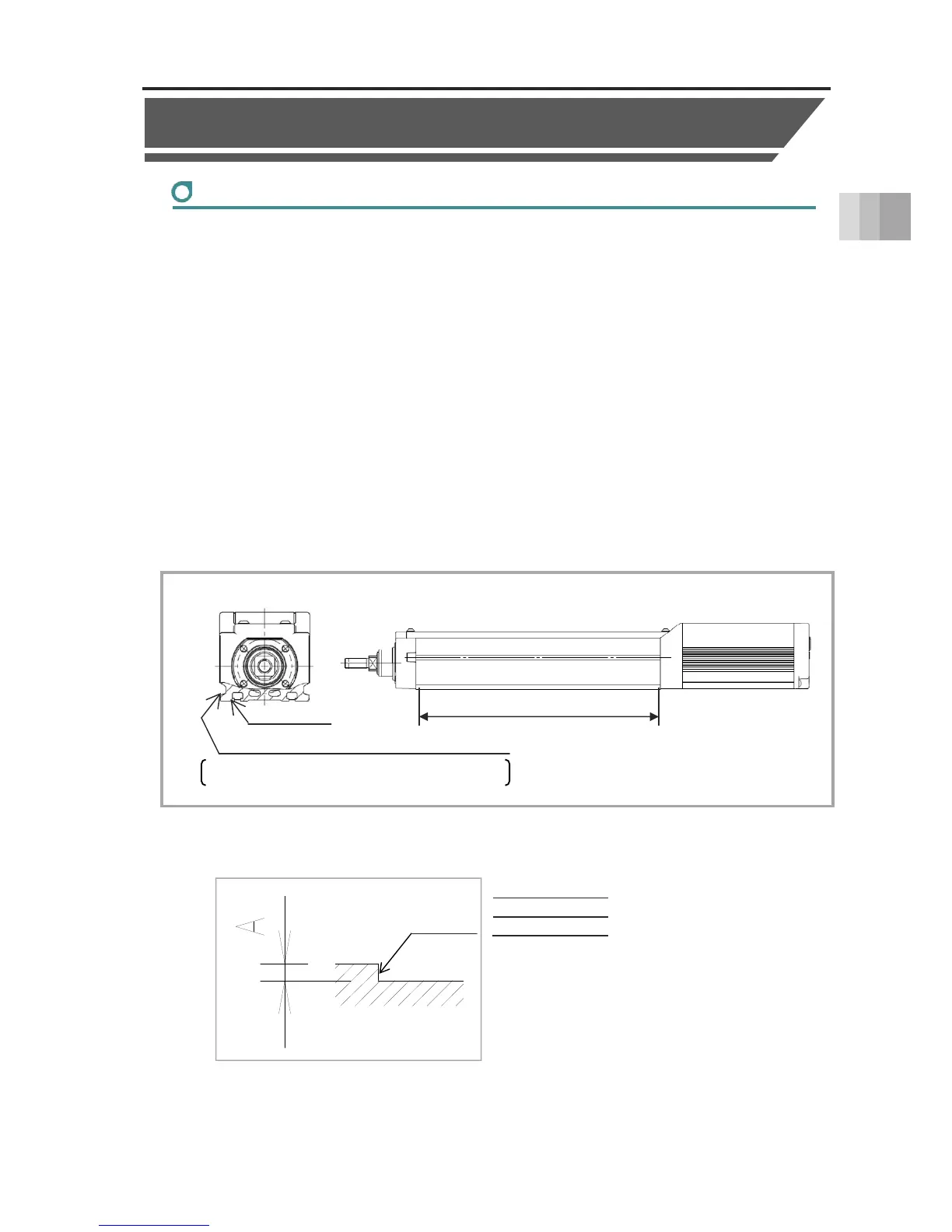

2.6 Installation of radial cylinder type
2-33
2. Installation
2.6 Installation of radial cylinder type
Installation surface
● The body mounting surface should be a machined surface or a plane with similar
accuracy, with flatness within 0.05mm/m.
● The mounting frame should have a structure rigid enough to prevent the generation
of vibration.
● Also consider the necessary space for maintenance work such as ELECYLINDER
replacement and inspection.
● The bottom surface and left side surface (viewed from motor opposite side) of the body base
serve as the reference surfaces for rod running. Use these surfaces as the reference surfaces
for mounting when running accuracy is required.
Use these surfaces as the reference surfaces for mounting when running
accuracy is required.
● When applying radial load/moment load, fix the entire surface of the base bottom.
Flange fixing may cause deflection or reflexion throughout the product due to radial
load/moment load, leading to vibration, shortened product life, or breakdown.
When mounting using the side reference surface, machine the installation surface according to
the figure below.
A dimension
2 to 4mm
Reference surface effective range
Base bottom
Side surface
When viewed from the opposite side of the motor,
the left side surface is the reference surface
R0.3 or less
