9.6 High rigidity radial cylinder type (EC-RR□□AH)
9-11
9. External Dimensions

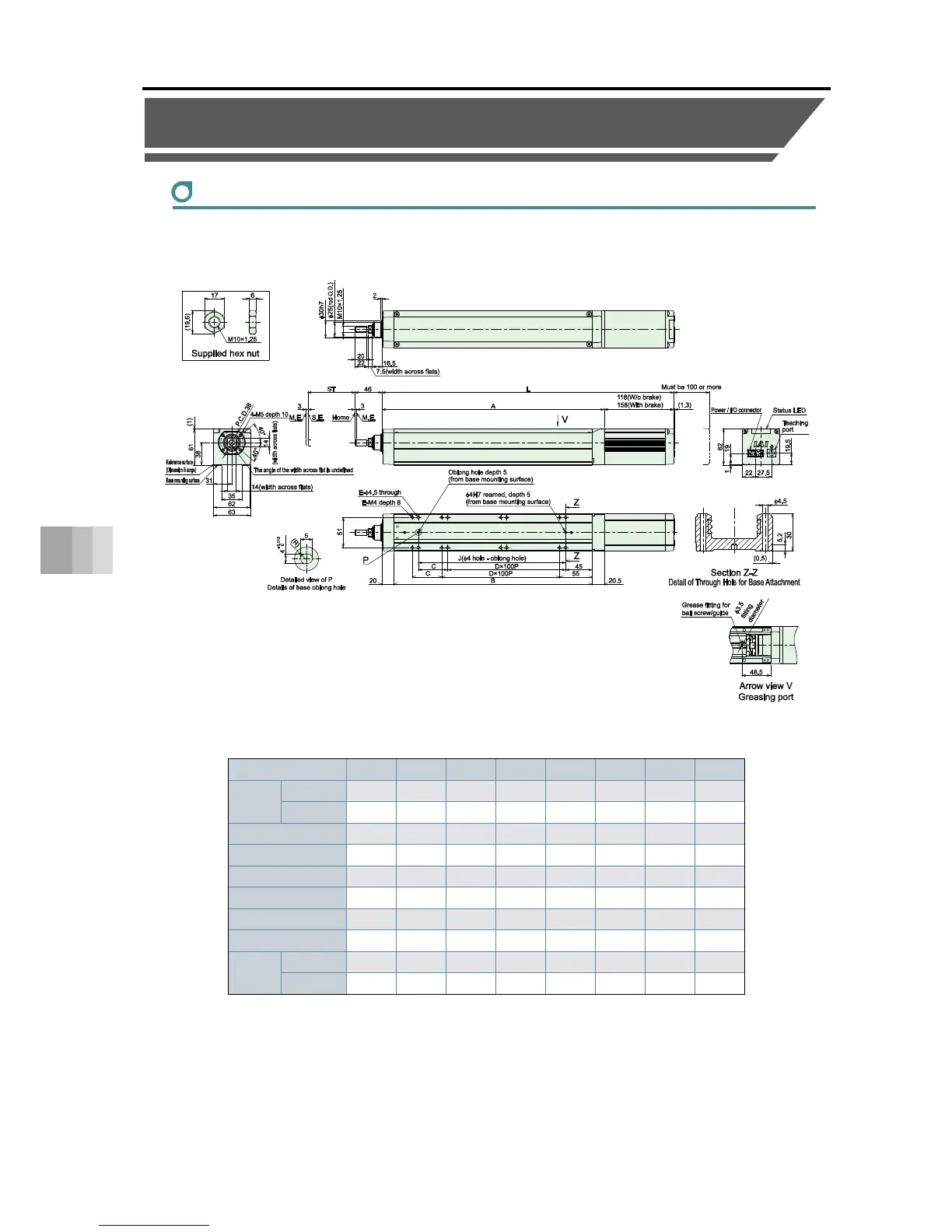

9.6 High rigidity radial cylinder type external dimensions (EC-RR□□AH)
EC-RR6□AH
M.E.: Mechanical end, S.E.: Stroke end
ST: Stroke
Stroke 50 100 150 200 250 300 350 400
L
W/o Brake 345 395 445 495 545 595 645 695
With Brake 385 435 485 535 585 635 685 735
A 227 277 327 377 427 477 527 577
B 186.5 236.5 286.5 336.5 386.5 436.5 486.5 536.5
C 0 50 0 50 0 50 0 50
D 1 1 2 2 3 3 4 4
E 4 6 6 8 8 10 10 12
J 100 150 200 250 300 350 400 450
Weight
(kg)
W/o Brake 2 2.2 2.5 2.8 3 3.3 3.6 3.8
With Brake 2.3 2.5 2.8 3.1 3.3 3.6 3.9 4.1
(Unit: mm)
■ Dimensions and Mass by Stroke
