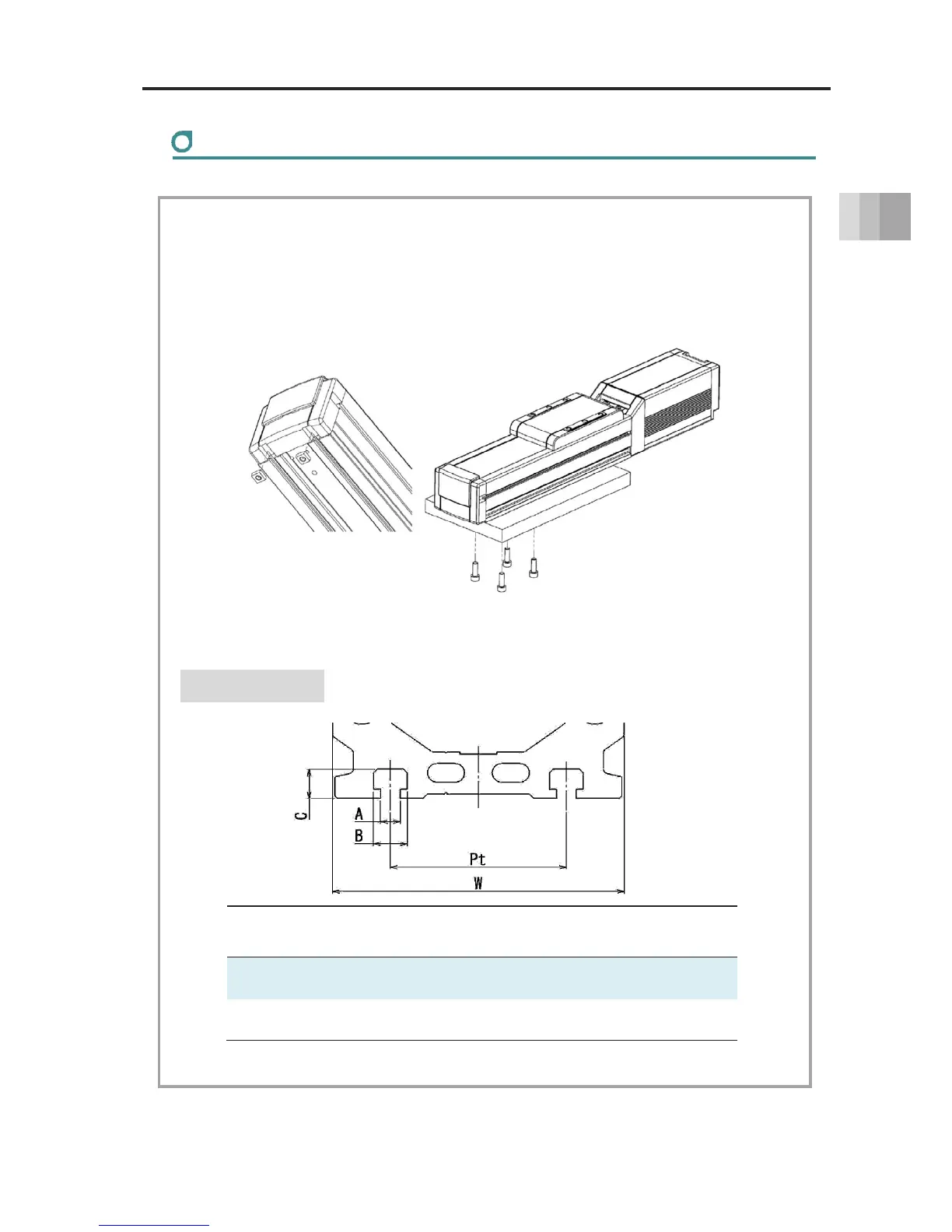

2.3 Installation of slider type
2-9
2. Installation
Body mounting
[When using the T-slot on the base bottom]
The unit has a T-slot at the bo
ttom of the base for mounting.
Insert a square nut into the T-
slot and fix it from the back.
→
For details regarding the
position and dimensions,
refer
to
"Chapter
9
External
Di
mensions".
T-slot dimensions
Ty
p
e
W
P
t
A B C
EC-S6
63mm
38mm
4.3mm
7.3mm
6.3mm
EC-R7
73mm
46mm
5.3mm 8.5mm 8.5mm
