3.4 Wiring connections (for connectors)
3-8
3. Wiring

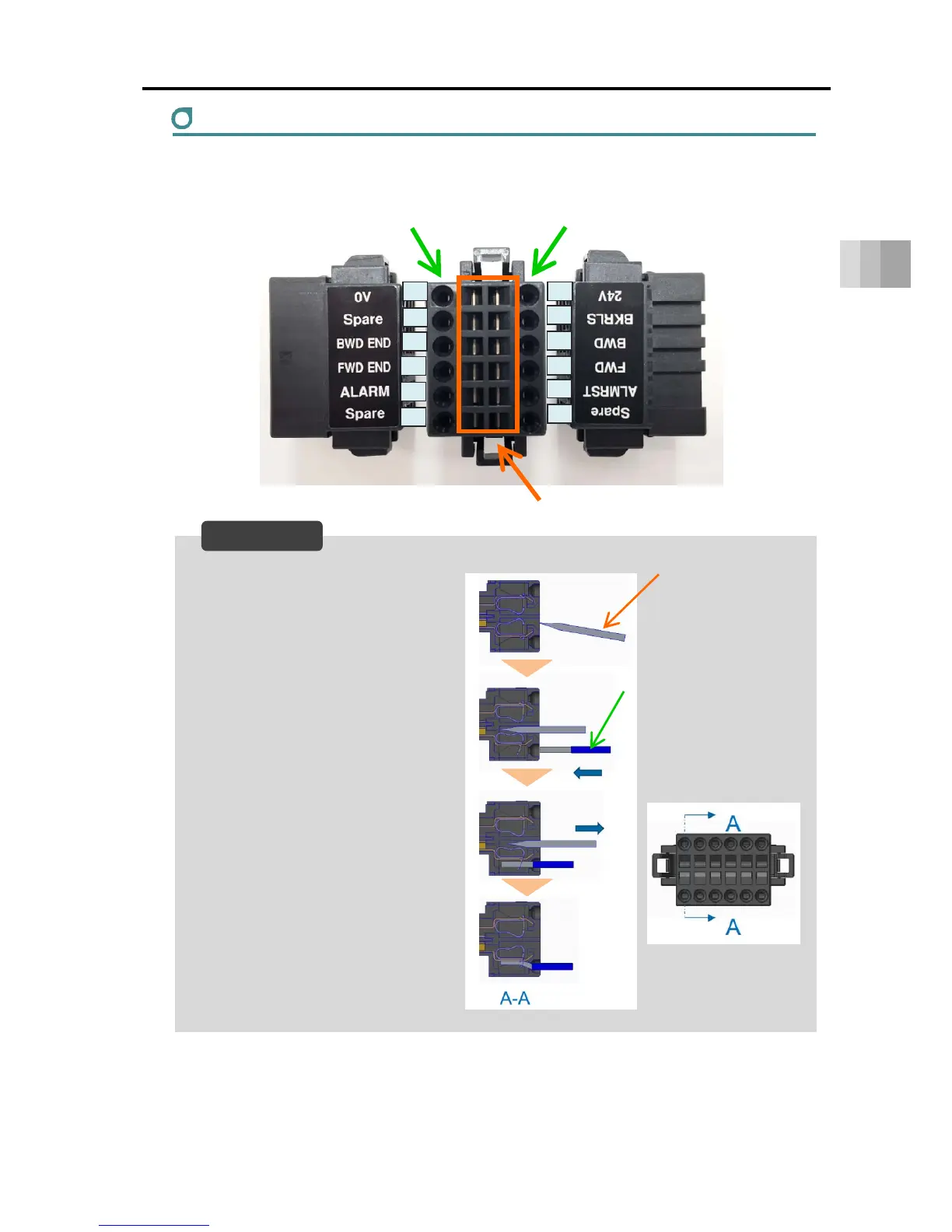

Connector wiring method
The name of each terminal is affixed to the power I/O connector.
The connector nameplate name and pin number relationship is as below.
Power I/O connector internal
structure looks like this.
Insert a precision screwdriver
fully into the tool insertion slot.
Press the spring within the
connector down, then insert the
core wire, slightly twisted.
Pulling out the precision
screwdriver causes the spring
within the connector to rebound,
clamping the core wire inserted
in place.
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
Tool insertion slot
Wiring inlet
Wiring inlet
Reference
Precision screwdriver
Wiring
