2.5 Installation of rod type
2-31
2. Installation
Mounting transported objects

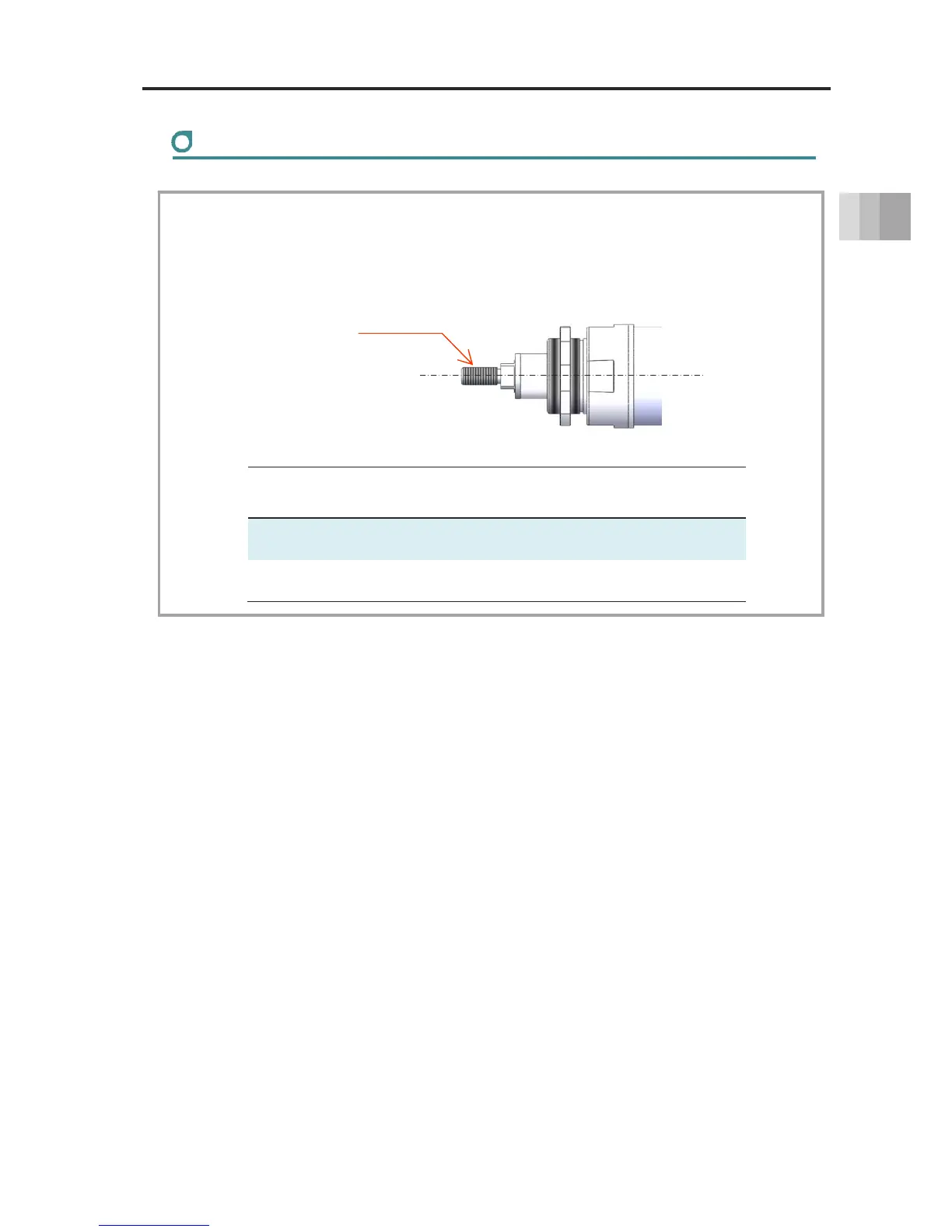

[When using the rod tip adapter male thread]
● Remove the male thread cap.
● Transported objects can be secured using the male thread of the rod tip adapter.
→ For precautions for mounting, refer to page 2-29.
Type
Male thread dimensions
Tightening
torque
EC-R6
M10 × 1.25, effective thread length
20.0mm
30.00N･m
EC-R7
M14 × 1.5, effective thread
length 27.5mm
35.00N･m
Male thread
