9.6 High rigidity radial cylinder type (EC-RR□□AH)
9-12

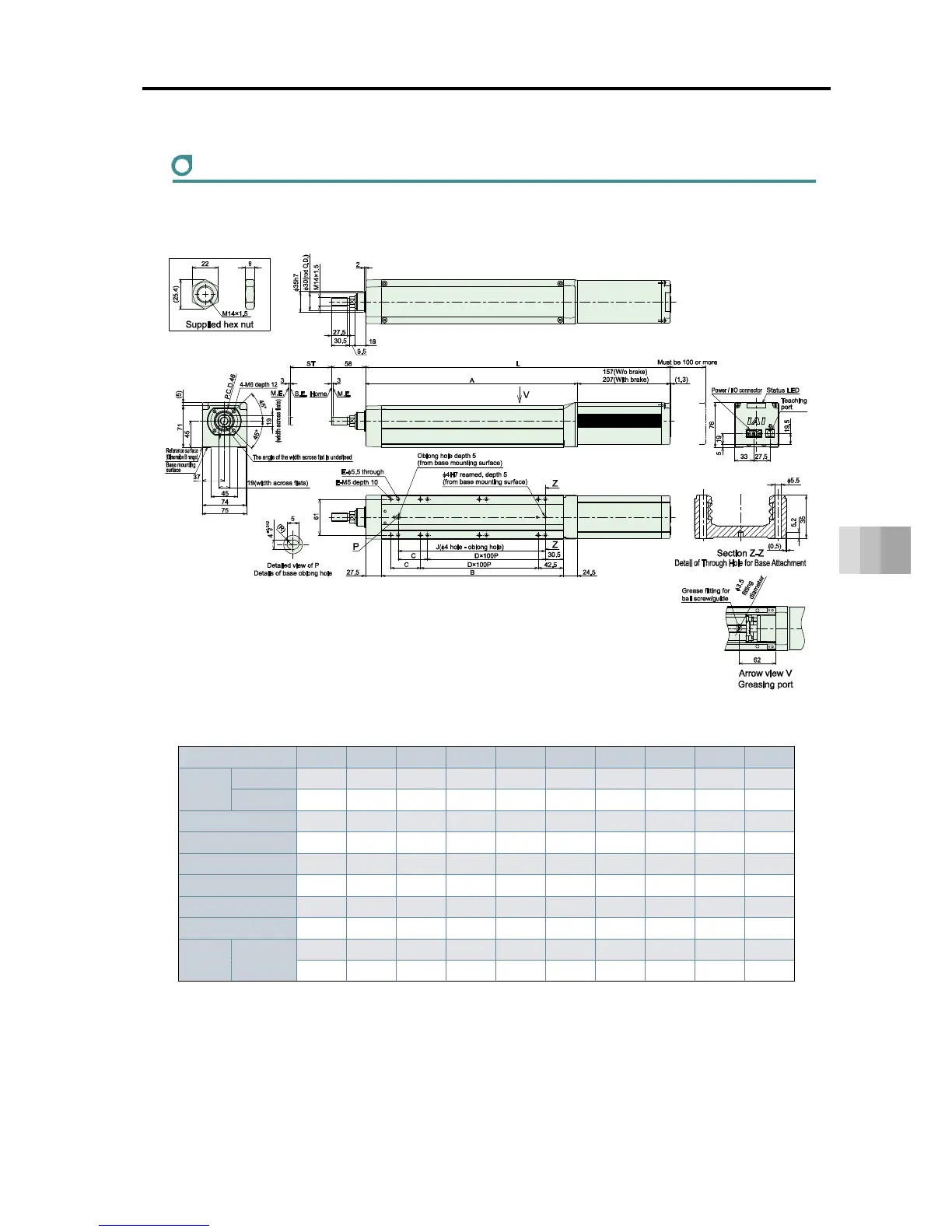

9. External Dimensions
EC-RR7□AH
M.E.: Mechanical end, S.E.: Stroke end
ST: Stroke
Stroke 50 100 150 200 250 300 350 400 450 500
L
W/o Brake 417.5 467.5 517.5 567.5 617.5 667.5 717.5 767.5 817.5 867.5
With Brake 467.5 517.5 567.5 617.5 667.5 717.5 767.5 817.5 867.5 917.5
A 260.5 310.5 360.5 410.5 460.5 510.5 560.5 610.5 660.5 710.5
B 208.5 258.5 308.5 358.5 408.5 458.5 508.5 558.5 608.5 658.5
C 50 0 50 0 50 0 50 0 50 0
D 1 2 2 3 3 4 4 5 5 6
E 6 6 8 8 10 10 12 12 14 14
J 150 200 250 300 350 400 450 500 550 600
Weight
(kg)
W/o Brake 4 4.4 4.7 5 5.4 5.7 6 6.4 6.7 7
With Brake 4.5 4.9 5.2 5.5 5.9 6.2 6.5 6.9 7.2 7.5
(Unit: mm)
■ Dimensions and Mass by Stroke
