IAI EC-S7 User Manual

2.3 Installation of slider type
2-10
2. Installation

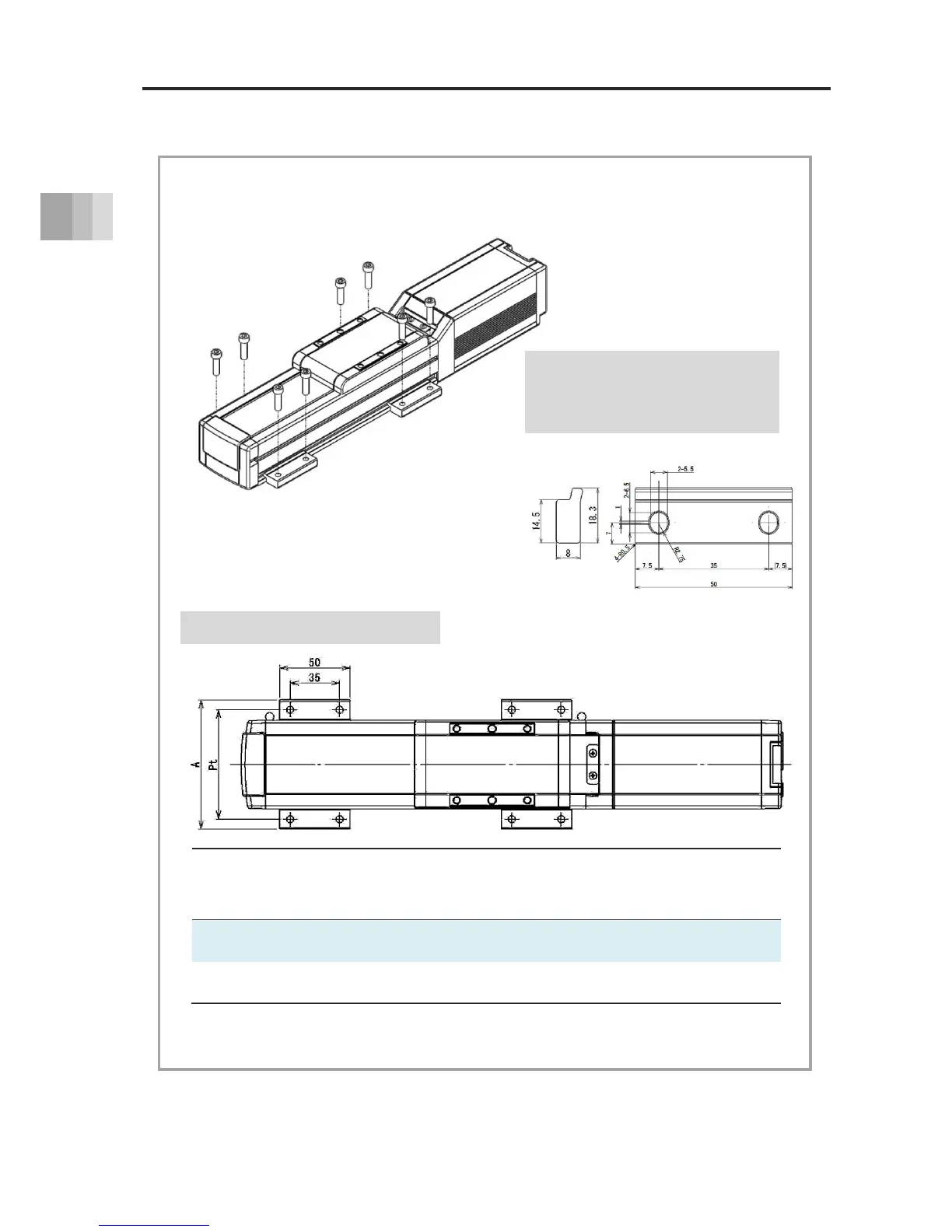

[When using foot brackets]
Mounting from the top is possible using foot brackets.
The groove on the side of the main body can be fixed from the top.
Foot bracket
(Part model number EC-FTSB,
4 pcs/set)
Foot bracket mounting dimensions
Type Pt A
Screw
size
Minimum
number of
brackets
Tightening
torque
EC-S6 78mm 92mm M5 4 locations
7.27N･m
EC-S7 88mm 102mm M5 4 locations
7.27N･m
