2.3 Installation of slider type
2-11
2. Installation
There are a reamed hole and an oblong hole for the positioning pins.
Use the reamed hole and oblong hole if mounting reproducibility after detachment is
required.
When fine adjustment of angles, etc. is required, consider using only the reamed hole.

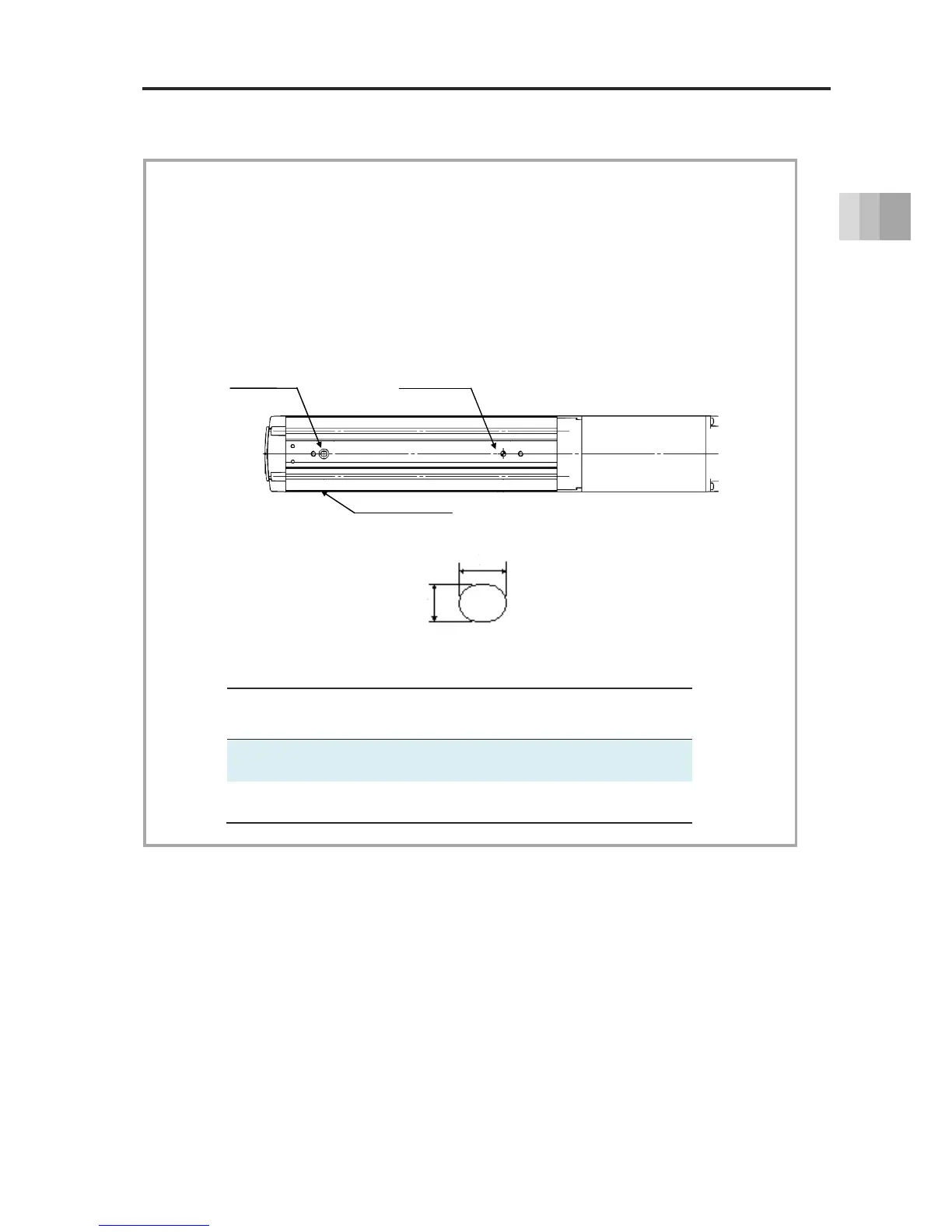

Reamed hole/oblong hole position dimensions
Type Reamed hole Oblong hole
EC-S6 φ4H7 depth 5
A: 4 B: 5 depth 5 mm or less
EC-S7 φ4H7 depth 5
A: 4 B: 5 depth 5 mm or less
+0.012
0
+0.012
0
A
B
Oblong hole
Oblong hole
Reamed hole
Reference surface
