2.6 Installation of radial cylinder type
2-48
2. Installation
● Knuckle joint (-NJ) mounting method and component dimensions
1. Pass the nut and knuckle joint through the rod tip male thread.
2. Adjust the knuckle joint position to the specified dimensions.
* Adjust the knuckle joint angle so as to operate smoothly, with no load applied
to the bracket or rod, when operating embedded in the equipment.

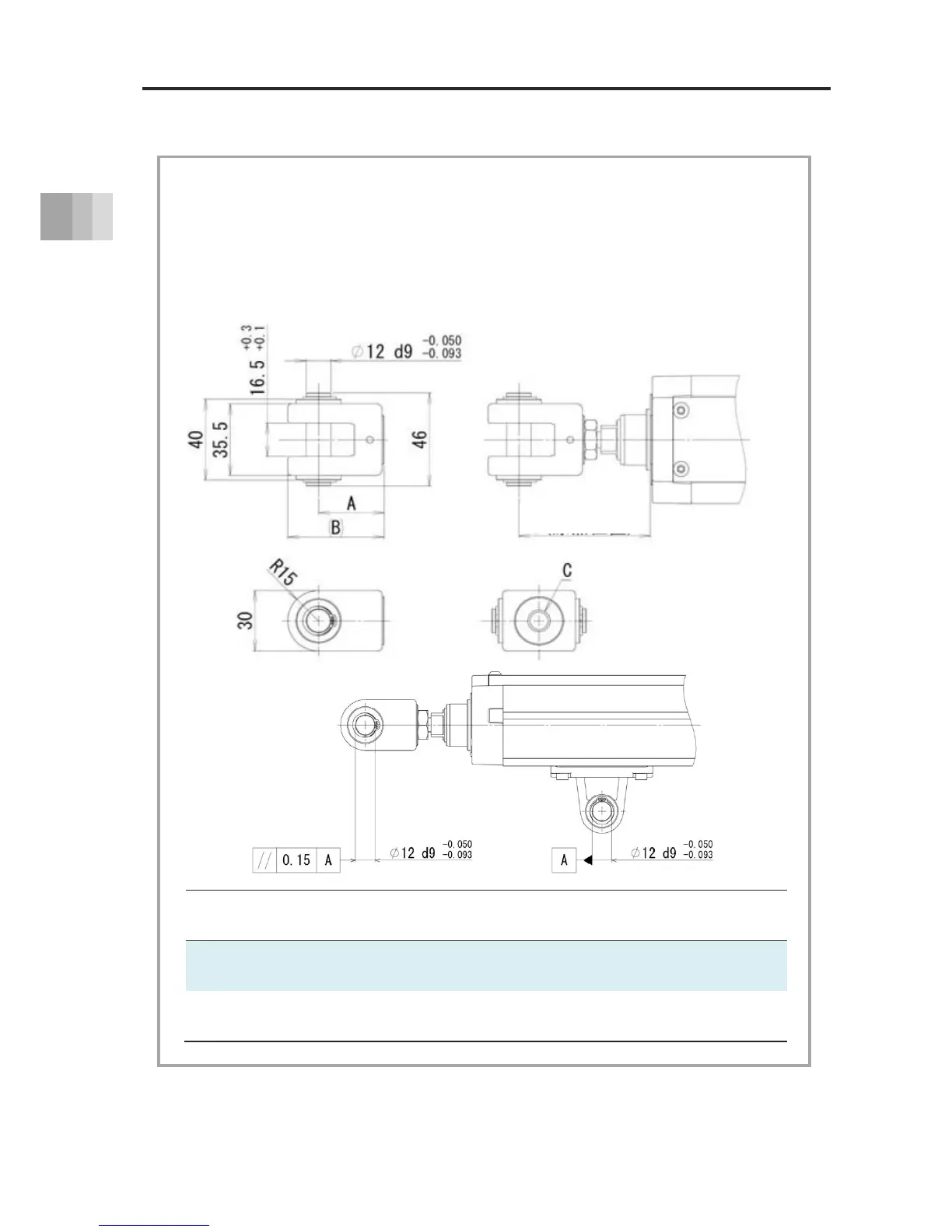

* Mount with the geometric tolerance in the figure below as a guideline.
3. Fix by tightening the nut so that load is not applied to the rod.
Type
A B C D
Nut tightening
torque
EC-RR6 32mm 47mm M10×1.25 64mm
30.00N･m
EC-RR7 37.5mm 52.5mm M14×1.5 81.5mm
35.00N･m
D (home position)
